Orion BMS JR2 w/CAN

The Orion BMS is the most popular digital battery management system currently available on the market.  Versatile, robust, and Made in the USA!  Whether you're an OEM, a college FSAE team or a DIY integrator, the Orion BMS has successfully been protecting lithium ion battery packs for over 10 years.

The Orion BMS Jr 2 is the latest release from Orion from their base model focused on the 48 Vdc energy storage market.  With the same feature sets as the larger Orion BMS O2 (over-voltage, under-voltage, over-current, over-temperature, under-temperature protection, passive cell balancing) but at a significantly reduced price, this is the perfect battery management system for your 48 Vdc application.

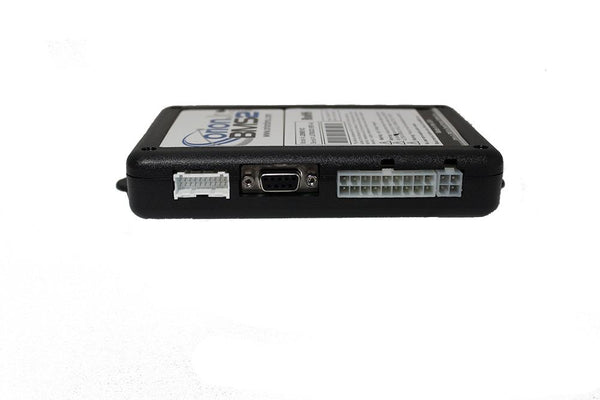

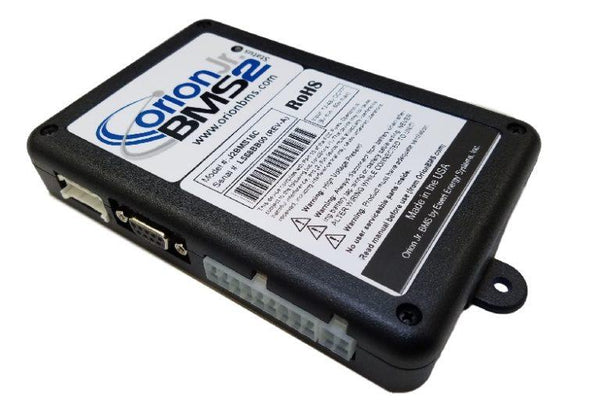

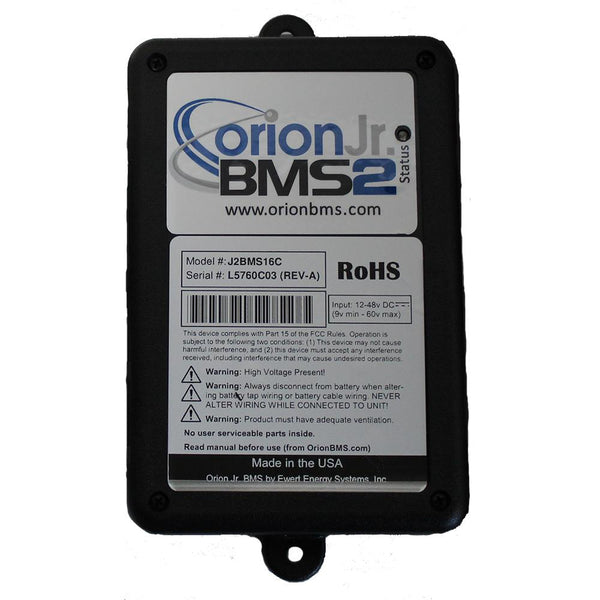

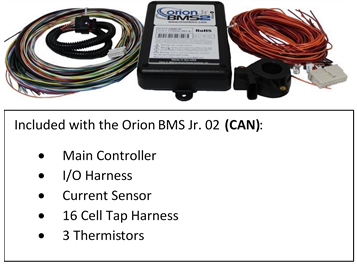

Included in the Orion BMS Jr. 02 (CAN) kit:

• (1) Main Controller
• (1) Input/Output Harness
• (1) Current Sensor
• (1) 16 Cell Tap Harness

• (1) Current Sensor Harness w/ 3 Thermistors

Introducing the new JR2 version of the Orion BMS JR!

• Significantly improved cell voltage measurement accuracy and resolution
• Expanded diagnostic capabilities
• Current sensor is now a Hall Effect style which provides superior accuracy and ease of installation.
• Supports from 1 to 16 cells in series

• Designed for Lithium Ion battery packs up to 48V nominal (60V max)

• Centralized design provides high EMI and noise immunity.

• Performs intelligent cell balancing (passive).

• Calculates state of charge (SOC).

• Calculates discharge current limit (DCL) and charge current limit (CCL).

• Can measure cell voltages between 0.5v and 5.0v.

• Optional CANBUS 2.0B interface (fully programmable)


Specifications

Supports from 1 to 16 cells in series
Designed for Lithium Ion battery packs up to 48V nominal (60V max)
Calculates state of charge (SOC).
Calculates discharge current limit (DCL) and charge current limit (CCL).
Optional CANBUS 2.0B interface (fully programmable).
OBD2 diagnostic protocol support.

VIEW SPECIFICATIONS SHEET
VIEW WIRING AND INSTALLATION MANUAL
Troubleshooting Manual (HTML)
BMS Jr. Software Utility Manual (HTML)
Operation Manual
Mechanical Drawing
Troubleshooting
FAQ
Application Notes

The Orion BMS also has some very useful add on accessories that can save you time and money while programming or in the field:

•SOC Display with Data Logging -- Connects to the BMS via CAN providing parameters to a memory card at a user designated frequency from 100mS to 10 seconds
•Cell Wiring Validator -- Checks the cell tap wiring harnesses to ensure they are wired properly before pluggin them into the system.
•Thermistor Expansion Module -- Allows up to 80 additional thermistors to the system via CAN. If needed, up to 10 Thermistor Expansion Modules can be used together allowing up to 800 thermistors to be used in a system.
•Orion BMS Connect -- An internet based remote monitoring system that allows the user to monitor battery packs via PC/MAC, smartphone, or tablet. It provides instant data, charts of recent history, and diagnostic information including recent events, fault codes, and freeze frame data all on a webpage!
•RS-232 USB Adapter -- Allows connection between the BMS to a computer.
