HPEVS AC-20 Motor Kit

Regular price $3,304.00
Unit price  per

Click here to learn more about our Engineering Consultations today!

Description


The brushless HPEVS AC-20 is the 1 1/2" longer derivative of the AC-9 Motors. On a 96 volt / 650 amp system, this impressive little motor is producing 65 horsepower with 82 ft-lbs of torque from a package that weighs about 60 pounds! Its perfect for golf cars, motorcycles, utility vehicles, hydraulic pumps, and many other industrial applications.

This kit includes:

HPEVS AC20 Motor

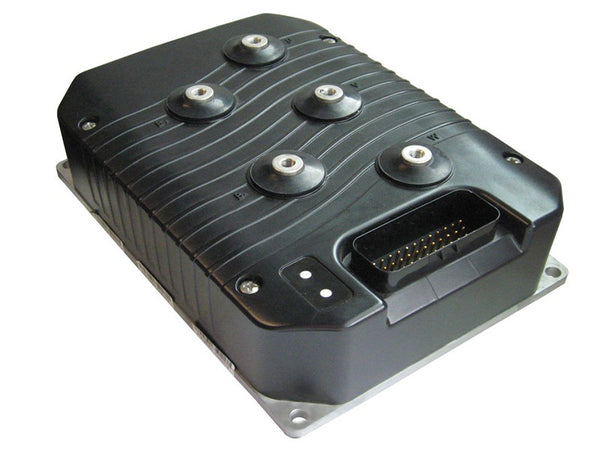

Curtis 1236SE-56211 Controller
35 Pin Connector and Wire Harness
12 Volt HV Relay
Curtis 840 Dash Gauge
SPST Menu Button
SPST Mode Switch

  48 Volt 72 Volt 96 Volt
Motor Face: C-Face C-Face B-Face
Motor Diameter:  6.940" 7.132" 8.980"
Motor Case Length:  11.35" 10.988" 12.80"
Motor Shaft Length End to End:  11.35" N/A with Back Plate 14.8"
Motor Type:  AC Induction AC Induction Brushless AC Induction Brushless
Weight:
27kg/ 60lbs
22.7kg/ 50lbs 38.5kg/ 85 lbs
Max Voltage Input:  60 80 80
Terminal Stud Size:  3/8" 5/16" 5/16"
Integrated Sensors:  Encoder Encoder and Temperature Encoder and Temperature
Rated Torque:  82 LB FT
86 LB FT 108 LB FT
Rated Power:  35 HP 37 HP 48HP
Continuous RPM:  5,000
Max RPM:  10,000 10,000 10,000
RPM Sensor:  No Yes Yes
Drive End Shaft:  7/8" with 3/16" Keyway 7/8" with 3/16" Keyway 1 1/8" with 1/4" Keyway
Max Efficiency:
88%
92% 92%
Thermal Cooling:  Internal Fan Internal Fan Internal Fan
Max Temperature:  356 Degrees Fahrenheit (180 Degrees Celsius)  356 Degrees Fahrenheit (180 Degrees Celsius)  356 Degrees Fahrenheit (180 Degrees Celsius)


Mounting Options

C-Face Adaptor (AC 20/23-03.27)
NEMA C-Face endplate 7/8" shaft w/ 3/16" keyway on drive end. This motor is our best-selling motor for motorcycles. This motor can also be used in go-carts, ATV's and as a hydraulic pump motor.
AC 2X-03.27 Page 1
AC 2X-03.27 Page 2

Mining Vehicle Motor 10 Spline (AC 20/23-04.01)
C-Face drive end 3/4" Shaft w/ 3/16" keyway on the brake end. This version of the AC 20/ AC 23 motor is used in the mining industry. It bolts up to a Dana differential with a 10 spline coupler.
AC 20/23-04.01 Page 1
AC 20/23-04.01 Page 2

Hydraulic Pump Motor (AC 20/23-06.56)
SAE "A" Pump Adaptor w/ SAE coupler integrated mounting plate. This motor is designed with an SAE-A mounting face so that a hydraulic pump can be mounted. The AC-23 version of this motor has a higher torque rating.
AC 20/23-06.56 Page 1
AC 20/23-06.56 Page 2
AC 20/23-06.56 Page 3

10 Spline (AC 20/23-07.51)
Club Car Specific Motor 10 Spline coupler with Graziano Golf car style adaptor. This motor is made for both the golf car industry and the utility vehicle industry. This motor attaches to a Graziano differential.
AC 20/23-07.51 Page 1
AC 20/23-07.51 Page 2

19 Spline (AC 20/23-07.52)
19 Spline Coupler with Graziano Style Adaptor. This motor was made for both the golf car industry and the utility vehicle industry. The motor can attach to a Graziano differential.
AC 2X-07.52 Page 1
AC 2X-07.52 Page 2

19 Spline (AC 20/23-08.52)
Dana or Team Industries Differential. Can be used in Yamaha, E-Z-GO, Columbia, and Tomberlin golf carts. This motor is made for both the gold car industry and the utility vehicle industry. The motor can attach to a Team/ Dana differential.
AC 2X-08.52 Page 1
AC 2X-08.52 Page 2
