HPEVS AC-35 Motor Kit

Regular price $4,364.00
Unit price  per

Description:

The brushless HPEVS AC-35 electric motor is a great middle ground between the AC-9 and AC-50. This mid sized motor can produce up to 63 horsepower and 129 ft-lbs of torque at 96 volts / 650 amps from a package that weighs about 85 pounds! Its perfect for ground support vehicles, motorcycles, utility vehicles, hydraulic pumps, and many other industrial applications.

The kit includes:

  • Motor

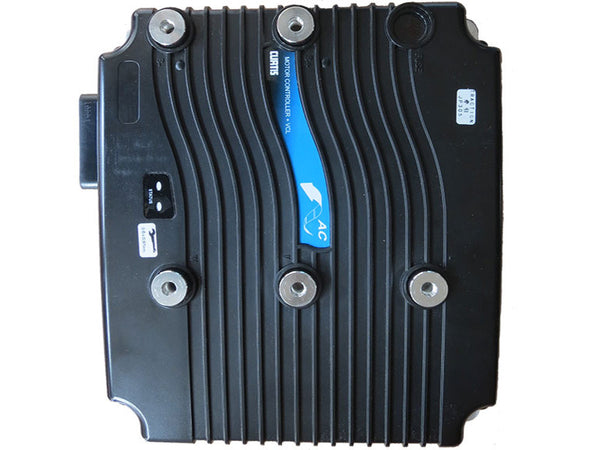

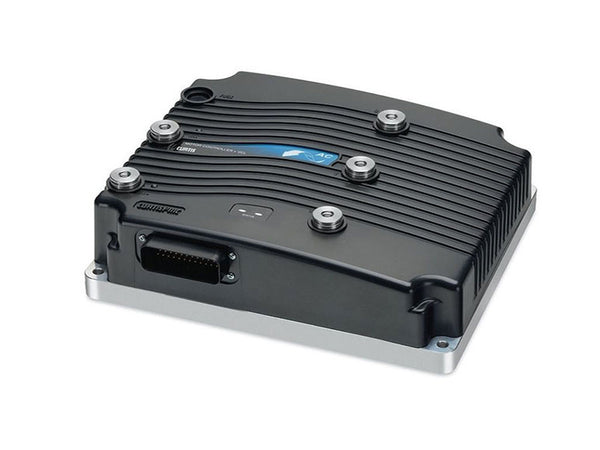

  • Curtis Controller
  • Wiring Harness
  • Display Unit
  • Gigavac Contactor

    144 Volt:
 Motor Face:  B-Face
Motor Diameter:  8.980"
Motor Case Length:  12.8"
Motor Shaft Length End to End:  17.5"
Motor Type:  AC Induction
Brushes:  No
Interpoles: No
Weight:  115 lbs, 52 kg
Max Voltage Input:  164
Terminal Stud Size:  3/8"
Integrated Sensor:  Encoder
Rated Torque:  94 Lb Ft
Rated Power:  82 HP
Continuos RPM:  5,000
Max RPM:  10,000
RPM Sensor:  No
Drive End Shaft:  1 1/8" with 1/4" Keyway
Timing:  N/A
Max Efficiency:  88%
Thermal Cooling:  Internal Fan
Max Temperature:

356 Degrees Fahrenheit
180 Degrees Celsius

Matching Controller Included In Price:

Curtis Controller

Warranty Period:

2 Years



Controller Options are:
