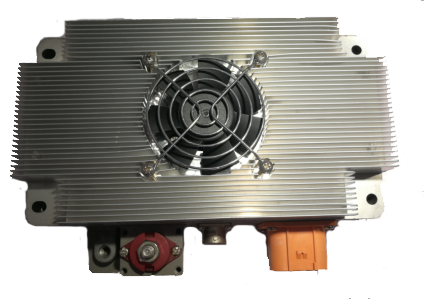

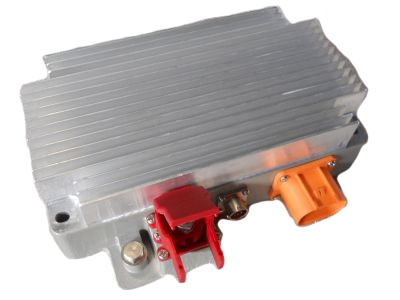

1500W IP67 Sealed DC-DC Converter

Regular price $593.33
Unit price  per

** Subject to manufacturer's availability, PLEASE INQUIRE FOR CURRENT LEAD TIME.**

-Can be mounted on electric vehicles to provide 12V/24V low voltage DC power
-Output can be attached to a 12V/24V backup battery which the converter automatically manages the battery's charge
-Fully-sealed Waterproof/Dustproof Case

Input Specifications

Model TDC-320-12

-Input Voltage: DC320V
-Input Current: 5A
-Input Maximum: ≤9A
-Input V: 220-450V
-Minimum V: 215V±5V
-Maximum V: 455V±5V
-Start Time: ≈0.9S @ VIN=320V

Model TDC-540-12

-Input Voltage: DC540V
-Input Current: 2A
-Input Maximum: ≤3A
-Input V: 420-650V
-Minimum V: 400V±5V
-Maximum V: 660V±10V
-Start Time: ≈0.6S @ VIN=540V

Output Specifications

Model TDC-320-12

-Output V: 13.8V±1%
-Current: 110A
-Peak: 135A-140A
-Power: 1500W
-Peak W: 1800W 6 minutes
-Efficiency: ≥95%
-Transient: ≤50ms
-Voltage Reg: 1%
-Load Reg: 1%
-Accuracy: ≤1%
-Steady Flow: ≤2%
-0 Leakage: ≤5mA
-0 Ripple: ≤276mV @ 12V ≤552mV @ 24V
-Over V Prot: 15-16V @ 12V 29-30V @ 24V

Model TDC-540-12

-Output V: 13.8V±1%
-Current: 70A
-Peak: 70A-75A
-Power: 1000W
-Peak W: 1000W
-Efficiency: ≥95%
-Transient: ≤50ms
-Voltage Reg: 1%
-Load Reg: 1%
-Accuracy: ≤1%
-Steady Flow: ≤2%
-0 Leakage: ≤5mA
-0 Ripple: ≤276mV @ 12V ≤552mV @ 24V
-Over V Prot: 15-16V @ 12V 29-30V @ 24V
