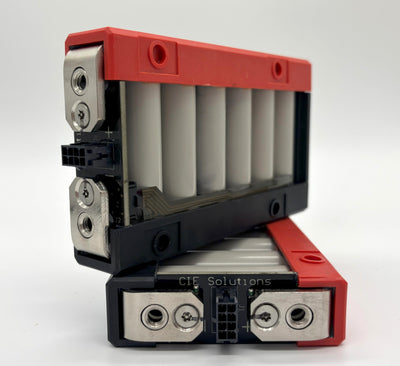

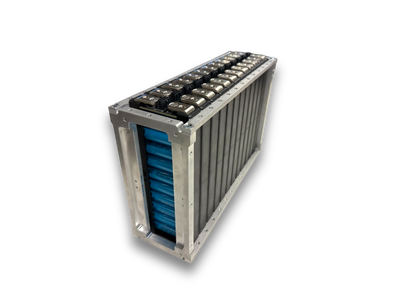

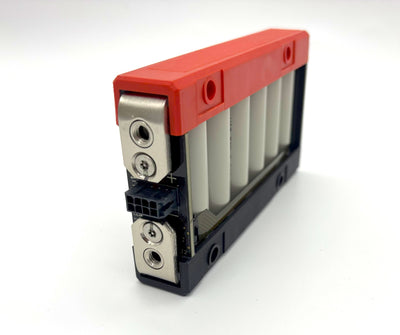

Lithium Block™ GEN 2 Module
CIE Solutions' versatile Lithium Block™ lithium-ion battery module just got an upgrade!

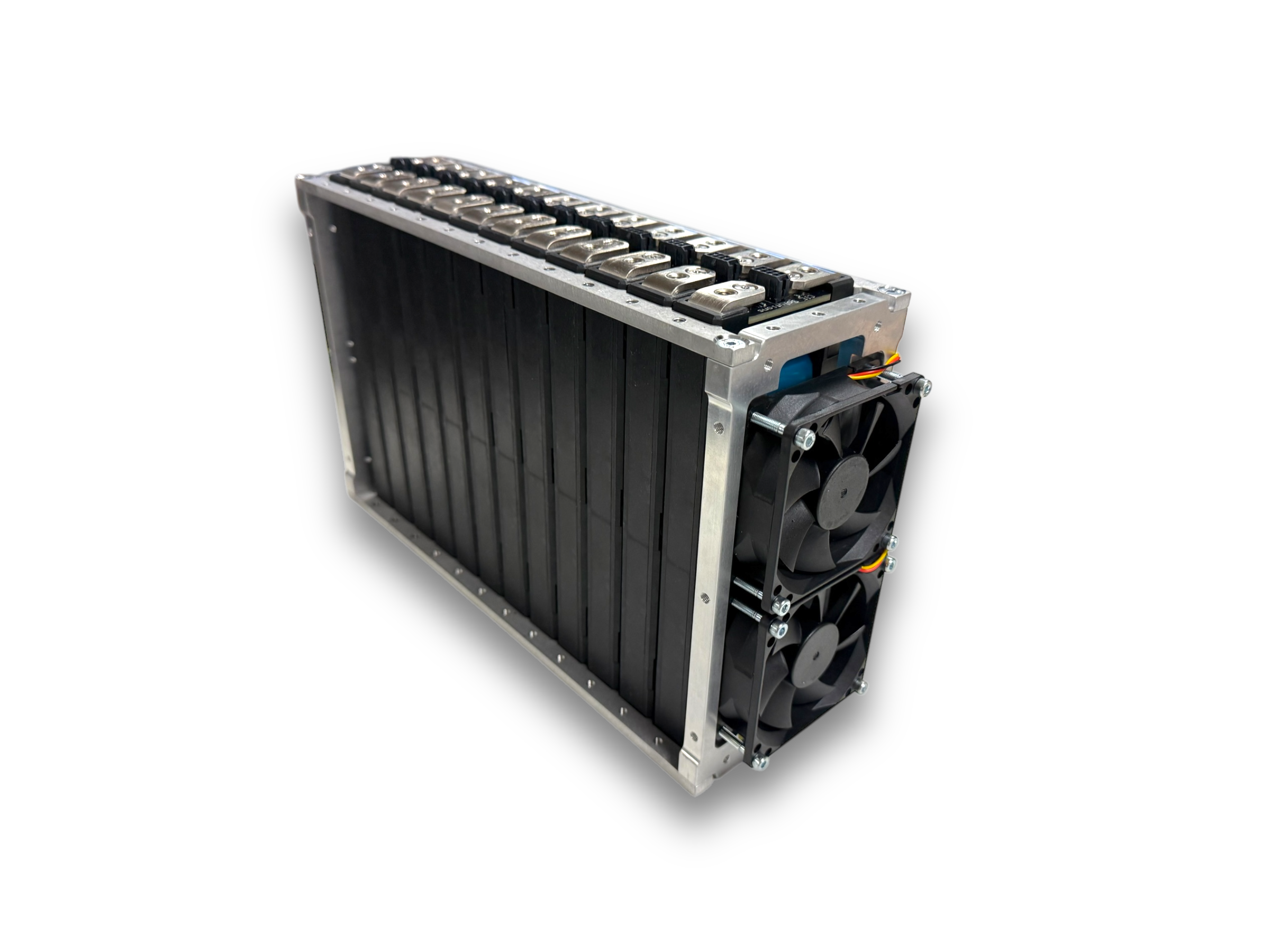

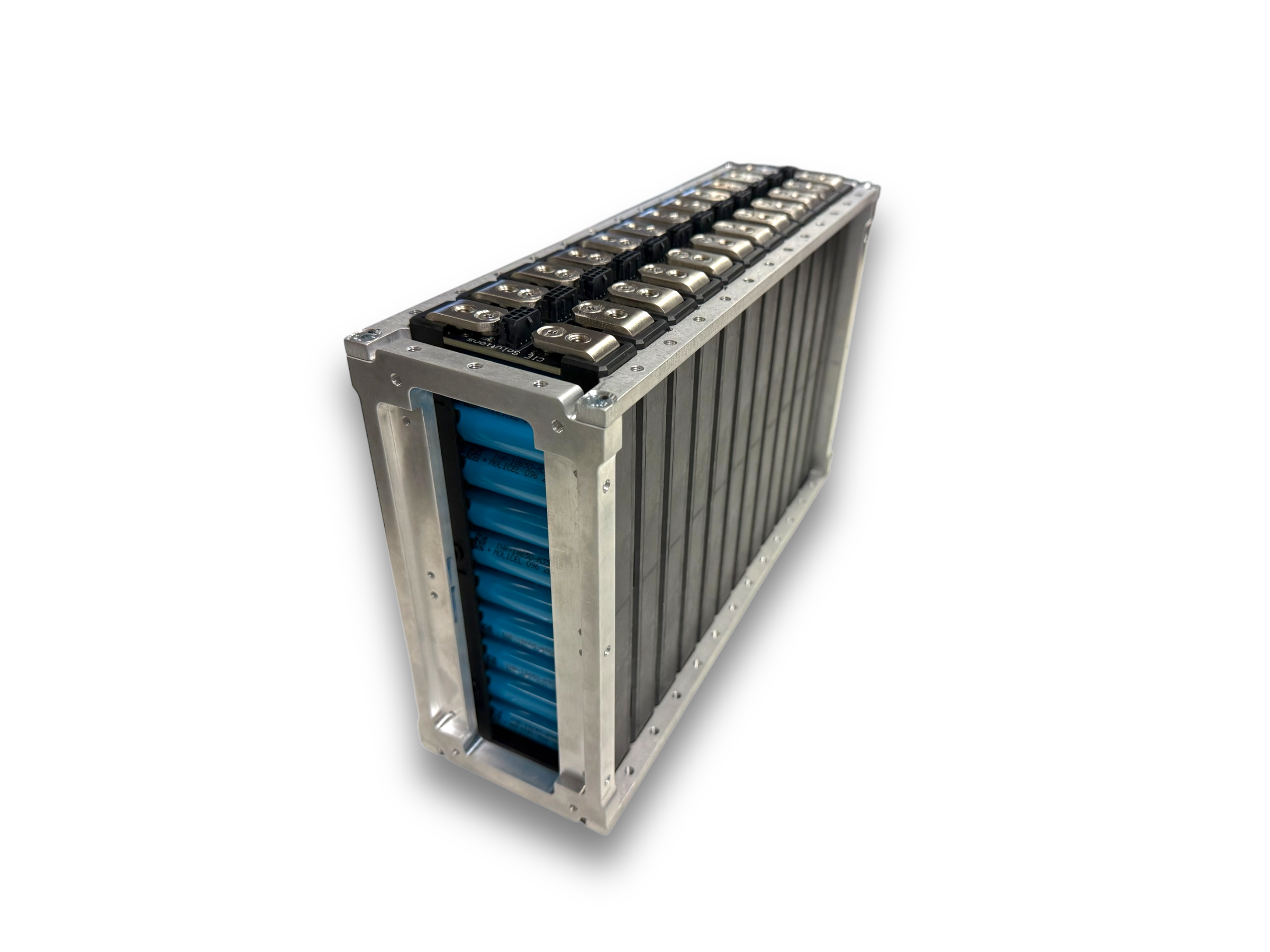

The Lithium Block GEN2 takes the popular air-cooled lithium-ion battery module and and makes it that much better.
- Includes connectorized cell voltage and temperature monitoring on a flex cable directly against the cells for precise data reporting.
- Resettable fuses on the voltage sense circuit to ensure operational reliability.

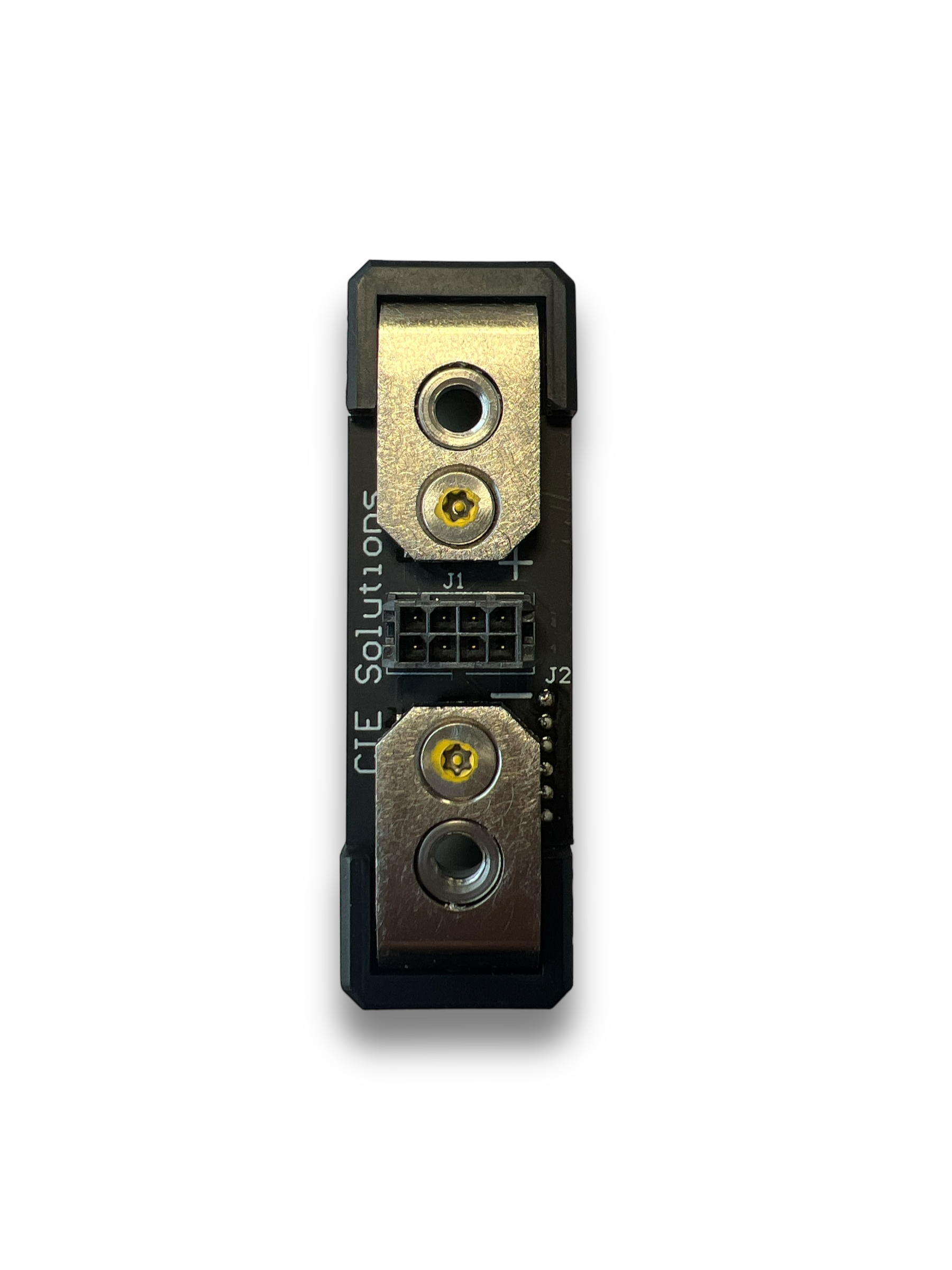

- Includes bus bar mounting inserts for easy and secure installation.
- Available energy capacities range from 17.5Ah to 35Ah, with maximum discharge currents reaching up to 210A (Power Module), making it suitable for both high-power and high-energy applications.
- Available in configurations from 5p to 10p, offering scalable energy capacity from 52Wh to 125Wh.
- Plastic housing is construced of glass-filled UL94-V0 ABS which helps protect against propogation in the event of a fire.
 |
Proudly operating in Longmont, Colorado, CIE Solutions has been building custom lithium ion battery packs for over 10 years! |
 |
Ground shipping is free anywhere in continental USA. |
 |
We're committed to earning your business. If you find a better price on a comparable product, we’ll not only match it, we’ll beat it! |
|
|
Lithium Block™ Spec Sheet |
|
|
STEP Files:5P - 6P - 7P - 8P - 9P - 10P |
Couldn't load pickup availability
Pickup available at Offices
Usually ready in 24 hoursPairs well with
Lithium Block™ GEN 2 Module
