Hyper 9 IS Motor Kit
Hyper 9 IS Motor Kit
Hyper 9 IS Motor Kit

Hyper 9 IS Motor Kit

Regular price $4,600.00
Unit price  per

Click here to learn more about our Engineering Consultations today!

**PLEASE CALL FOR CURRENT LEAD TIME

Description

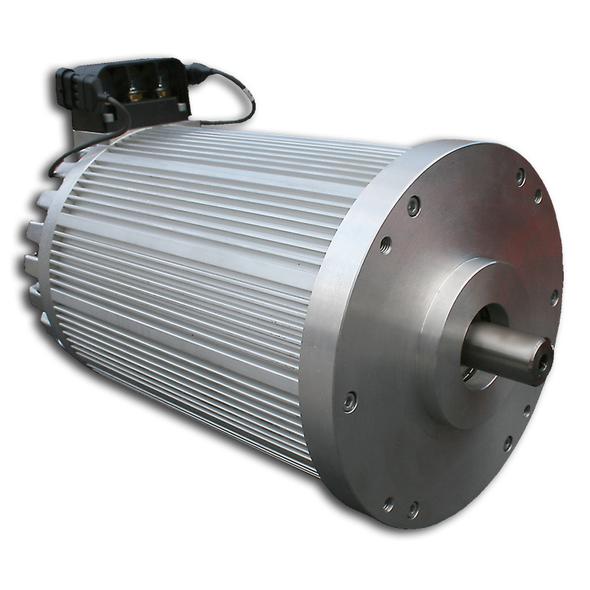

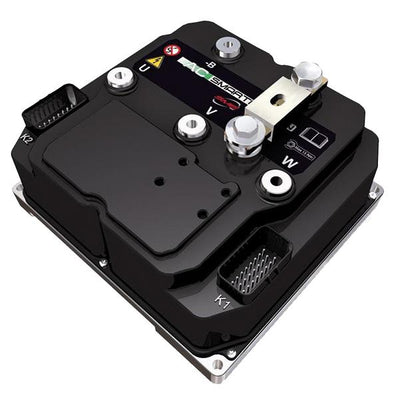

The HyPer 9 IS is a Brushless AC motor system that is the ideal power-train for any light to mid-weight EV Conversion delivering class-leading torque, efficiency, and reliability.  The HyPer 9 IS  includes the brushless HyPer 9 Motor, HyPer-Drive X1 Controller/inverter, LV wire harness, and GV200QA contactor. The HyPer 9 operates at a 100V nominal, using 750 Amps, weighs approximately 120lbs, and delivers an impressive 173ft-lbs of torque at 0 RPM. This is a 3 Phase AC, Synchronous Reluctance Internal Permanent Magnet Motor (SRIPM). It requires a matching Synchronous X1 Controller/Inverter for power.

**Compact Display and Throttle Sold Separately.

Features:

  • Industry Leading 3 Phase SRIPM Motor and Controller/Inverter
  • DC supply voltage from 62V to 130V, and currents up to 750A Peak
  • Brushless Motor
  • Cageless Rotor - Higher efficiency, no heat from wasted energy
  • Synchronous Fields - Full toque is harnessed without Rotor Slip
  • Up to 95% Efficiency!
  • Up to 50% higher torque than similar-sized AC Induction motors running at the same power levels!
  • Astounding performance in field weakening area with +50% power up to 5 times the nominal speed
  • Ultra-compact controller
  • Field Oriented Control (FOC) algorithm optimized specifically for Synchronous Reluctance Internatl Permanent Magnet motors
  • Fully customizable controller I/O
  • Extensive program customization from PC with Smartview Software
  • Robust and Reliable

The Drive End (DE) shaft is 1.125" in diameter with a 1/4" keyway.

 Voltage:  100V Nominal
Current:  750 Amp
Efficiency Peak:  95%
KW Peak:  100 @ 125V
KW Continuous:  35 @ 125V
RPM Peak:  8,000
RPM Continuous:  3,300
Torque:  173 lbs.-ft @ 0 RPM
Regen:  Yes, Tailorable
Motor Diameter:  8.66"
Motor Length:  13.976"
Motor Weight:  120 lbs.
Controller Weight:  9 lbs.
Shaft:  Single-Ended, Keyed
Mounting:  B-Face (WarP 9)
Insulation:  Class "H"
Software:  SmartView


Specifications

Chill Plate

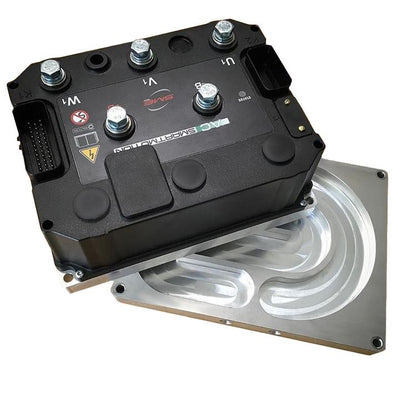

Greatly increase the continuous duty cycle of your Hyper-Drive X1 Controller/Inverter. Made from 6061 solid aluminum, this 5/8" thick plate is fitted with 1/8" NPT inlet and outlet ports. This is an unfinished aluminum plate and can be buffed with an abrasive pad for a matte finish or polished for a chrome look.

  • 5/8" thick 6061 solid aluminum
  • 1/8" NPT inlet and outlet ports
  • Mounting holes match X1 & X144 base
  • Includes liquid gasket maker
 The HyPer-Drive X1 Controller has an operating temperature range of -40°C to  +95°C. When the controller's heatsink temperature reaches +80°C, Thermal  Cutback  Mode will activate linear de-rating of the controller's output power.  This linear de-rating continues until shut down at +95°C. Without a chill plate, the current rating of a properly mounted HyPer-Drive X1 Controller is 750A for 2 minutes. A liquid cooling loop, fed through this chill plate, can yield approximately  2-3 times the stock duty cycle. A liquid cooling system is strongly recommended for any application requiring a continuous rating above 200 Amps.

Compact Display

The SME Compact Display is an optional add-on component for any Hyper-Drive X1 Controller/ Inverter. The immediate EV capabilities of this LCD Compact Display include:
  • Display vehicle speed in MPH or KM/H. This is a calculated value determined by tire diameter and up to two gear ratios.
  • Display active fault code of highest priority.
  • Indicate main battery pack state of charge.
  • Indicate power de-rating due to Motor or Inverter over-temperature.
  • Cycle between 3 operating profiles with push button (E/S/H) switch. (Must be assigned in Clone file)
  • "Diagnostic Mode" to view System values such as - HyPer Motor RPM, Temperature, Torque, Current, and more.

Used Throttle Pedal Assembly:

Recommended Throttle Control Unit for any Hyper-Drive Controller/ Inverter. 0-5 V Potentiometer Pedal Assembly - Used.

Important Shipping Notes:

Shipping is automatically calculated at checkout to ship to a commercial address. All items that are being shipped to a residential address will have to be picked up at the nearest FedEx LTL service center. If you would like to ship this item to a residential address additional fees will apply. Please feel free to contact us if you have any further queries.
