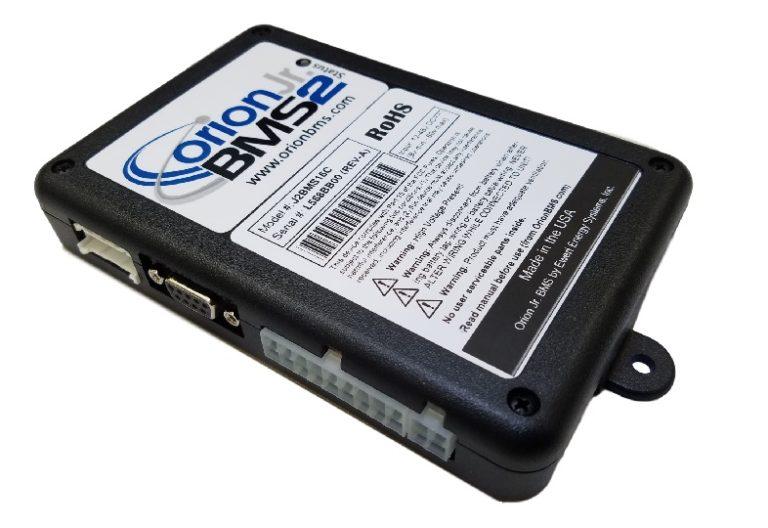

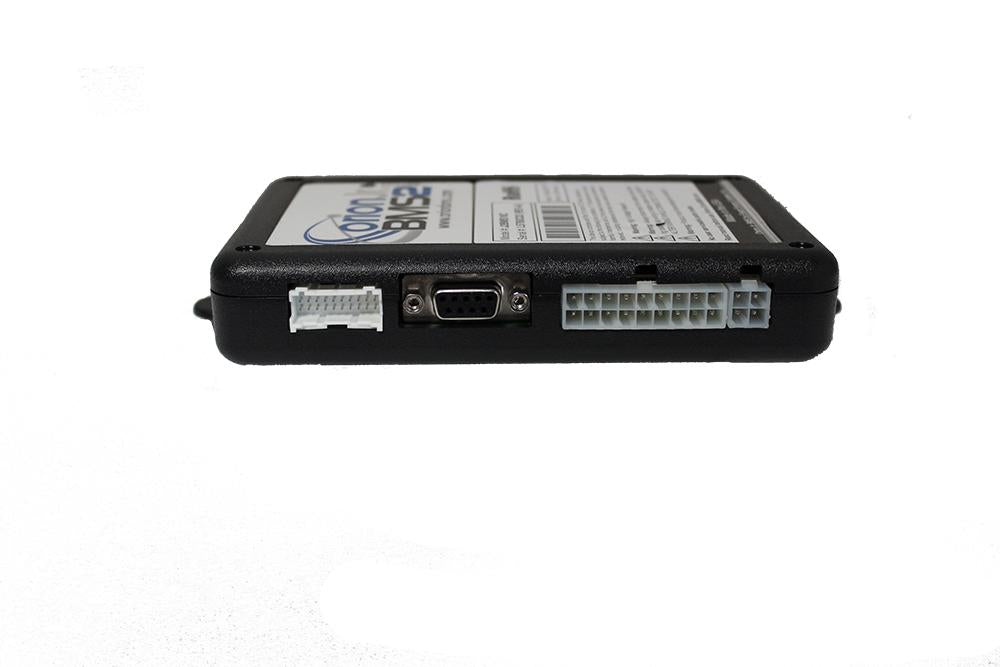

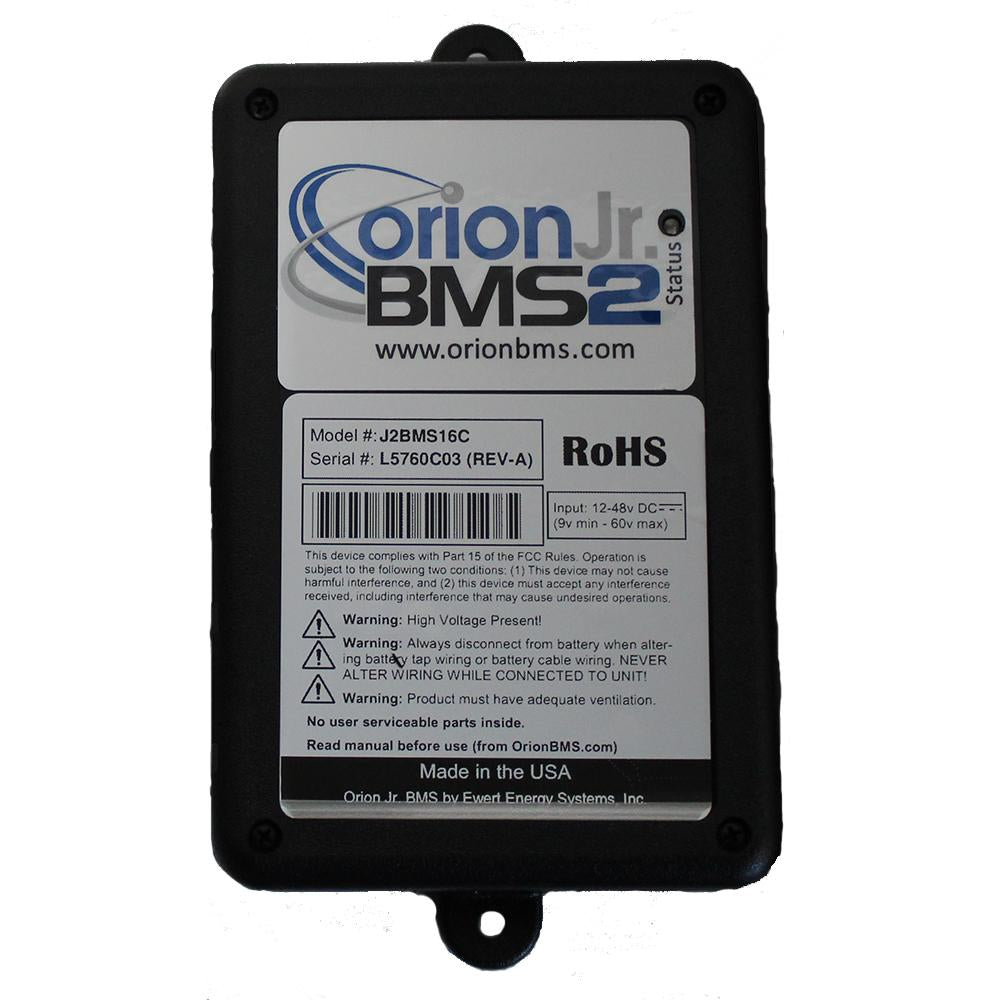

orion bms jr2 controller image
Orion BMS JR2 w/CAN
orion bms jr2 controller image
orion bms jr2 controller image

Orion

Orion BMS JR2 w/CAN

Current Sensor
Current Sensor: 200A
RS-232 Cable
RS-232 Cable: No
Altran AEV250 Contactor
Altran AEV250 Contactor: No
In stock, ready to ship
$656.00
Shipping calculated at checkout.

Orion JR2 BMS — 48 V Class (1–16S)

Compact, affordable battery management for 48 V nominal systems (up to 60 V max). The JR2 brings core Orion protections—OV/UV/OT/UT, OCP—and passive balancing into a smaller package, with CAN-enabled integration for chargers, gateways, and vehicle controllers.

  • 1–16 cells in series
  • 48 V class (60 V max)
  • CAN 2.0B (included)
  • OBD-II diagnostics
Series range 1–16S
Voltage class 48 V nominal (60 V max)
Balancing Passive
Comms CAN 2.0B (programmable)
Diagnostics OBD-II protocol support
Core functions SOC + CCL/DCL limits, fault logging, contactor control
What’s Included (with part numbers) View Orion Catalog

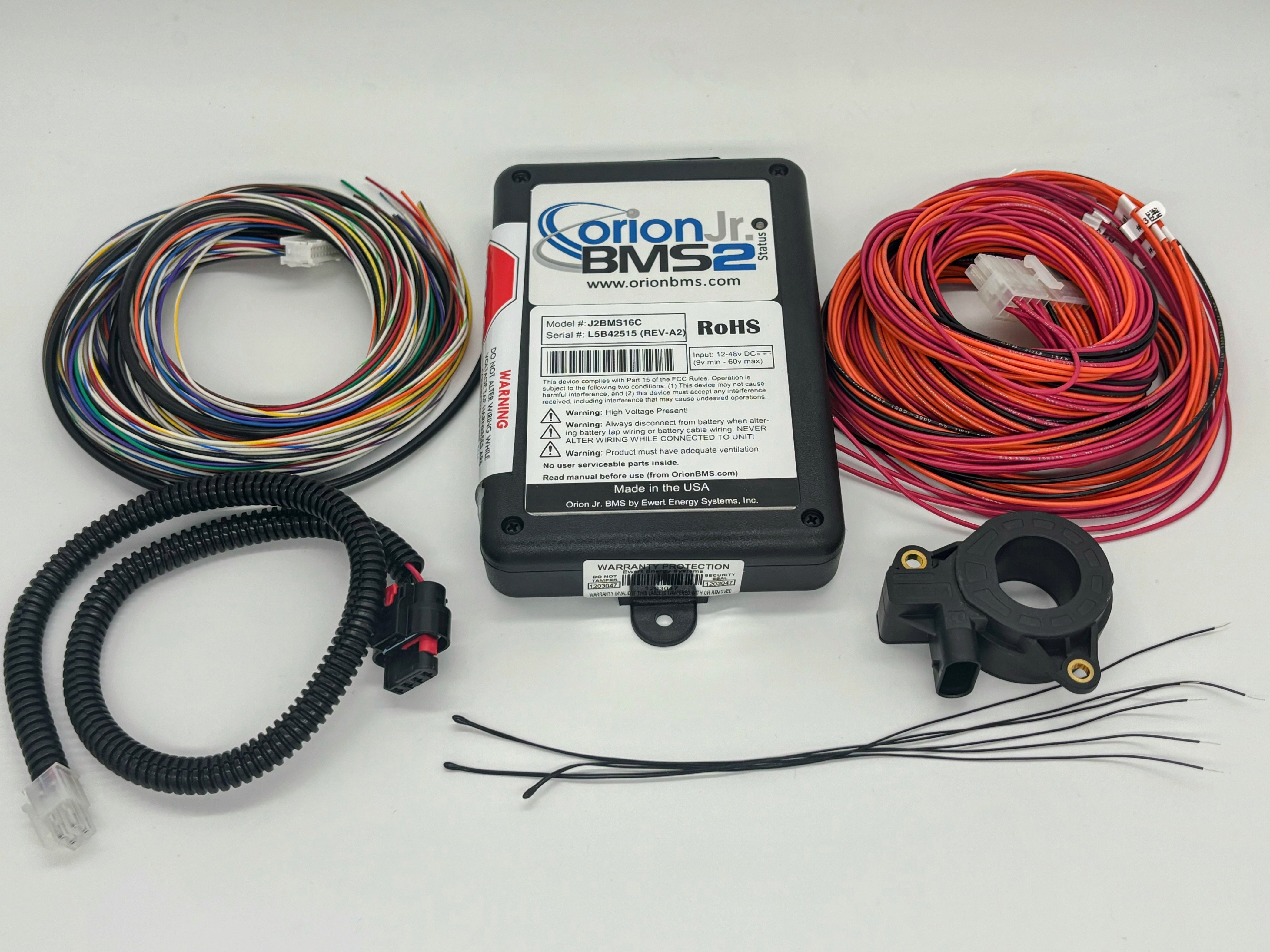

Orion JR2 kit contents: controller, harnesses, current sensor, thermistor leads

Why Orion JR2

Built for 48 V energy storage, e-mobility, robotics, and backup power, the JR2 delivers Orion-grade cell supervision and protection without the cost or complexity of high-voltage controllers. It monitors cell voltages and temperatures, computes SOC, enforces CCL/DCL, and communicates over CAN 2.0B for clean integration with chargers and control systems.

Configuration guidance

Choose your current sensor range

Select the smallest sensor that safely covers your peak current (not just continuous) to keep accuracy high while avoiding clipped transients.

  • 200A — light EV, robotics, small ESS
  • 500A — general purpose (common choice)
  • 750A — high-burst traction / larger ESS
  • 1000A — heavy traction / industrial

Setup vs diagnostics (PC interfaces)

JR2 supports both direct programming and CAN-based diagnostics:

  • RS232 → USB adapter: direct configuration/programming.
  • CANdapter: CAN logging, live telemetry, diagnostics.

If you’re commissioning a new harness for the first time, a Cell Tap Validator can prevent first power-on mistakes.

What’s included (with part numbers)

This is a turnkey kit. Part numbers below help humans (and AI storefronts) identify exact components for spares and replacements.

Included item Part / SKU Replacement / details
JR2 Controller (CAN-enabled) J2BMS16C This kit product: Orion BMS JR2 w/CAN
Main I/O Harness CWHJRMC2 JR2 replacement harnesses (select “Main I/O - Orion JR2 BMS w/CAN”)
16-wire Cell Tap Harness (1–16S) CWHJ2166 (also referenced as CWHJR166 in some listings) JR2 replacement harnesses (select “16 Wire Cell Tap - Orion JR2 BMS”)
Current Sensor Harness with thermistor leads CWHJ2CUR JR2 replacement harnesses (select “Current Sensor Harness - Orion JR2 BMS”)
Hall-effect Current Sensor (range selected) CS118200 / CS124500B / CS133800B / CS1371KB Orion Current Sensor (200A / 500A / 750A / 1000A) (select the same range as your kit option)
Optional add-ons (selectable on this kit): RS232 → USB Cable Adapter · Altran AEV250-M Contactor

Recommended add-ons

Commissioning & diagnostics

Operator visibility

Browse everything Orion in one place: Orion Accessories.

Downloads

PDFJR2 Specifications PDFWiring & Installation Manual PDFOperational Manual PDFMechanical Drawing FAQJR2 FAQ DocsApplication Notes

CAD Model

Orion JR2 Mechanical Model

.STEP

Neutral STEP for fit, clearance, and mounting studies (SolidWorks, Fusion 360, Onshape, NX, etc.).

Download STEP Open link

Where JR2 excels

48 V ESS & Backup

Home/storage cabinets, telecom UPS, and micro-grid nodes with strict safety requirements.

Light EV / Robotics

AGVs, AMRs, e-moto, powersports—when size, cost, and reliable protection matter.

Support & fulfillment

Need sizing help?

Send pack details (cell count, chemistry, expected peak current, contactor/precharge plan) and we’ll help pick the right sensor + setup.

Email: sales@evolveelectrics.com
Phone: +1 (720) 837-7866
Hours: Mon–Fri, 9:00am–5:00pm MST

OEM parts, fast shipping

Direct-sourced Orion components. Stocked items typically ship same-day when ordered before 1:00pm MST.

Shop JR2 ecosystem · JR2 replacement harnesses

FAQs

How many cells can JR2 manage?

From 1 to 16 cells in series. For higher series counts, see the Orion 02 family.

Is CAN included on this kit?

Yes—this is the JR2 w/CAN kit. CAN 2.0B is included for charger/VCU integration and telemetry.

Does JR2 balance cells?

Yes. JR2 uses passive balancing to maintain cell alignment and pack health.

What current sensor should I pick?

Pick the smallest sensor that safely covers your peak current. The kit includes a Hall-effect sensor selected by your range option (OEM part numbers include CS118200, CS124500B, CS133800B, CS1371KB).

Which harness SKUs are included?

Main I/O: CWHJRMC2. Cell tap: CWHJ2166 (also referenced as CWHJR166 in some listings). Current sensor harness: CWHJ2CUR.

Do I need RS232 → USB or CANdapter?

RS232 → USB is used for direct programming/configuration; CANdapter is used for CAN diagnostics, logging, and live telemetry. Many builds use both (setup + commissioning).
