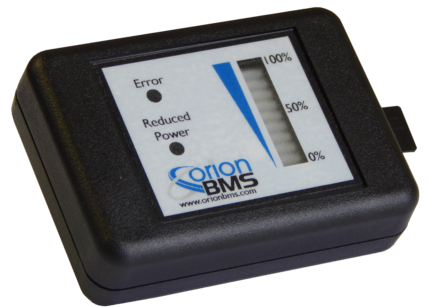

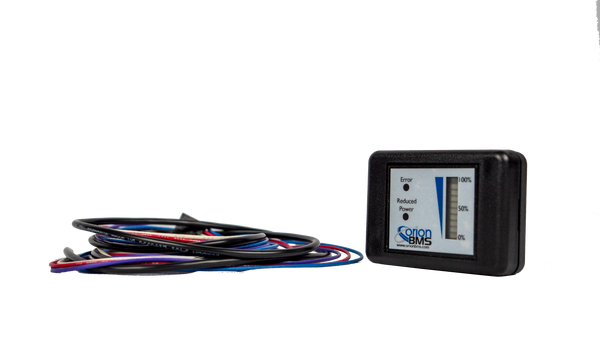

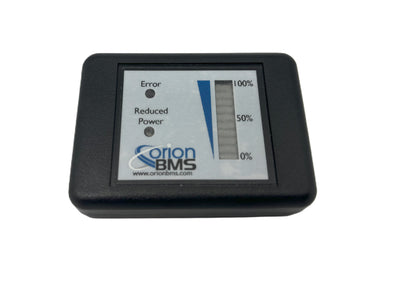

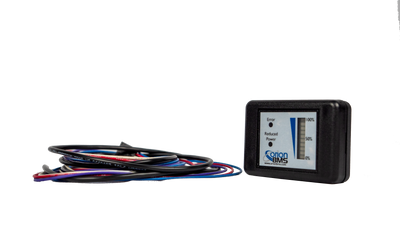

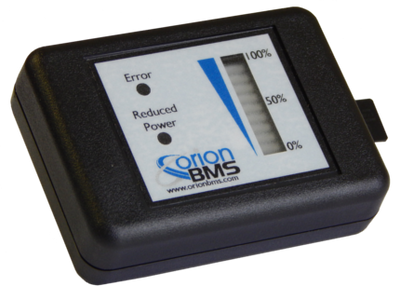

    Orion BMS SOC Meter w/ Data Logging
    Orion BMS SOC Meter w/ Data Logging - EVolve Electrics
    Orion BMS SOC Meter w/ Data Logging - EVolve Electrics

    Orion

    Orion BMS SOC Meter w/ Data Logging

    In stock
    $235.00
    Shipping calculated at checkout.
    Description

    The Data Logging Display module for the Original and the 02 Orion BMS / Orion Jr. BMS (CAN version only) provides visual feedback of the essential information on a battery pack as well as data logging capabilities for diagnostics. This display and logging combo connects to an Orion BMS unit via CAN (Controller Area Network) and logs data to a memory card while displaying State of Charge, Power Limited (reduced output power), and the Malfunction Indicator Status (error indicator).

    Quick Specifications

    • Operates with the Original and the 02 Orion BMS and Orion Jr. BMS (CAN version only) from Ewert Energy Systems (BMS sold separately)
    • Full automotive operating temperature range (-40C to 80C)
    • Logs BMS parameters to memory card at user selectable sampling rate
    • Able to log both individual cell voltages as well as general BMS parameters
    • Compact size and shape
    • Connects to the Orion BMS via CAN (no analog connections)
    • External "event trigger" input which can flag events for future review
    • Log graphing and analysis software
    • Real time clock to store data and time of each charge / discharge cycle
    • Supports CAN frequencies of 125, 250, 500Kbps, and 1 Mbps
    • User customizable logging frequency from 100mS to 10 seconds

    SKU: OXMDLGR

    Specifications

    VIEW MANUAL
    VIEW SPECIFICATIONS SHEET
