Lithium Block™ Bracket System

Lithium Block™ Bracketing System by CIE Solutions

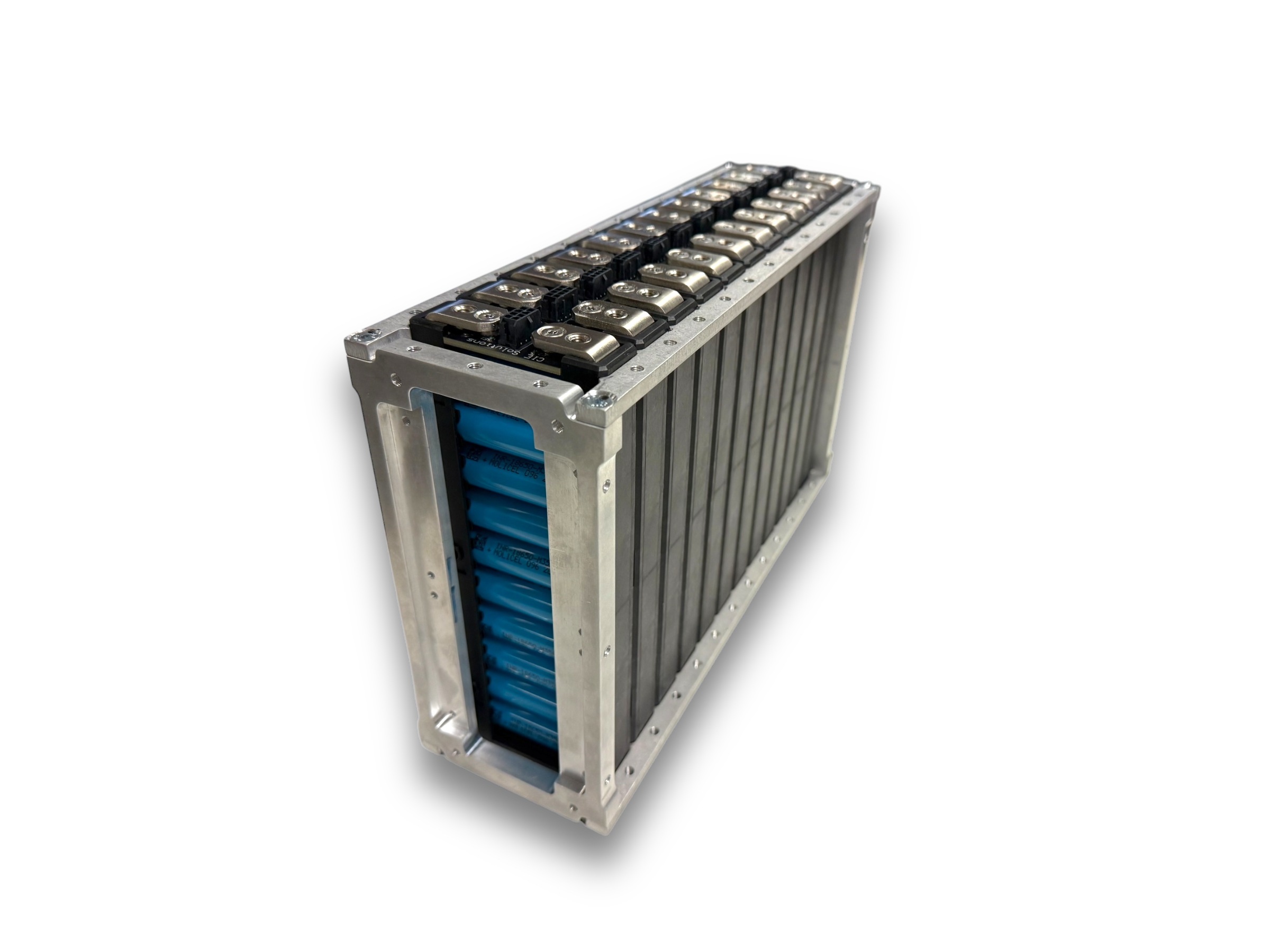

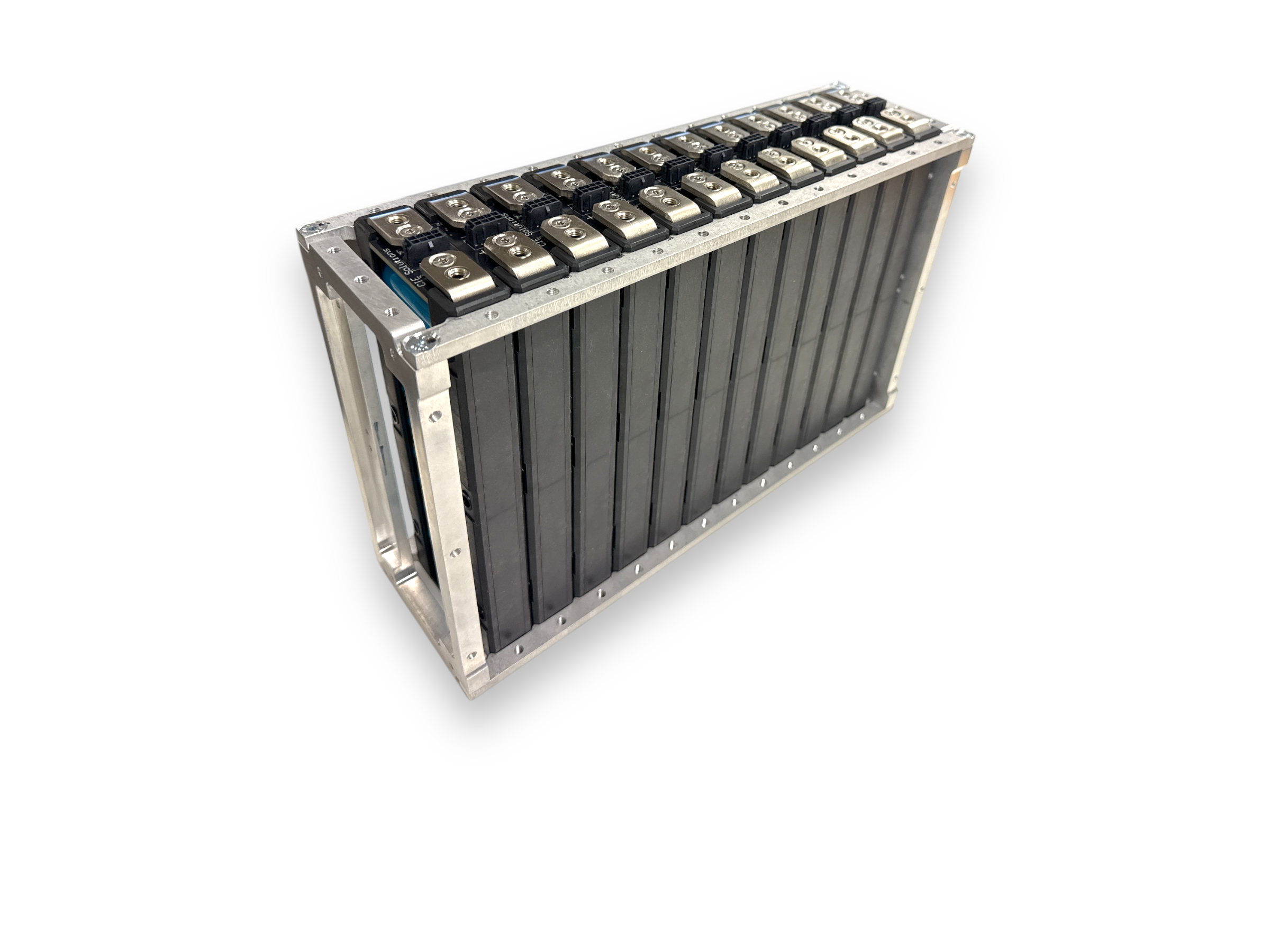

The Lithium Block™ Bracketing System is a precision engineered solution designed to securely and efficiently support the Lithium Block™ product line. Ideal for high-performance applications, this system emphasizes safety and ease of use, while remaining compliant with current FSAE standards.  Sold per segment.

Key Features:

1. Enhanced Safety & Compliance

   • Designed to meet the rigorous safety and performance requirements of the FSAE competition, the system provides a reliable and robust mounting solution specifically for Lithium Block™ modules.
   • Compliant with FSAE's dimensional and safety guidelines to ensure your team will be ready for race day.

2. Streamlined Installation

   • Pre-drilled mounting points and a modular design allow for quick and straightforward assembly, minimizing setup time and effort.
   • Included mating hardware ensures every necessary component is at your fingertips for hassle-free installation.

3. Built for Performance

   • Constructed from lightweight, corrosion-resitant aluminum for optimal strength-to-weight ratio and longevity.
   • End manifolds accept 80mm fans (not included) to actively cool each segment.

4. Comprehensive Kit

   • Custom length bracketing system tailored to fit your specific application requirements.

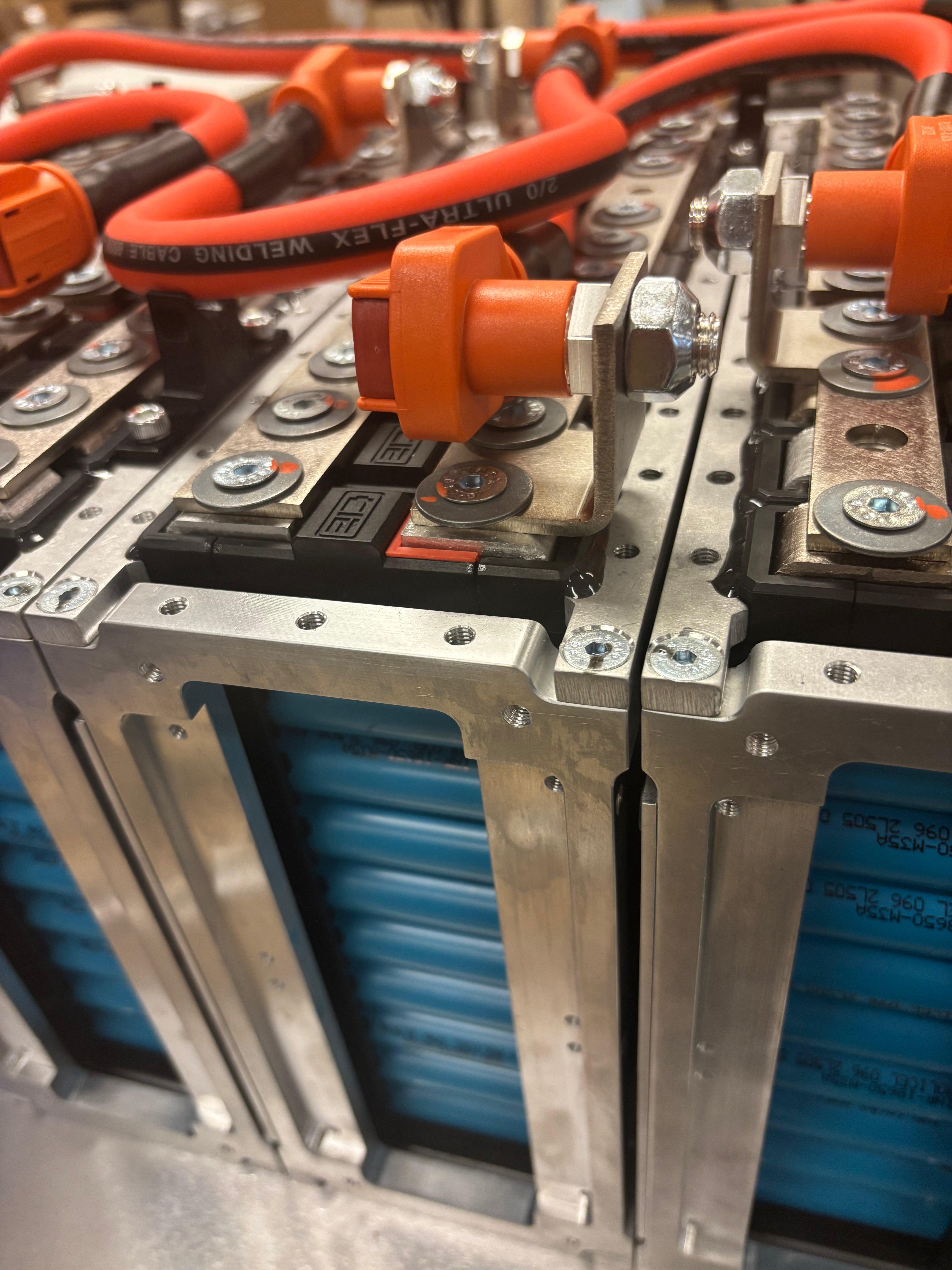

   • Each segment includes Radsok connectors and 90-degree busbars with Radsok pins with crosslock nuts for reliable electrical connectivity.
   • Nickel plated aluminum 2-hole busbars (quantity determined by modules per row) provide efficient and secure inter-module connections.

5. Future-Ready & Adaptable

   • Full CAD model included, enabling seamless integration into your design workflow and simplifying system validation.
   • Modular and scalable to accommodate future expansions or configuration changes.

Bill of Materials (BOM) Included in Each Kit:

• Custom Length Bracketing System: Configured for your application.
• Mating Hardware: All fasteners, bolts, belleville washers, and screws for assembly.
• Adhesive and Loctite: 2-part industrial adhesive to bond the modules to the bracketing and Loctite for the hardware to ensure a secure and vibration-resistant assembly.

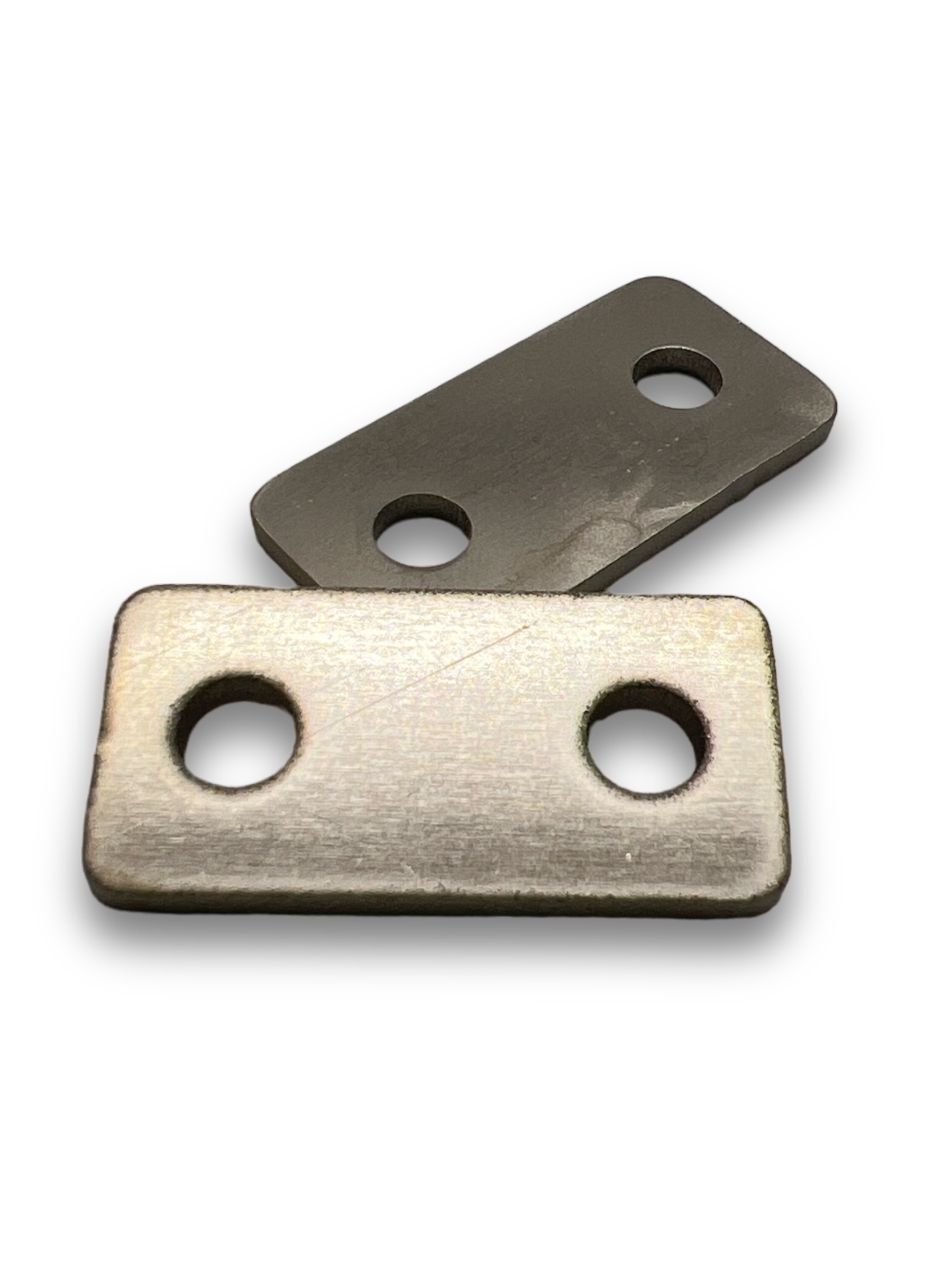

• 2-Hole Busbars: Nickel plated aluminum busbars for inter-module connections (quantity determined by modules per row).
• 90-Degree Busbars with Radsok Pin: Nickel plated aluminum busbars with a 90° bend and male Radsok connector for the end of each segment.
• Radsok Connectors: Provides robust and efficient electrical connectivity.
• Kapton Tape: To insulate and cover the high voltage busbars.
• Full CAD Model: Digital model for precise integration into your project.

Designed for the FSAE Competition

The Lithium Block™ Bracketing System is fully compliant with FSAE competition standards, giving your team a competitive edge. Its lightweight design, robust performance, and ease of assembly make it the ideal choice for accumulator solutions in high-performance racing applications.

Choose the CIE Solutions Lithium Block™ Bracketing System to ensure your battery modules are supported by the best in safety, efficiency, and reliability.

Lithium Block™ Battery System Specification Sheet
