NetGain Micro 840™ Motor System

NetGain Micro 840™ Motor & Controller Kit

High-Efficiency IPM Brushless Motor for Compact EV & Industrial Applications

Looking for a compact, high-performance electric motor system for your electric vehicle (EV), robotics platform, or industrial automation project? The NetGain Micro 840™ Series Motor with HyPer-Drive™ Controller is one of the most advanced integrated drive systems on the market—designed to deliver maximum torque, high thermal efficiency, and rugged reliability in even the most demanding conditions.

This turnkey electric drive system is ideal for:

• EV Conversions (cars, motorcycles, UTVs, ATVs)

• Autonomous mobile robots (AMRs)

• Compact industrial vehicles

• Marine electric propulsion

• Off-grid power systems

• Agricultural and utility equipment

🔋 Key Features & Benefits

• Brushless IPM (Interior Permanent Magnet) Motor
  Delivers up to 22.5 kW peak power with 95% system efficiency and no rotor slip—optimized for high-speed and high-torque applications.

• Extreme Durability
  Built with a high-compression potted stator, this motor is virtually immune to vibration, moisture, and thermal degradation.

• IP65–IP69K Sealed Options
  Optional shaft seals and sealed gearbox couplings allow operation in harsh outdoor, marine, and industrial environments.

• Lightweight & Compact Design
  Only 25 lbs, with an 8.19” diameter and 4.73” length—ideal for space-constrained builds.

• Flexible Voltage Support
  Operates on 24V to 130V DC systems, with peak current up to 600Arms, making it perfect for 48V, 72V, 96V, and 120V battery systems.

• SmartView™ PC Software
  Fine-tune motor parameters, throttle response, regen braking, and I/O through a user-friendly GUI—customizable controller programming made easy.

📦 What’s Included in the Micro 840™ System:

• NetGain Micro 840™ Brushless IPM Motor

• HyPer-Drive™ Controller/Inverter (Field-Oriented Control)

• SmartView™ Programming Software

• Low Voltage Wire Harness Kit

• Main Contactor

🔧 Output Shaft Options (Direct Fit or Adapter-Based):

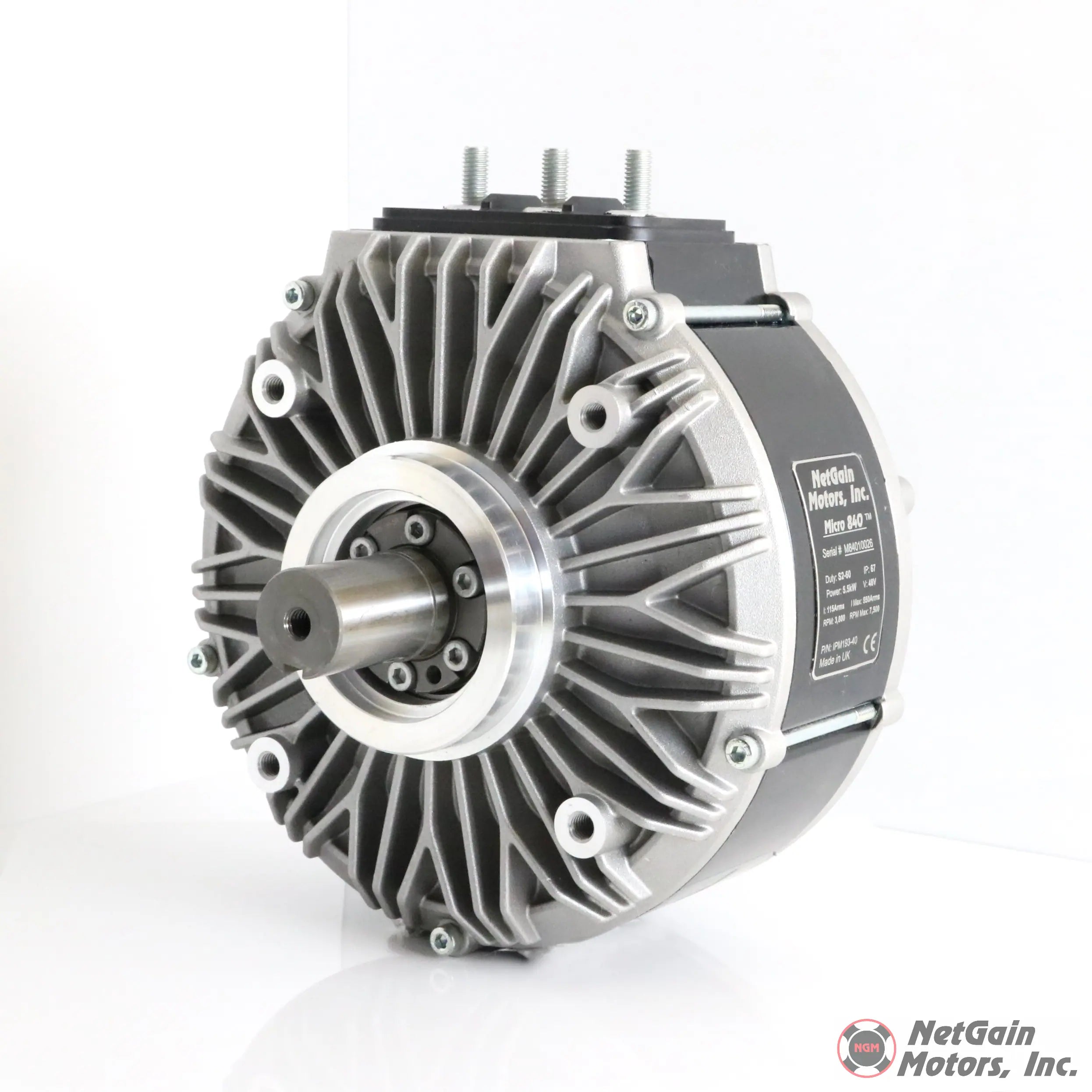

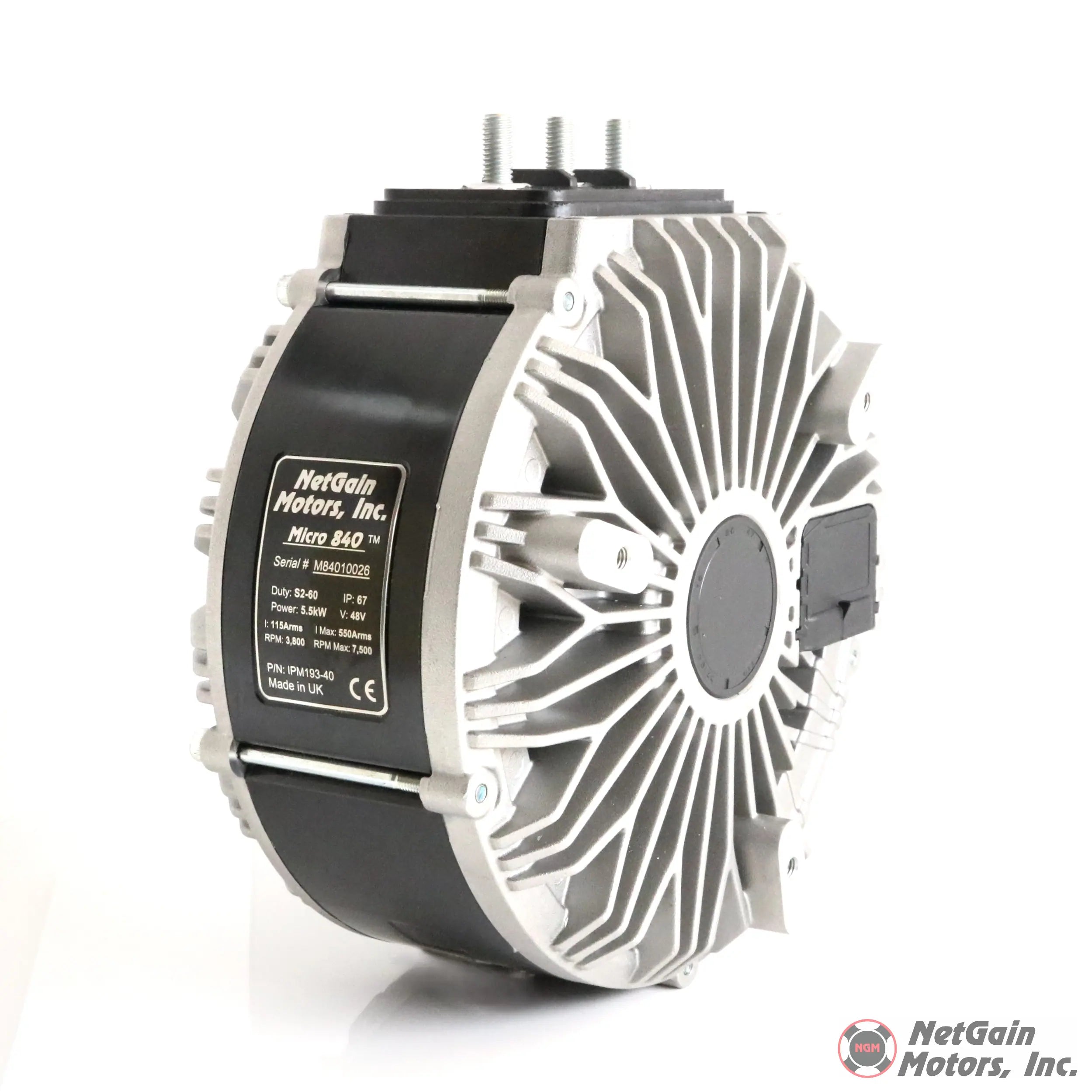

• M841 – 1.125” shaft w/ 0.250” keyway

• M842 – 24mm shaft w/ 8mm keyway

• M843 – 13T spline shaft (SAE-B adapter)

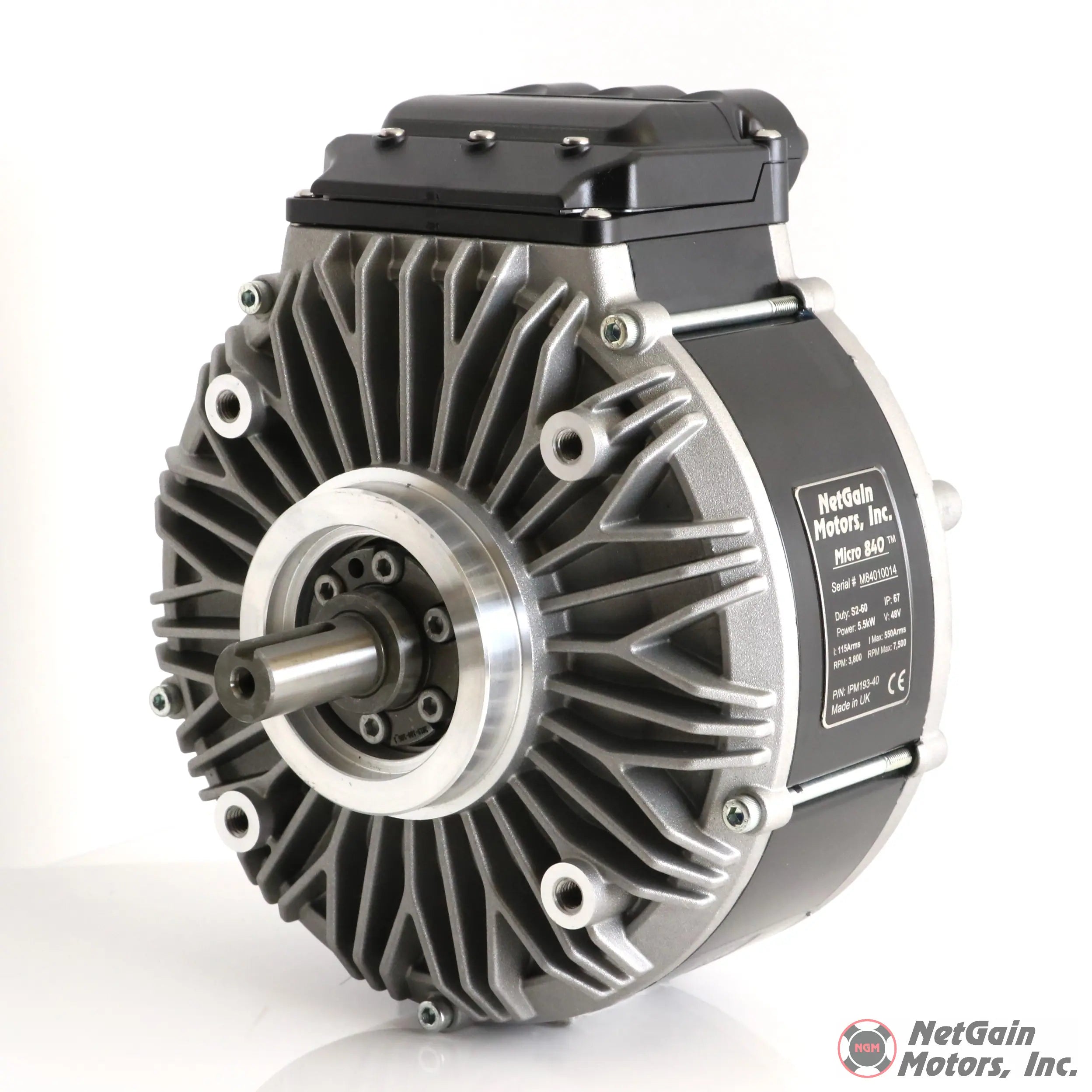

• M844 – 19mm shaft w/ 6mm keyway

• M845 – 9T spline shaft (SAE-A adapter)

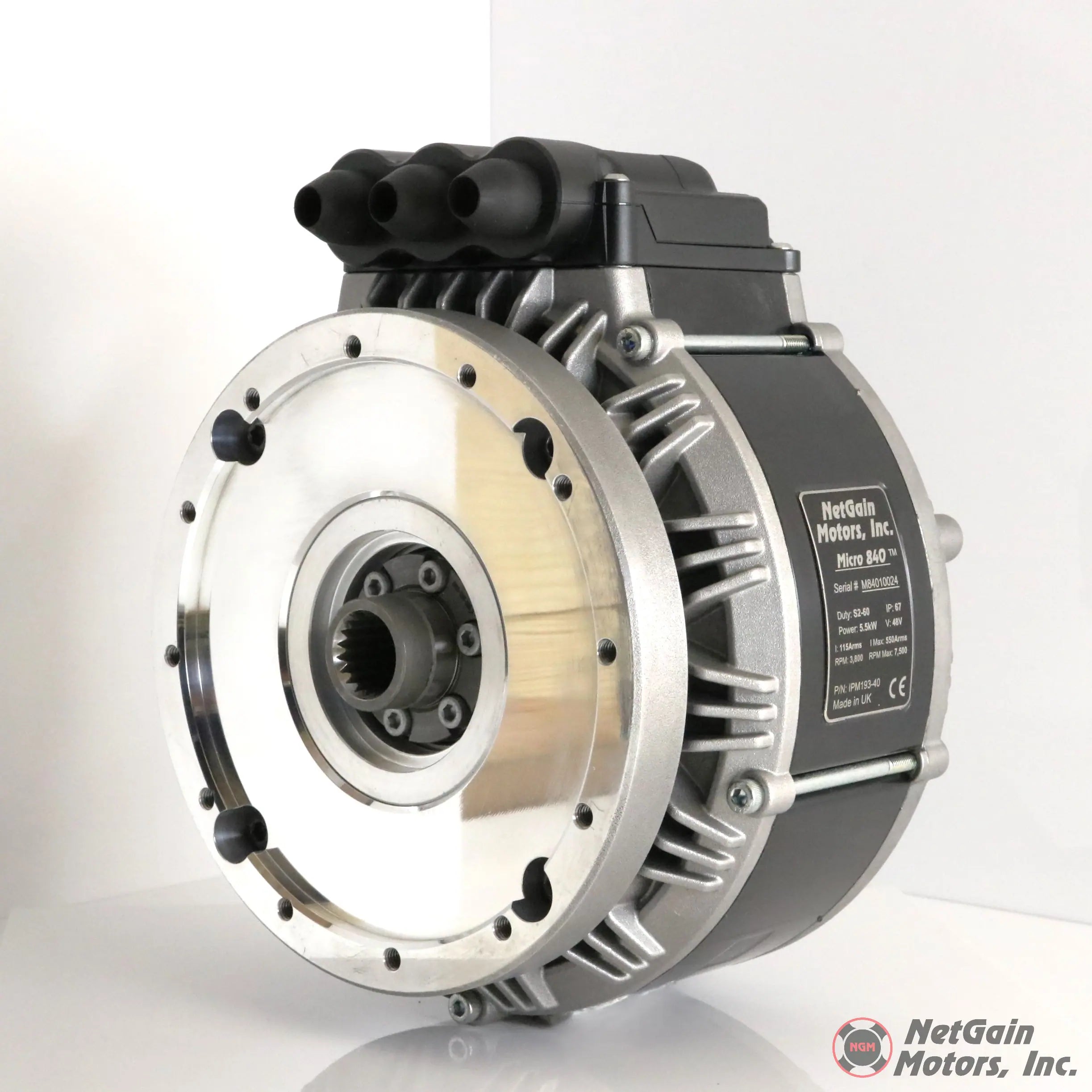

• M846 – 19T spline shaft (E-Axle adapter)

⚡ Recommended Inverter Pairings:

• HyPer-Drive X4860 – Max torque, standard speed

• HyPer-Drive X125 – Max speed, standard torque

• HyPer-Drive X1 – Max torque + max speed combo

📈 Performance Specs:

• Voltage Range: 48V to 120V DC (24V–130V supported)

• Peak Power: 13.4kW to 22.5kW (S2-5min)

• Continuous Power: 5.5kW (S2-60min)

• Peak Torque: 46 lb-ft

• Max RPM: 7000

• Efficiency: Up to 95%

✅ Why Choose the Micro 840™ from EVolve Electrics?

EVolve Electrics is a trusted supplier of high-performance EV drive systems, lithium-ion batteries, and BMS solutions. We stock multiple interface configurations of the Micro 840™ for fast shipping, and we offer expert support for integration into your build. Whether you're an EV builder, OEM, R&D team, or robotics startup, the Micro 840™ gives you a proven platform with powerful performance and robust durability.

Ready to Power Your Project?

Order your NetGain Micro 840™ motor + controller kit today from EVolve Electrics and build with confidence.

⚙️ Performance. Protection. Precision. — Micro 840™
