Can the Orion 02 REM operate without a BXL Primary controller?

No. The REM is a remote expansion node and must be paired with a BXL Primary controller. It is not compatible with the Standard Orion 02 controller.

When should I use a REM instead of a Standard controller?

Use a REM when your system has physically separated battery segments, requires HV isolation, or benefits from shorter harness runs. If one controller can service the entire pack, the Standard Orion 02 may be sufficient.

What is included in the REM kit?

The REM Controller, REM I/O wiring harness, cell tap harnesses, and an 8-thermistor harness.

Where can I find mechanical drawings and CAD?

See the CAD & Drawings section for chassis manufacturing drawings (PDF) and the DHAB current sensor STEP model for packaging and routing studies.

Orion

Orion O2 Remote Battery Management System - REM

Product variants

$869.00

Shipping calculated at checkout.

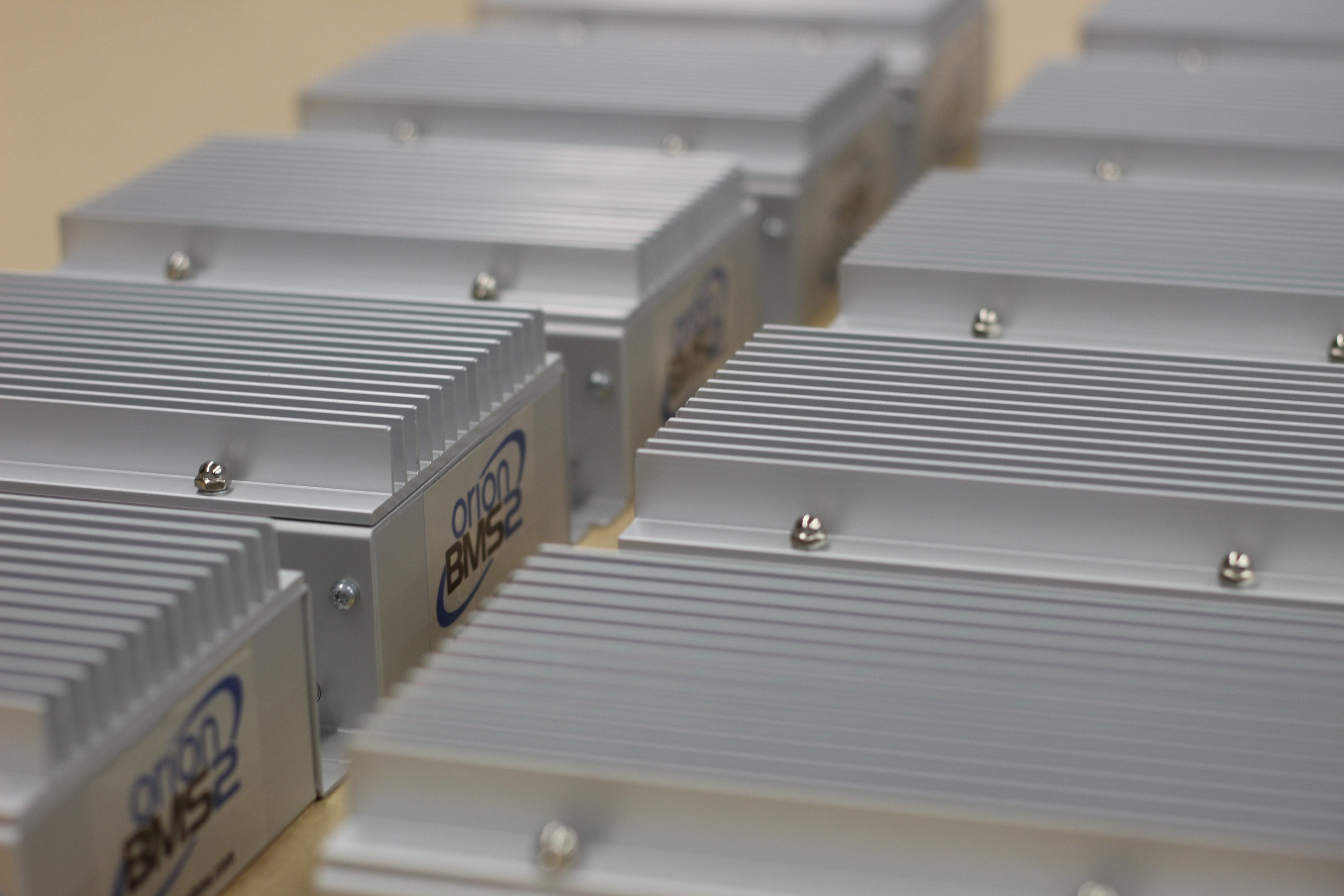

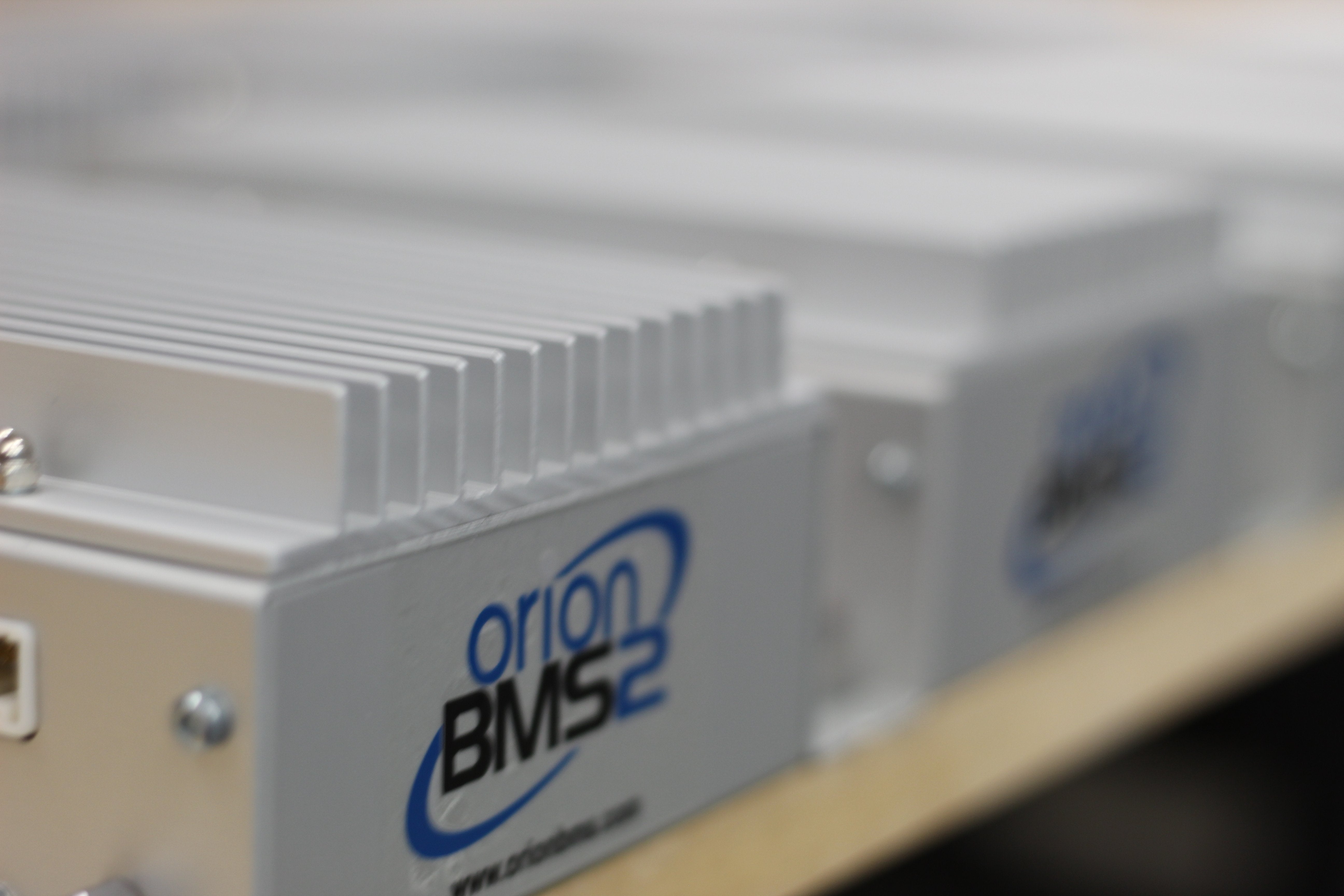

Orion 02 Remote (REM) Controller

Remote expansion node for the Orion 02 BXL ecosystem—built for split packs, distributed architecture, and high-voltage isolation.

Works only with BXL Primary
Split / distributed packs
CAN-synchronized
High EMI immunity

Current lead time: 1–2 weeks

Orion 02 Remote controller for split pack BMS architectures

What the REM does

The Orion 02 Remote (REM) is an expansion controller that extends a BXL Primary Orion 02 into physically separated battery segments. The BXL orchestrates system logic while the REM provides localized cell monitoring, temperature sensing, balancing, and tap harness interfacing at the satellite pack. This yields cleaner harnessing, shorter HV runs, and safer isolation between sections.

When to choose the REM vs. Standard

Use REM + BXL when…

Packs are distributed (front/rear, port/starboard, wing/boom, etc.).
You need isolation between HV sections for safety/compliance.
HV cabling must be shortened to reduce resistance and EMI.
Systems demand modularity and serviceable sub-assemblies.

Use Standard Orion 02 when…

A single, centralized controller can service the whole pack.
Space allows one mounting location and no split packs are needed.
Harness lengths and isolation constraints are modest.

Compatibility: The REM must be paired with a BXL Primary. It is not compatible with the Orion 02 Standard controller.

What’s included (REM Kit)

(1) REM Controller
(1) REM Input/Output Wiring Harness
(1) Cell Tap Harnesses
(1) REM 8-Thermistor Harness

Core capabilities

Cell supervision

Per-cell voltage and temperature monitoring with passive balancing for pack health.

Synchronized control

REM nodes follow BXL Primary over CAN for limits (CCL/DCL), faults, and contactor logic.

Noise immunity

Centralized Orion architecture with automotive-grade connectors and EMI-resilient design.

Applications

EV / Mobility

Split-pack architectures in vehicles where weight balance and packaging drive distributed energy storage.

Energy Storage

Cabinet / container systems with isolated racks managed as a single BMS ecosystem.

Aerospace / UAV

Multi-bay energy systems with strict isolation and serviceability requirements.

Marine / Industrial

Compartmentalized banks where shorter HV runs and segregation improve safety and uptime.

Popular Orion accessories

SOC Display w/ Data Logging — CAN-based logging (100 ms to 10 s) to removable media.
Cell Wiring Validator — Verifies tap harness integrity prior to connection.
Thermistor Expansion Module — Add up to 80 thermistors per module (stack up to 10).
Orion BMS Connect — Web-based remote monitoring, charts, events, and freeze frames.

Downloads

PDFPurchasing Guide PDFQuick Start Guide PDFSpecifications PDFWiring & Installation Manual PDFOperations Manual PDFOrion → Orion 2 Migration PDFOBD-II PIDs PDFTorque PIDs ToolWiring Generator

CAD & Drawings

Manufacturing Drawing — 24–72 Cell Chassis

PDF

Mechanical reference for mounting and envelope checks.

Open PDF

Manufacturing Drawing — 84–108 Cell Chassis

PDF

Mid-chassis dimensions, hole patterns, and keepouts.

Open PDF

Manufacturing Drawing — 120–180 Cell Chassis

PDF

Large-chassis mounting and clearance details.

Open PDF

Current Sensor — DHAB V2 SXXX

.STP

Parametric STEP for packaging and harness routing studies.

Download STEP Open link

Pair with the BXL Primary to build your system

Configure a split-pack architecture with Orion 02 BXL (Primary) + REM nodes. Need help sizing harnesses and terminations? Talk to EVolve Engineering.

FAQs

Does the REM work by itself?

No. The REM requires a BXL Primary controller. It is not compatible with the Standard Orion 02.

What does the REM add to my system?

Localized cell supervision and thermistor inputs at the remote pack, synchronized to the BXL for limits and safety logic.

Is the REM for split packs only?

It’s designed for distributed/split packs. If your pack can be serviced by a single controller, the Standard Orion 02 may be a better fit.

What ships with the REM kit?

REM controller, REM I/O harness, cell tap harnesses, and an 8-thermistor harness.

Pickup available at EVolve Electrics Office

Usually ready in 24 hours
