Orion Thermistor Expansion Module

Thermistor Kit Options: (1) OXMTHERM80; (0) CWHTHEX202; (0) THERM2002

(1) OXMTHERM80; (0) CWHTHEX202; (0) THERM2002
(1) OXMTHERM80; (1) CWHTHEX202; (0) THERM2002
(1) OXMTHERM80; (2) CWHTHEX202; (0) THERM2002
(1) OXMTHERM80; (3) CWHTHEX202; (0) THERM2002
(1) OXMTHERM80; (4) CWHTHEX202; (0) THERM2002
(1) OXMTHERM80; (1) CWHTHEX202; (1) THERM2002
(1) OXMTHERM80; (2) CWHTHEX202; (2) THERM2002
(1) OXMTHERM80; (3) CWHTHEX202; (3) THERM2002
(1) OXMTHERM80; (4) CWHTHEX202; (4) THERM2002

Product variants

In stock, ready to ship

$216.00

Shipping calculated at checkout.

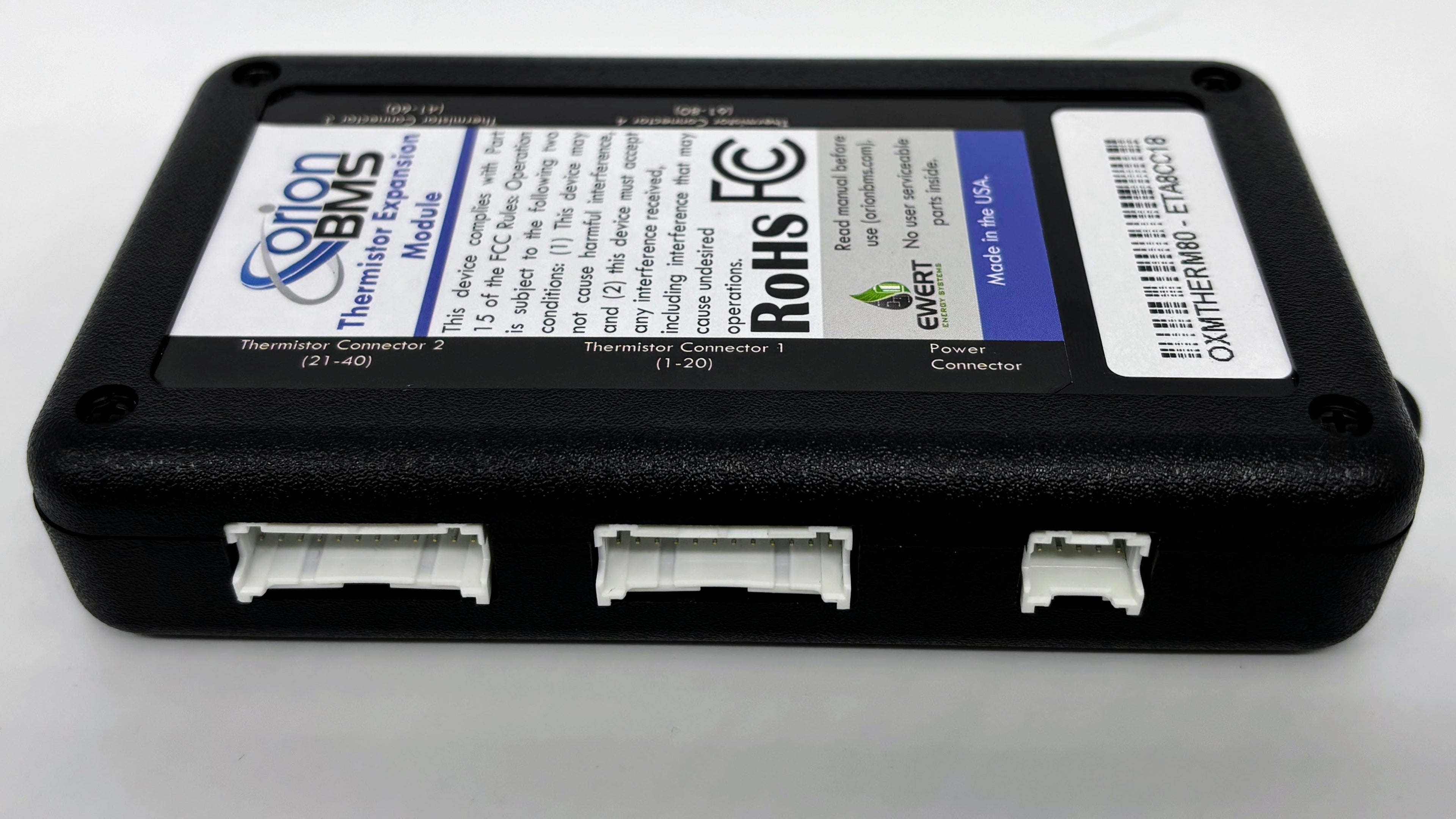

Orion Thermistor Expansion Module (up to 80 sensors per module)

Add high-density temperature sensing to Orion packs. Each module supports up to 80 thermistors over CAN. Chain up to 10 modules for as many as 800 thermistors.

CAN-Programmable
−40°C to +80°C
Automotive-grade
Orion Original / 02 / JR2

Programming: Requires a CANdapter (USB-to-CAN). Included with most Orion 02 kits; purchase separately for JR2 kits.

Overview

The Orion Thermistor Expansion Module (TEM) extends the temperature-sensing capability of Orion BMS systems to protect cells and power electronics against thermal overload. It aggregates thermistor inputs and reports temperatures to the BMS over CAN 2.0B, enabling smarter limits (CCL/DCL), better thermal mapping, and safer operation.

Part numbers

SKU	Description
`OXMTHERM80`	Thermistor Expansion Module (up to 80 thermistors)

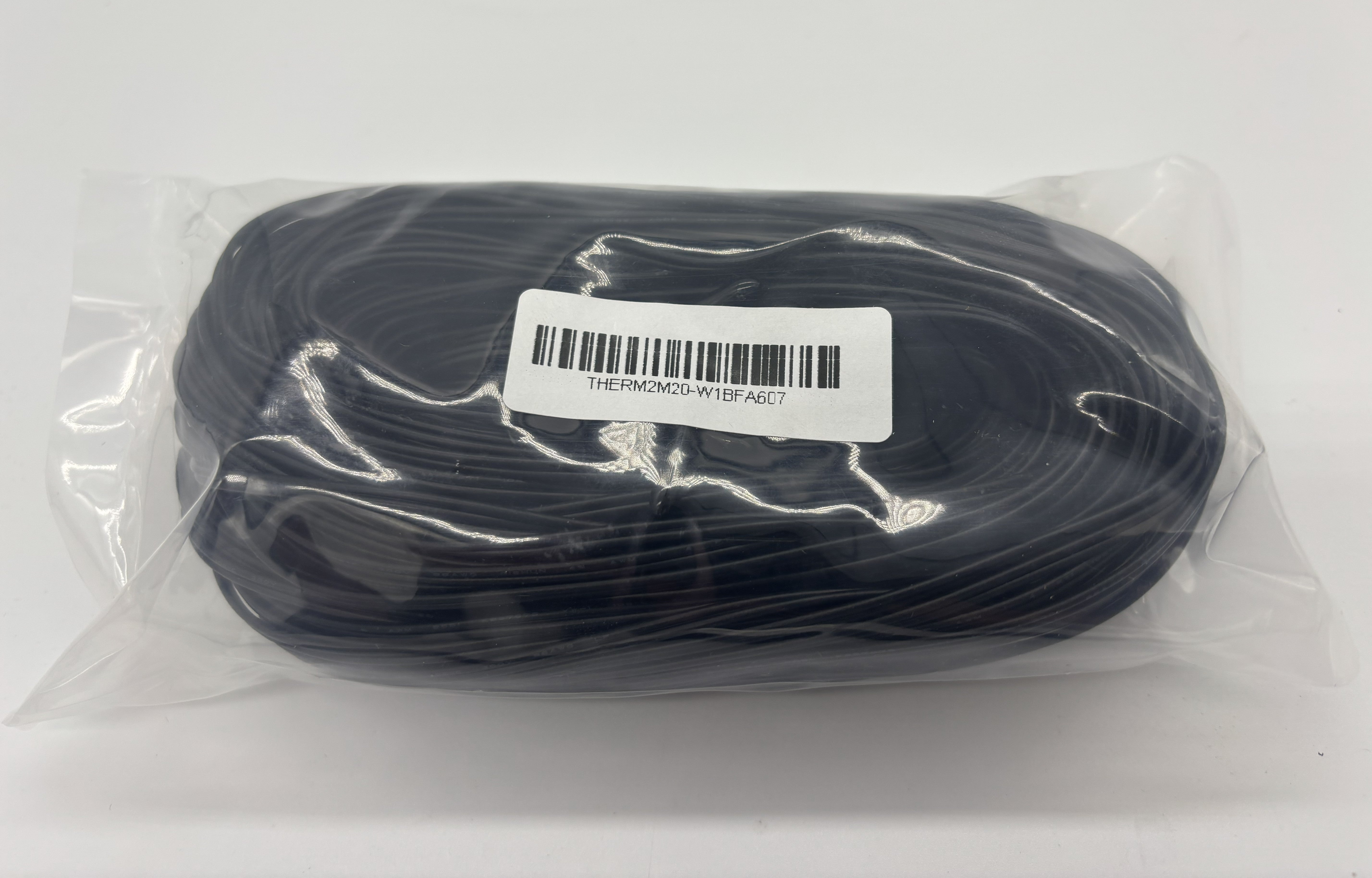

`CWHTHEX202`	(20)-lead Thermistor Harness
`THERM2002`	(20) Thermistors

Order harnesses/thermistors as needed; each module can populate up to 80 inputs.

Compatibility

Orion Original (legacy), Orion 02, and Orion JR2.
Communicates with Orion BMS via CANBUS (programmable).
Use up to 10 TEMs on one system for 800 thermistors.

Specifications

Thermistors per module: up to 80
Modules per system: up to 10 (800 total)
Interface: CAN 2.0B (configurable)

Operating range: −40°C to +80°C
Use: Orion BMS temperature expansion
Programming: Requires CANdapter

Downloads

PDFSpecification Sheet PDFProduct Manual PDFMechanical Drawing

CAD Model

Thermistor Expansion Module — Mechanical

.STEP

Neutral STEP model for fit, envelope, and mounting studies.

Download STEP Open link

Installation tips

CAN setup: Match bitrate/filters between TEM and Orion; assign unique node IDs.
Thermistor placement: Bond sensors to representative cells/modules and critical components; avoid airflow bias.
Harness routing: Keep away from HV busbars/traction cabling; separate from noisy conductors.
Commissioning: Verify channel mapping in the Orion utility and log temps during charge/discharge.

FAQs

How many TEMs can I use on one system?

Up to 10 modules, for a total of 800 thermistors across the system.

Do I need a CAN interface to program the TEM?

Yes. Use a CANdapter with the Orion configuration utility.

Is the TEM compatible with JR2 and legacy Orion?

Yes—TEM works with Orion Original, Orion 02, and Orion JR2 over CAN.
