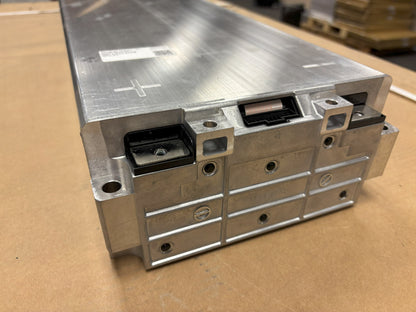

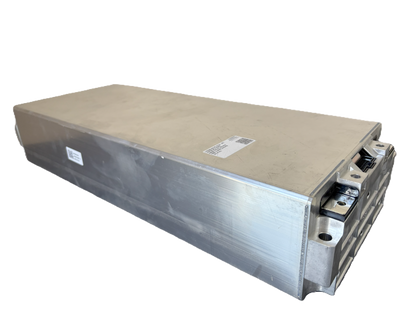

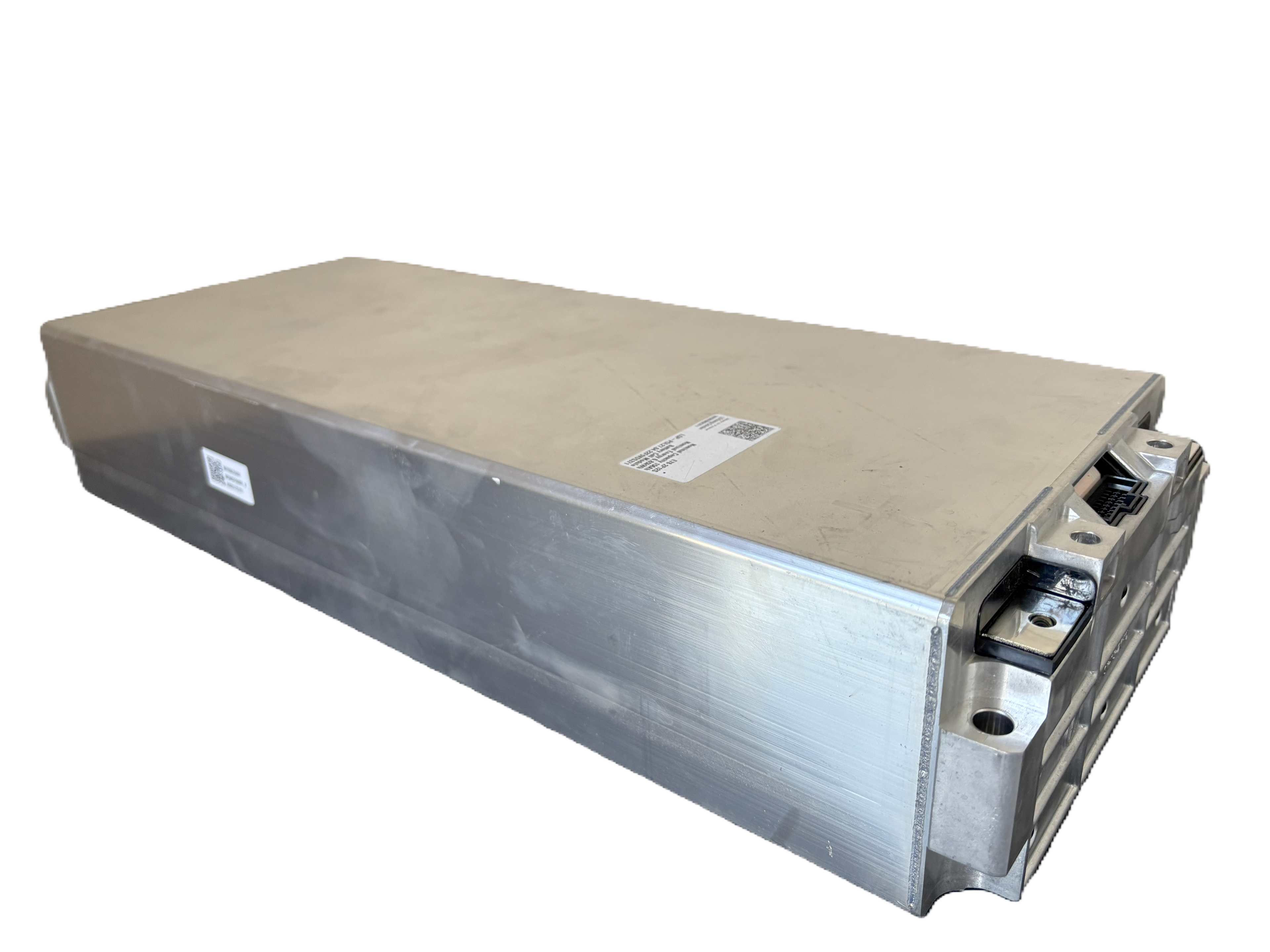

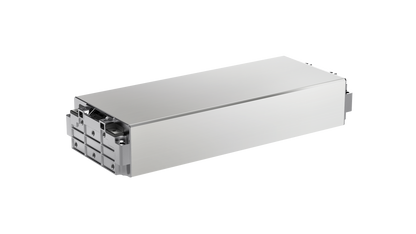

LG E78-2P12S Lithium Ion Battery Module - New

Overview

Introducing the LG E78-2P12S Lithium Battery, a high-performance energy storage solution designed for electric vehicles, renewable energy systems, and industrial power applications. With its advanced 2P12S configuration, this module provides exceptional energy density, fast charging capability, and superior thermal management.

Brand New!  Direct from OEM.

Key Features & Benefits

✅ Advanced Lithium-Ion Technology – Built with LG Energy Solution’s proven NMC chemistry for maximum efficiency and longevity.
✅ Optimized 2P12S Configuration – Ensures a stable nominal voltage of 44.04V with a high energy capacity of 6.87 kWh.
✅ Superior Power Output – Delivers a maximum discharge power of 34.7 kW and maximum charge power of 16.3 kW.
✅ Quick Charging Support – Capable of reaching 80% state of charge in just 30-45 minutes under optimal conditions.
✅ Compact & Lightweight Design – Weighing only 31.0 kg, this module offers a high energy density of 222 Wh/kg.
✅ Robust Thermal Management – Designed for operating temperatures from -30°C to 55°C, ensuring reliability in extreme conditions.

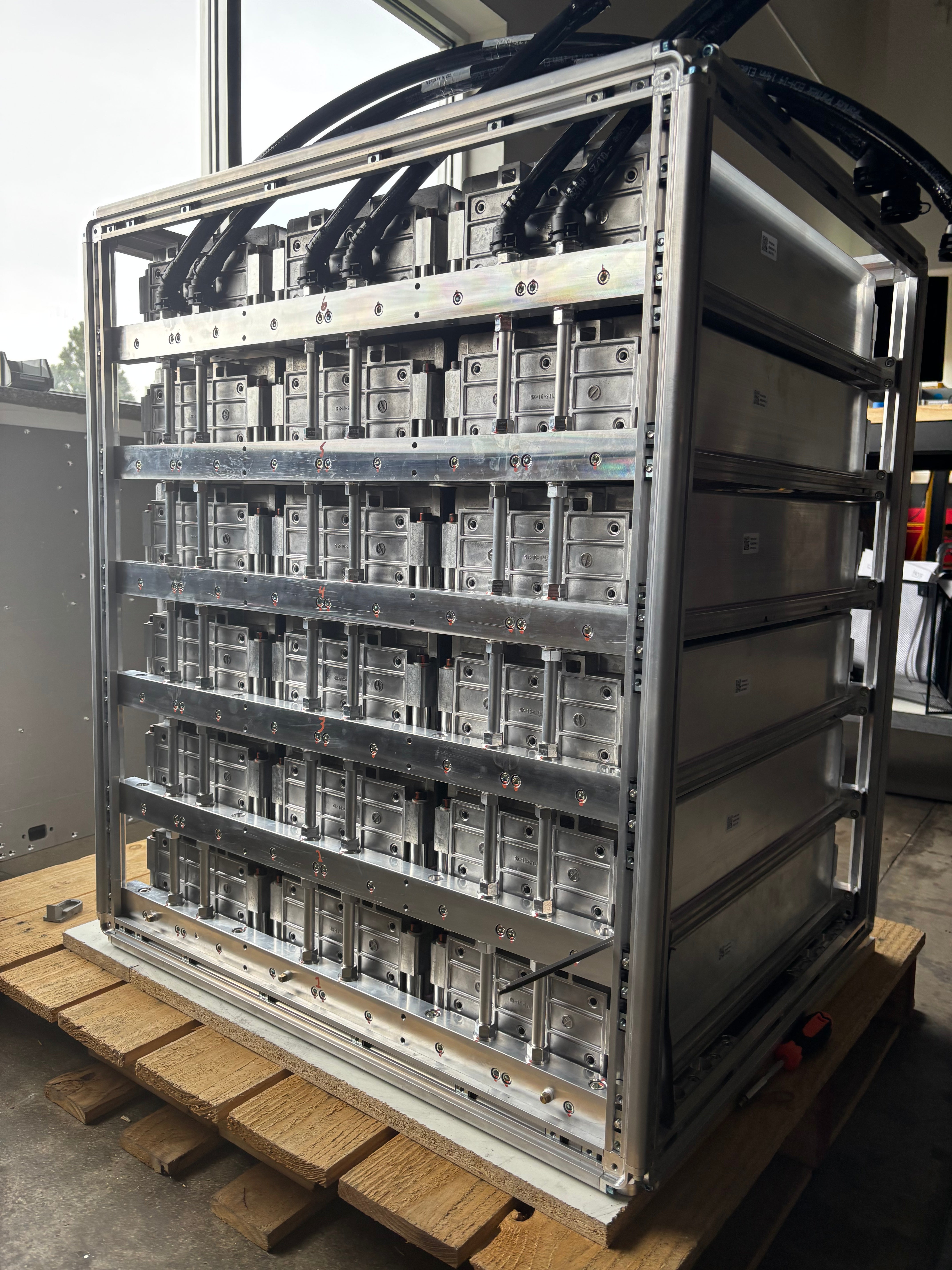

✅ Modular & Scalable – Easily integrates into larger battery packs for EV, grid storage, and industrial applications.

Technical Specifications

• Battery Type: Lithium-Ion (NMC)

• Configuration: 2P12S

• Nominal Voltage: 44.04V

• Capacity: 156Ah

• Energy Storage: 6.87 kWh

• Maximum Charge Power: 16.3 kW

• Maximum Discharge Power: 34.7 kW

• Energy Density: 222 Wh/kg

• Operating Voltage Range: 36V - 51V

• Operating Temperature: -30°C to 55°C

• Storage Temperature: -30°C to 60°C

• Weight: 31.0 kg

• Dimensions (LWT): 590mm x 225mm x 108mm

• Certifications: Compliance with industry standards (UL, CE, UN38.3, etc.)

Applications & Use Cases

• Electric Vehicles (EVs) & Hybrid Powertrains

• Renewable Energy Storage (Solar & Wind Systems)

• Industrial Backup Power & Grid Stabilization

• Marine & Aerospace Energy Storage

• High-Performance eBikes, eScooters, and Robotics

Ordering Information

• Price Range: Contact Us for Volume Discounts

• Availability: In Stock

• Lead Time: 2-3 Business Days

• Minimum Order Quantity (MOQ): 1

________________________________________________________________________________________________

Downloads & Resources

• Product Data Sheet (PDF)

________________________________________________________________

LG E78 2S12 Modules FAQ

Q: What's the nominal voltage of LG E78 modules?
A: Nominal voltage is 7.4V per module.

Q: Recommended cooling methods for LG E78?
A: Liquid cooling is strongly recommended.

Q: What BMS integrates easily with LG E78?
A: Compatible with Orion BMS systems.

Q: What is the pinout for the LG E78 2P12S Module I/O harness?
A: The 22-pin connector pinout is:

Q: What is the recommended torque specification for fastening the power terminals?
A: The recommended torque for the M6 bolt used on the power terminals is 9 Nm ±10%. Always ensure that the terminal surfaces are clean and free of foreign substances before assembly.

Q: How should the module be handled during transportation and installation?
A: The module must be handled using specific gripper interfaces located at pre-defined positions. It's essential to avoid transporting the battery by non-designated points to prevent damage or dropping.

Q: Is the module waterproof or dustproof?
A: No, the module itself is not waterproof or dustproof. Adequate protection must be provided at the pack level to prevent issues such as condensation or water ingress.

Q: What are the minimum spacing requirements between modules in a battery pack?
A: A minimum clearance of +10 mm (without planned changes) or +15 mm (with planned changes to EVO) between modules is necessary to accommodate swelling and prevent mechanical stress.

Q: What are the cooling requirements for the module?

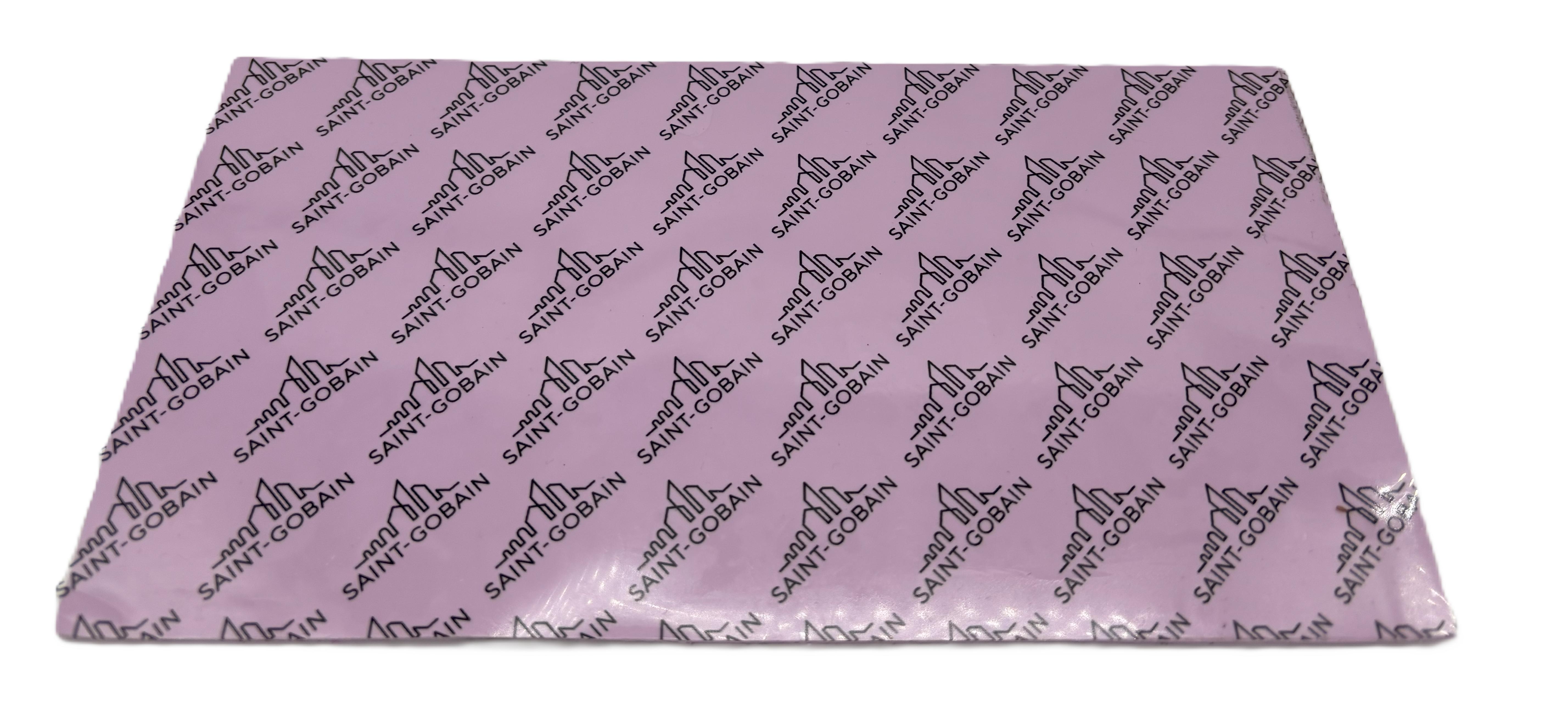

A: The module is designed for indirect cooling through its bottom surface. The recommended cooling interface area is 500 mm × 215.4 mm. It is crucial to ensure the cooling surface is clean before assembly to maximize heat transfer efficiency.

Q: What are the insulation resistance and voltage inspection specifications?
A: Insulation resistance is specified as 600 MΩ (500 V for 60 seconds), and the dielectric voltage inspection specification is 2.5 kV DC.

Q: What is the recommended assembly force and allowed acceleration for module manipulation?
A: Allowed assembly force per interface is 3 kN (X, Y, Z directions), and the allowed acceleration is up to 3 g, with a maximum acceleration of 5 g.
