Orion

Orion O2 Battery Management System

Current Sensor: 200A

200A
500A
750A

Substitute 12' Cell Taps: No

Product variants

In stock, ready to ship

$1,228.00

Shipping calculated at checkout.

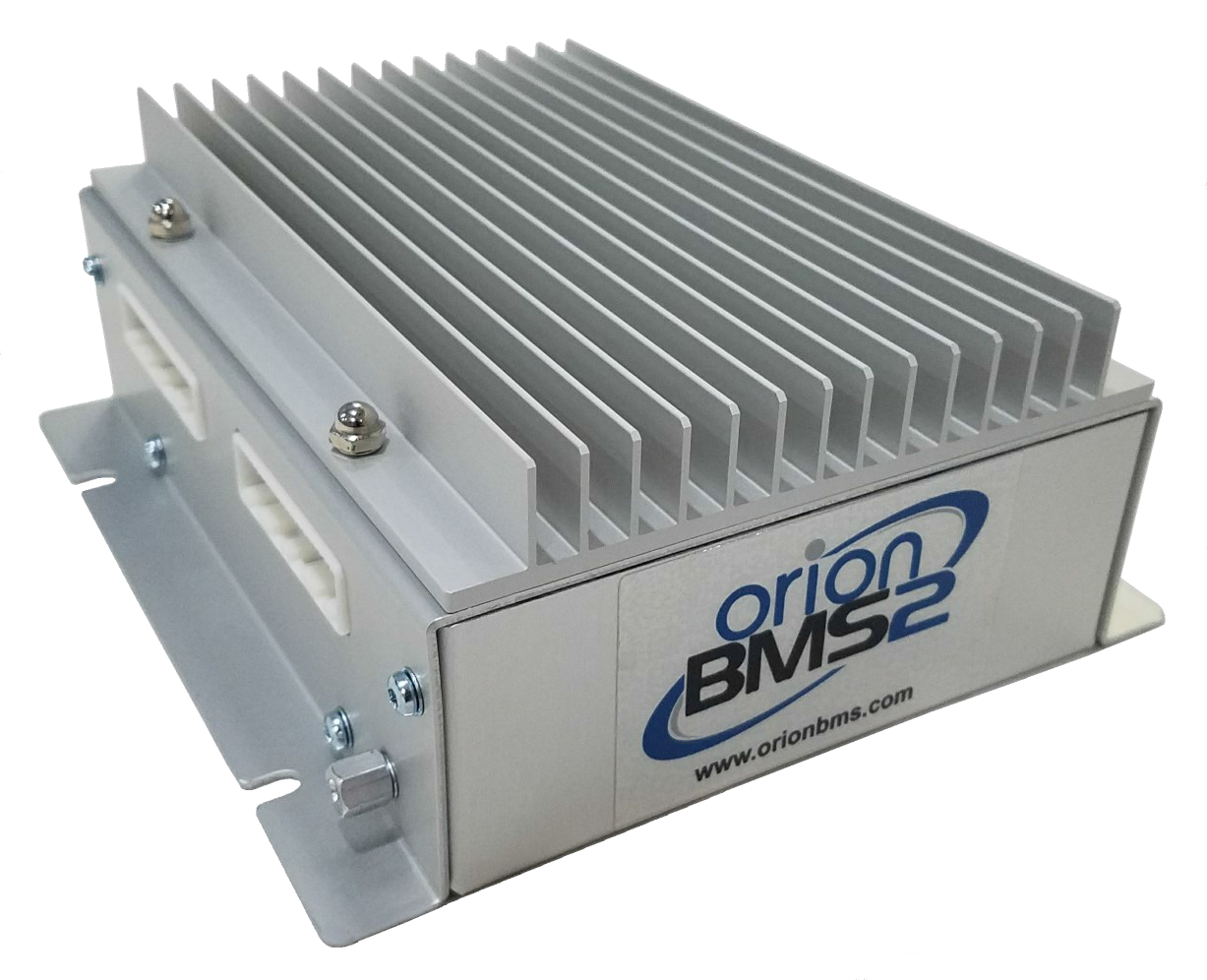

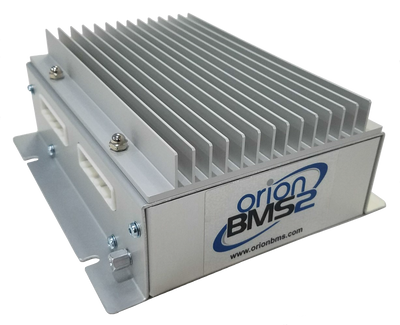

Orion 02 BMS — Standard (up to 180S)

The most widely adopted digital battery management system for lithium-ion packs. Versatile, robust, Made in the USA. Trusted by OEMs, FSAE teams, and integrators for over a decade.

Up to 180 cells in series
EMI-resilient centralized design
Dual CAN 2.0B
OBD-II support

Proven protection, precise control

The Orion 02 BMS monitors every cell for voltage and temperature, computes SOC/SOH, enforces charge/discharge limits (CCL/DCL), and drives contactors for safe, efficient operation. Centralized architecture delivers high EMI/noise immunity while maintaining automotive-grade reliability.

Key features

Measures up to 180 cells in series (configured in 12-cell increments).
Centralized design with excellent EMI immunity.
Intelligent passive balancing for pack health and longevity.
Accurate State of Charge (SOC) and limits (CCL/DCL).
Cell voltage range: 0.5–5.0 V.

Dual CAN 2.0B interfaces (fully programmable) + OBD-II support.
Automotive-grade locking connectors.
Rich diagnostics, fault logging, and thermal monitoring.
Integrates with chargers, VCUs, and displays via CAN.
Backed by extensive documentation and tools.

CAN termination note: Controller sizes 84–144 ship with both CAN1 & CAN2 internally terminated. All other sizes have CAN1 internally terminated (CAN2 is unterminated).

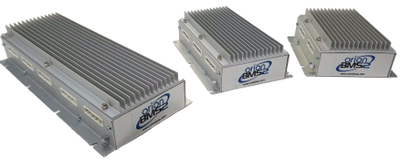

Configurations & chassis guidance

Choose a controller in series counts that match your pack (available in 12-cell increments). Typical chassis families:

24–72S

Compact chassis for small to mid packs, student EVs and prototyping.

84–108S

Mid chassis for commercial EVs, ESS cabinets, and robotics.

120–180S

Large chassis for high-voltage traction and utility-scale ESS.

What’s included

(1) Main Controller
(1) BMS Main Input/Output Wiring Harness
(1) Cell Tap Harness Kit
(1) CANdapter
(1) Current Sensor Harness w/ (8) Thermistors
(1) Current Sensor

Where it excels

Electric Vehicles

From race teams to commercial fleets—the Orion 02 delivers predictable limits, robust diagnostics, and CAN-native control.

Energy Storage Systems

Rack, cabinet, and container installations with stringent safety and uptime requirements.

Aerospace / UAV

Centralized BMS with high noise immunity and precise telemetry for mission-critical platforms.

Marine / Industrial

Harsh-environment power systems where reliability and clean integration matter.

Downloads

PDFOrion 02 Specifications PDFWiring & Installation Manual PDFOperations Manual ToolWiring Generator

CAD Downloads

Current Sensor — DHAB V2 SXXX

.STP

Parametric current sensor model for packaging and clearance studies.

Download STEP Open link

Orion 02 Controller — 24–72S

.STEP

Controller assembly for 24–72 series cell configurations.

Download STEP Open link

Orion 02 Controller — 84–108S

.STEP

Mid-chassis controller for 84–108 series cells.

Download STEP Open link

Orion 02 Controller — 120–180S

.STEP

Large-chassis controller for 120–180 series cells.

Download STEP Open link

Want a turnkey, liquid-cooled pack?

See the MonoLith™ Battery System — our pre-engineered packs integrate Orion 02 for faster time-to-power.

FAQs

How many cells can the standard Orion 02 manage?

Up to 180 series cells, configured in 12-cell increments to match your pack.

What’s the difference between Standard and Split?

Standard is a single, centralized controller; Split supervises multiple physically separated segments as one system.

Is CAN termination built-in?

Yes. Sizes 84–144: both CAN1 & CAN2 are internally terminated. All other sizes: CAN1 terminated.

Can I integrate with a charger and VCU?

Yes. Dual CAN 2.0B with configurable messaging; OBD-II support is available for diagnostics and service tools.
