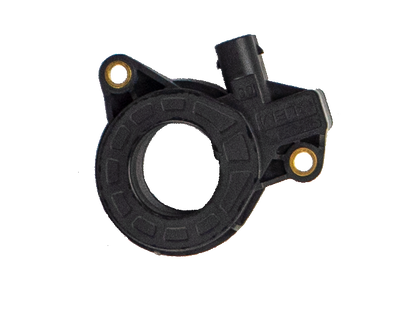

Orion Current Sensor
Orion BMS Current Sensors (±200A · 500A · 750A · 1000A)
Dual-range Hall-effect sensors purpose-tuned for Orion BMS. Size for your peak current, keep accuracy at low current, and give the BMS the data it needs for safe, precise control.
- Dual-range package
- High accuracy at low current
- Bidirectional (charge/discharge)
- CAN-friendly telemetry via Orion
Why the current sensor matters
While technically optional, the current sensor unlocks most of Orion’s intelligence. Without it, Orion cannot compute SOC, SOH, internal resistance, CCL/DCL, or detect weak cells and over-current events. Accurate current data drives protection, range prediction, and charge control.
How to size the sensor
Pick the smallest sensor that safely covers peaks
- Target: choose a rating above your highest expected transient, not just continuous.
- Example: 275 A peak → pick 500 A (headroom for spikes).
- Example: 190 A peak → pick 500 A (200 A is borderline for transients).
Smaller ranges improve low-current accuracy, but a little oversize is safer than clipping.
Dual-range = accuracy + redundancy
Each part includes two sensing ranges inside one package: a smaller internal range for finer low-current resolution and a larger range for peaks. Orion uses both to improve fidelity and robustness.
Available ranges
| Nominal Range (bidirectional) | Recommended Use | Notes |
|---|---|---|
| ±200 A | Light EV, robotics, small ESS | Best small-current resolution; ensure headroom for spikes. |
| ±500 A | General purpose traction / mid ESS | Common choice when peaks sit 200–350 A. |
| ±750 A | High-demand traction / larger ESS | For systems with frequent 400–600 A bursts. |
| ±1000 A | Heavy traction / industrial | Use when peaks approach 800–900 A. |
Wiring & installation notes
- Orientation: follow the arrow/marking so positive current (discharge) matches Orion’s sign convention.
- Conductor fit: route the main conductor centrally through the aperture; avoid edge contact.
- EMI hygiene: keep HV busbars and high-dI/dt conductors away from sense leads; twist/route per Orion manual.
- Thermal: sensor is non-contact; maintain clearance from hot components and provide strain relief for leads.
CAD Downloads
FAQs
What happens if I undersize the sensor?
Clipped peaks reduce accuracy and can compromise over-current protection and SOC/limit calculations. Always allow headroom.
Does Orion require a current sensor?
Orion can run without one, but most features (SOC, SOH, IR, CCL/DCL, weak-cell detection) depend on accurate current.
Are these sensors bidirectional?
Yes—specified ranges are ±, covering both charge and discharge current.
