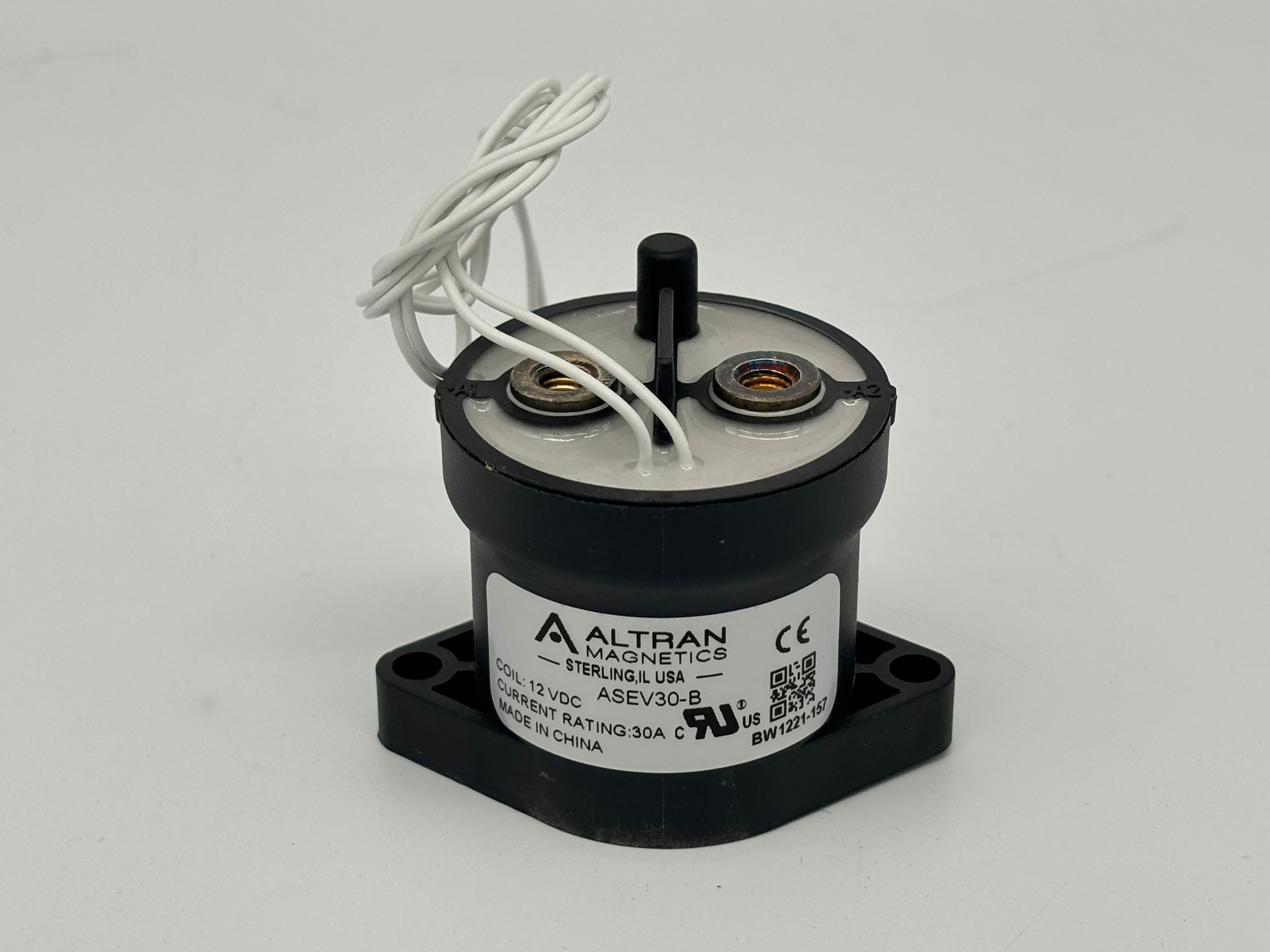

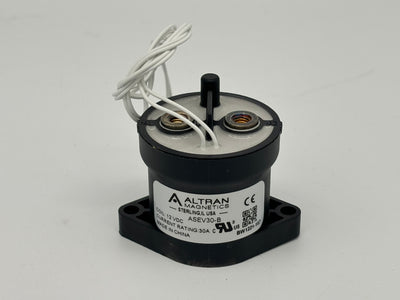

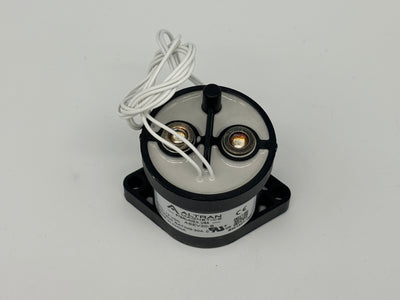

Altran ASEV30 Precharge Contactor
Altran ASEV30 Precharge Contactor

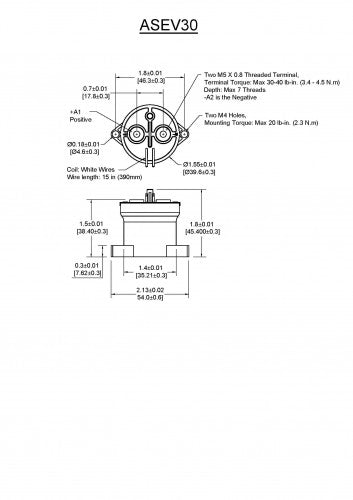

Altran contactor ASEV30 image

Altran

Altran ASEV30 Precharge Contactor

In stock, ready to ship
Sale price$45.00Regular price $58.00
Shipping calculated at checkout.

Datasheet

Current rating: 30A  Voltage rating: 900 Vdc

Description:

  • HIGH CURRENT AND HIGH VOLTAGE: Nitrogen sealed contacts to minimize arcing, up to 900VDC load is available.

  • COMPACT STRUCTURE, LOW NOISE: Contact design yields reduced unit size, low noise while carrying or switching current.

  • HIGH SAFETY: There is no arc leakage due to tight sealing.

  • HIGH CONTACT RELIABILITY: Stable contact resistance no matter how harsh the environment with sealed contacts

  • NO SPECIAL MOUNTING REQUIREMENT: Light weight actuator is less impacted by gravity with no special mounting orientation requirements.

  • VARIOUS APPLICATIONS: Application includes battery switch and standby equipment, DC power control, circuit protection, etc.

  • EU ROHS DIRECTIVE (2011/65/EU) COMPLIANT

Performance Data:

MAIN CONTACT

LIFE

Contact arrangement

1 Form X (SPST-NO, DM)

30A @+450VDC (make/break)

10,000 cycles

Rated Operating Voltage

12-900VDC

30A @+750VDC (make/break)

4,000 cycles

Continuous (Carry) Current

30A*1

Mechanical life

200,000 cycles

Short term

50A (3 minutes)*2





Max short circuit current

1,250A (1/2 cycle, 60Hz) (through closed contacts)





Dielectric Withstanding Voltage

Between open contacts: 5,600Vrms/8,000Vdc





Between contact and coil: 2,200Vrms/4,000Vdc





Insulation Resistance

Terminal to Terminal/ Terminal to coil





New: Min 100 MΩ @500Vdc End of life: Min 50 MΩ @500Vdc





Voltage Drop (@30A)

≤60mV





ENVIRONMENTAL DATA

OPERATE / RELEASE TIME

Shock, 11ms ½ sine, operating

20G Peak

Close (includes bounce)

25ms, Max.

Vibration, Sine, Peak, 20G

55 - 2,000Hz

Release

10ms, Max.

Operating

Ambient Temperature



-40 to +85˚C





Noise (@100mm)

70dB(a)





Altitude

<4000m





Weight

0.28 Lb (0.13 kg)





COIL DATA

Voltage rating

12Vdc



24Vdc

Pickup voltage (25˚C)

8Vdc

18Vdc

Dropout voltage (25˚C)

1.2Vdc

2.4Vdc

Max Pickup voltage (85˚C )

9.6Vdc

19Vdc

Rated coil resistance±5% (25˚C)

25Ω

92Ω

Coil current (25˚C)

480mA

260mA

Coil watts (25˚C)

6.0W

6.0W

*1: Current is relevant to the cross-sectional area of conductor.

*2: Ambient temperature: +40˚C, 3 minutes


Pickup available at EVolve Electrics Office

Usually ready in 24 hours
