Liquid Cooling Kit - Performance

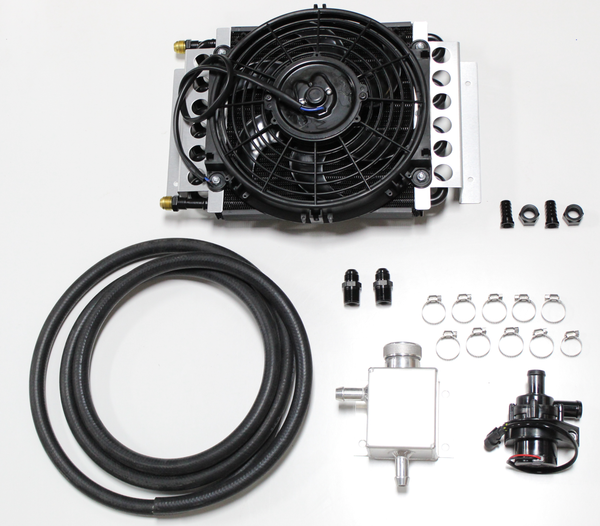

Included in the kit:
(1) 12V Electric Booster Pump
(1) Radiator

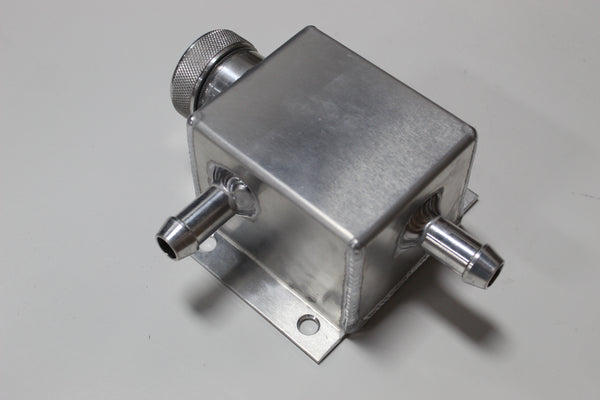

(1) Reservoir
(10) FT Heater Hose

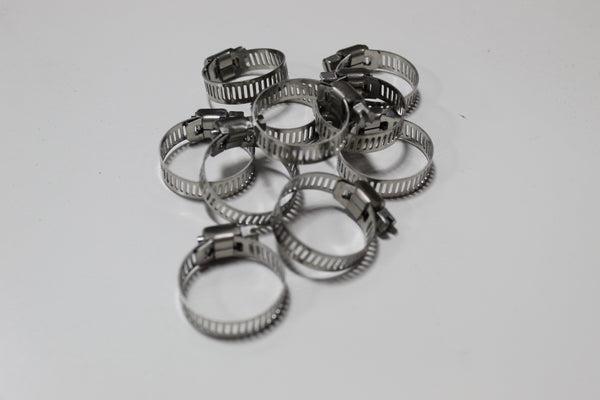

(10) Hose Clamps
(2) 3/8" Fittings

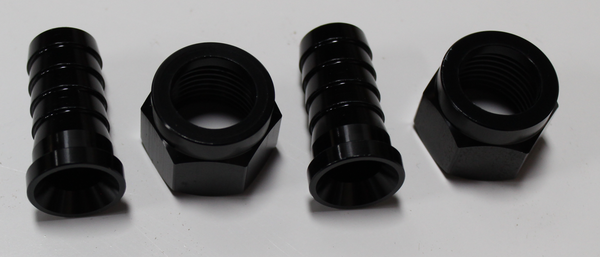

(2) -8AN to 1/2 in. hose barb adapters
Description:
Designed for applications where ruggedness and powerful cooling requirements are essential, this kit has both a professional appearance and the highest performance possible. It utilizes -8 AN fittings and hose throughout for a guaranteed leak-free system. The radiator and fan assembly is extremely easy to mount and provides large amounts of air flow to keep your system running cool.

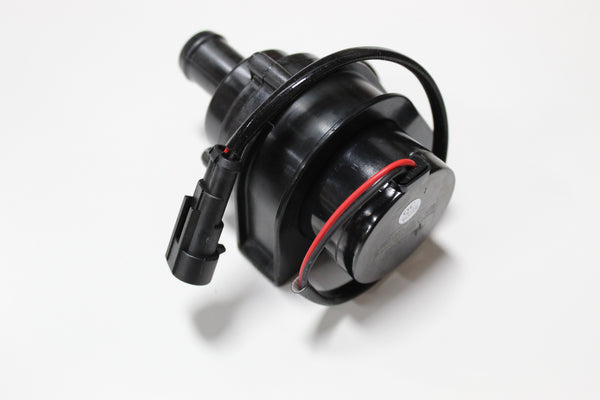

12V Electric Booster Pump
The pump is a ‘brushless’ 12 volt, high flow (23 litres / 6.08 gallons per minute), magnetically driven water pump. The motor has no brushes to ever wear out and the pump is magnetically driven by the motor, which means that no shaft sealing is required.
Technical Specifications:
| Motor | 12V Brushless |
| Operating Voltage | 9V to 15V DC |
| Max Current Draw | 1.1 Amps |
| Pump Design | Recirculating * Centrifugal |
| Drive | Magnetic - No seals |
| Operating Temperature | -10F to +248F (-40C to +120C) |
| Burst Pressure | 250Kpa (36PSI) |
| Flow Rate | 23 L/min (6 gal/min) |
| Head Pumping Pressure |
0.25 Bar/ 3.62 PSI |
| Weight |
364g (0.8 lbs) |
| Self Priming |
No |
| Max Head |
2.2M |
Radiator
This radiator combines a high-capacity oil cooler core with a Tornado 10 in. electric fan for maximum cooling in any environment. This superior combination will give you the peace of mind of knowing that your fluids will be at their prime operating temperatures. These coolers feature a core with 1/2 in. copper tubes and 3/4 in. aluminum fins with plastic edge-guard protectors, all with a durable black powder-coated finish. Each fan is solidly mounted to the cooler core with clear anodized billet aluminum brackets to ensure a stable attachment.
Technical Specifications:
| Overall Height: | 11.5 in |
| Overall Width: | 15.75 in |
| Overall Thickness: | 5 in |
| Cooler Construction: | Tube and Fin |
| Cooler Material: | Copper/ Aluminium |
| Inlet Size: | -8 AN |
| Inlet Attachment: | Male threads |
| Outlet Size: | -8 AN |
| Outlet Attachment: | Male threads |
| Fan Included: | Yes |
| Fan CFM Range: | 600-699 |
| Maximum Fan CFM: | 650 cfm |
| Fan Quantity: |
Single |
| Fan Diameter (in): | 10 in |
| Number of Cooling Rows: | 16 |
| Core Height: | 10 in |
| Core Width: | 12.375 in |
| Core Thickness: | 1.75 in |
| Cooler Finish: | Black Painted |
| Quantity: | Sold as kit |
