NetGain Micro 880™ Motor

NetGain Micro 880™ Motor & HyPer-Drive™ Controller Kit

High-Torque Compact Electric Motor for EVs, Robotics, and Industrial Power

The NetGain Micro 880™ is a compact, high-output brushless IPM electric motor system engineered for today’s most demanding electric vehicle and industrial applications. Designed with performance and protection in mind, this turnkey drive solution includes everything you need to deliver up to 103 lb-ft of torque and 32kW of peak power—all from a sealed, rugged housing rated IP65+.

Whether you're building an electric off-road vehicle, marine propulsion system, high-performance e-bike, autonomous robot, or mobile industrial machine, the Micro 880™ gives you uncompromising power in a space-saving package.

⚙️ Complete Micro 880™ System Includes:

• NetGain Micro 880™ Brushless IPM Motor (24–180V DC range)

• Matched HyPer-Drive™ Controller / Inverter

• SmartView™ Programming Software

• Low Voltage Wire Harness Kit

• High-Current Main Contactor

⚡ Technical Highlights:

• Voltage Range: 48V to 120V nominal (24V to 180V supported)

• Peak Current: Up to 900Arms

• Peak Power (S2-5min): 32kW

• Continuous Power (S2-60min): 10kW

• Max Efficiency: 95%

• Peak Torque: 103 lb-ft

• Max Speed: 7000 RPM

• Weight: 40 lbs

• Motor Dimensions: 8.19” Diameter x 6.30” Length

🛠️ Shaft Interface Options:

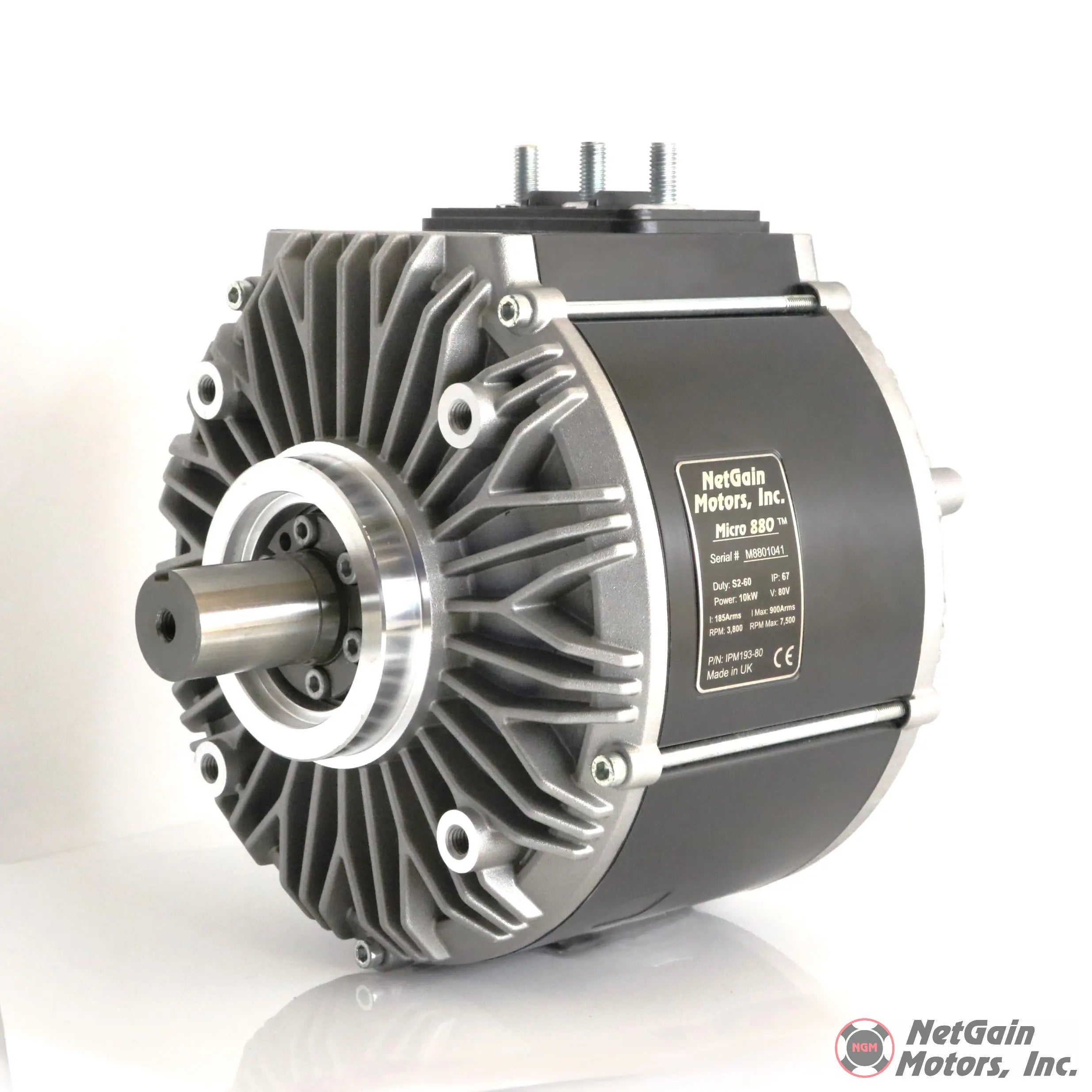

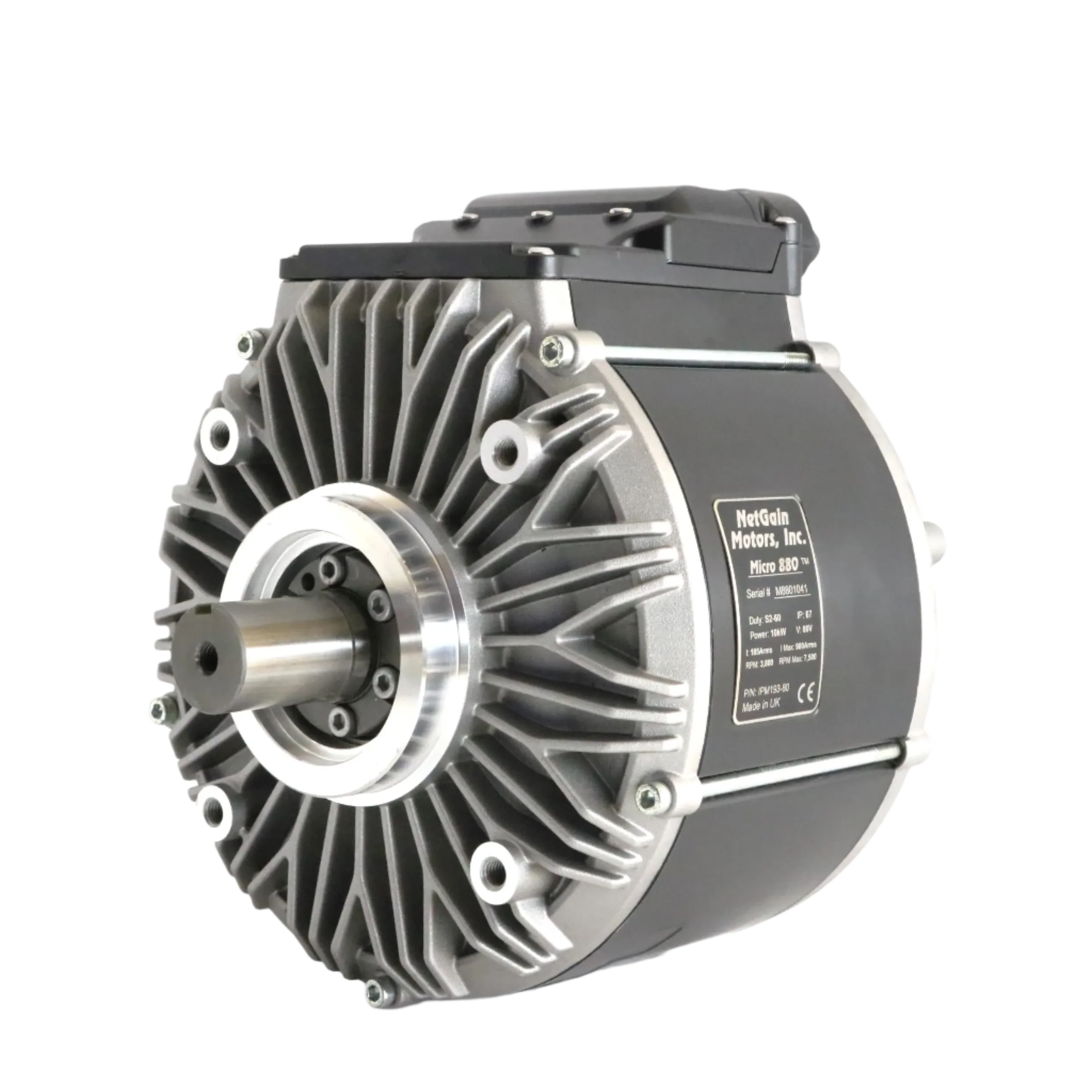

• M881 – 1.125" shaft with 0.250" keyway

• M882 – 24mm shaft with 8mm keyway

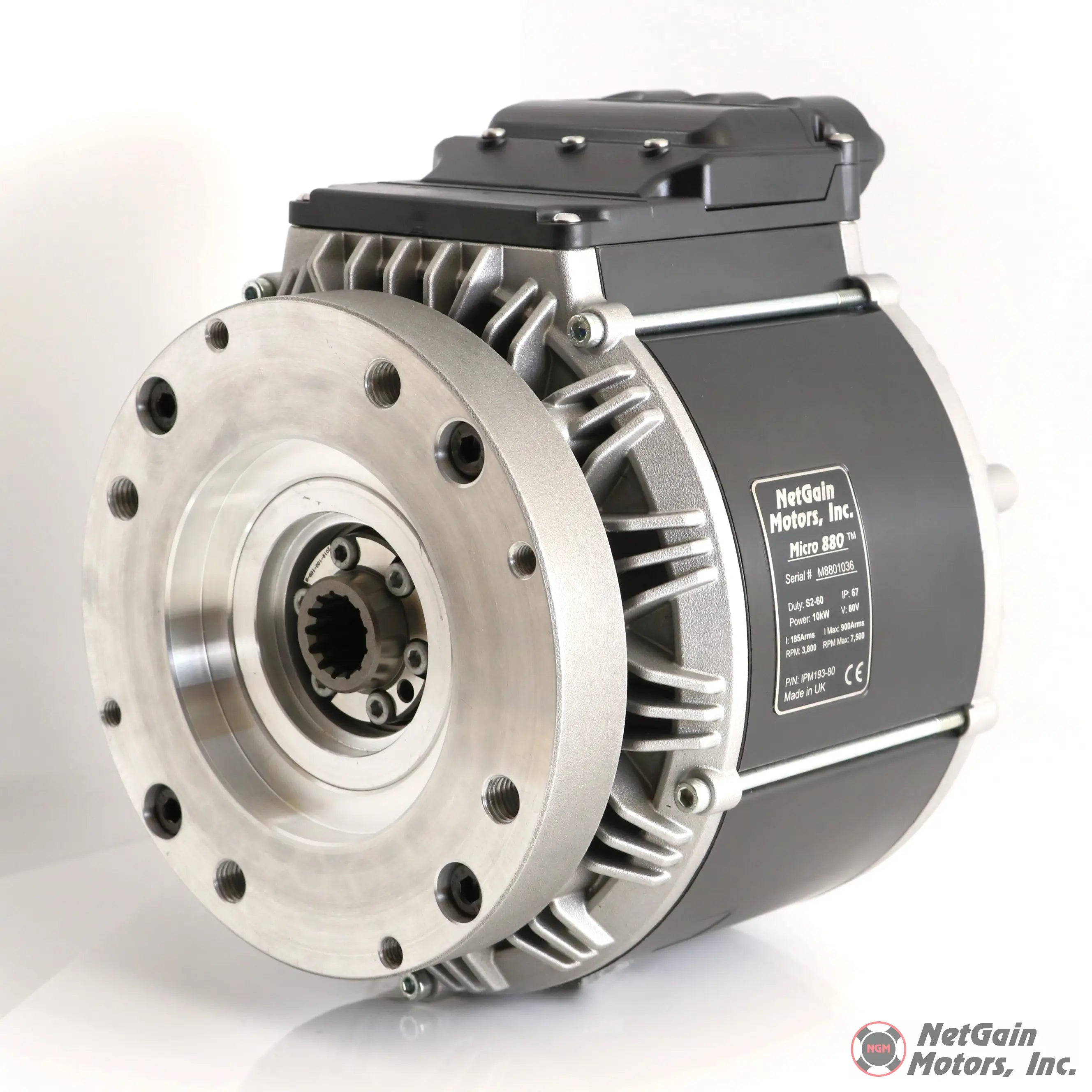

• M883 – 13T spline shaft with SAE-B adapter plate

• M884 – 19mm shaft with 6mm keyway

• M885 – 9T spline shaft with SAE-A adapter plate

• M886 – 19T spline shaft with H12/24E/30E-Axle Adapter plate

🧠 Intelligent Control:

Pair with your choice of HyPer-Drive Inverter for optimal control:

• X4860: High Torque / Low Speed

• X125: Low Torque / High Speed

• X1: Max Torque / High Speed

• X144: High Torque / Max Speed

All controllers come with:

• Field-Oriented Control (FOC) optimized for IPM motors

• SmartView™ PC Software for deep tuning and programming

• Customizable I/O for throttle, brake regen, CAN, analog/digital inputs, and more

🧱 Built for Harsh Environments

The Micro 880™ is IP65-rated by default, with the option to upgrade to IP67 or IP69K protection via shaft seal or sealed gearbox coupling—ideal for mud, saltwater, snow, dust, and industrial debris.

• "Bulletproof" potted stator construction for vibration immunity and excellent heat transfer

• Permanent magnet design offers synchronous torque without rotor slip

• Ultra-high thermal efficiency for dense, reliable performance even in continuous-use applications

Spec sheet

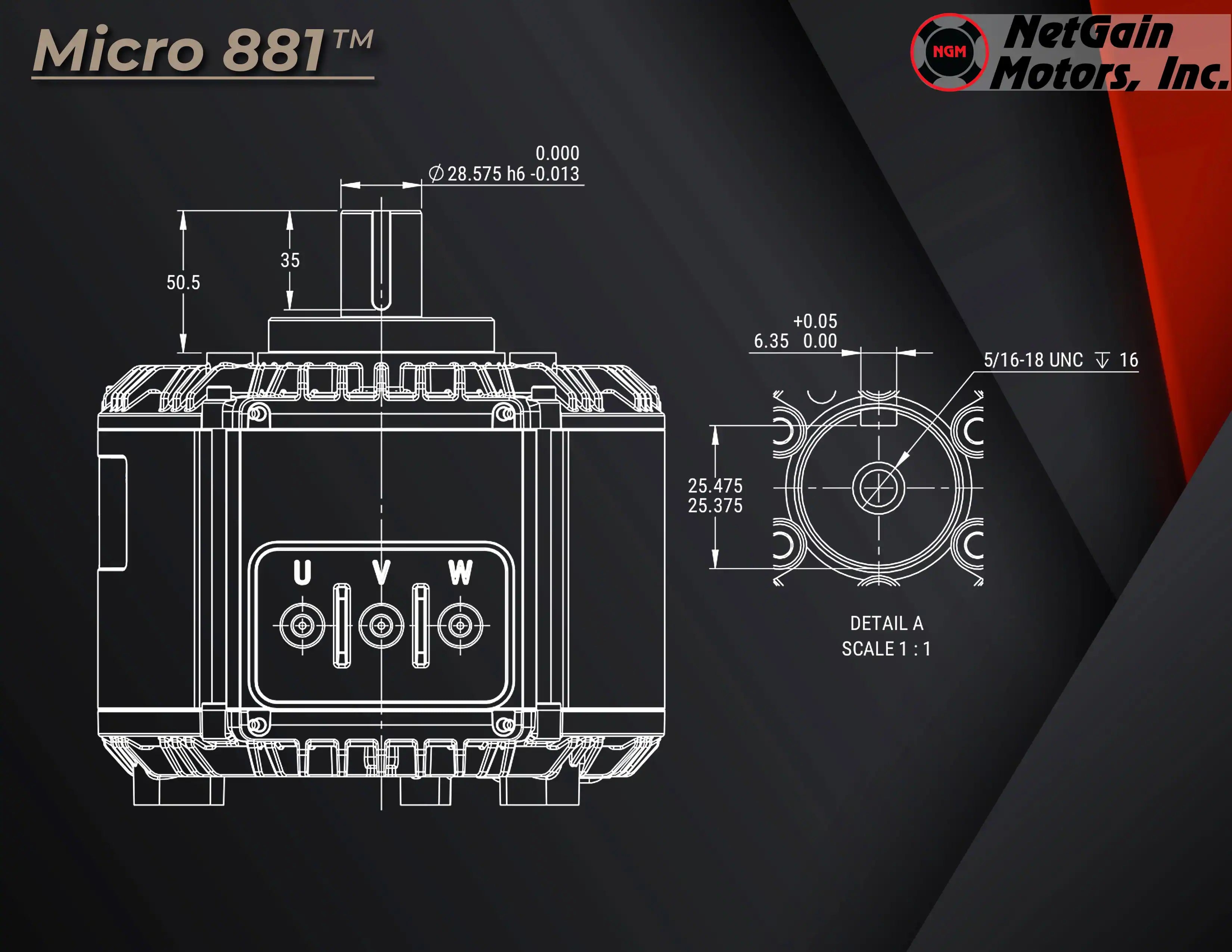

Micro 881 CAD Sheet

Micro 882 CAD Sheet

Micro 883 CAD Sheet

Micro 885 CAD Sheet

💡 Ideal For:

• Electric UTVs, ATVs, & dirt bikes

• Marine and amphibious electric craft

• Agricultural equipment and mini tractors

• Robotics and autonomous vehicle platforms

• Industrial carts, lift trucks, and mobile tools

• EV conversions for lightweight or performance vehicles

🚀 Power What Matters Most

From speed and torque to thermal stability and waterproofing, the NetGain Micro 880™ System delivers unmatched performance in its class. Available now at EVolve Electrics, where advanced electrification begins.
