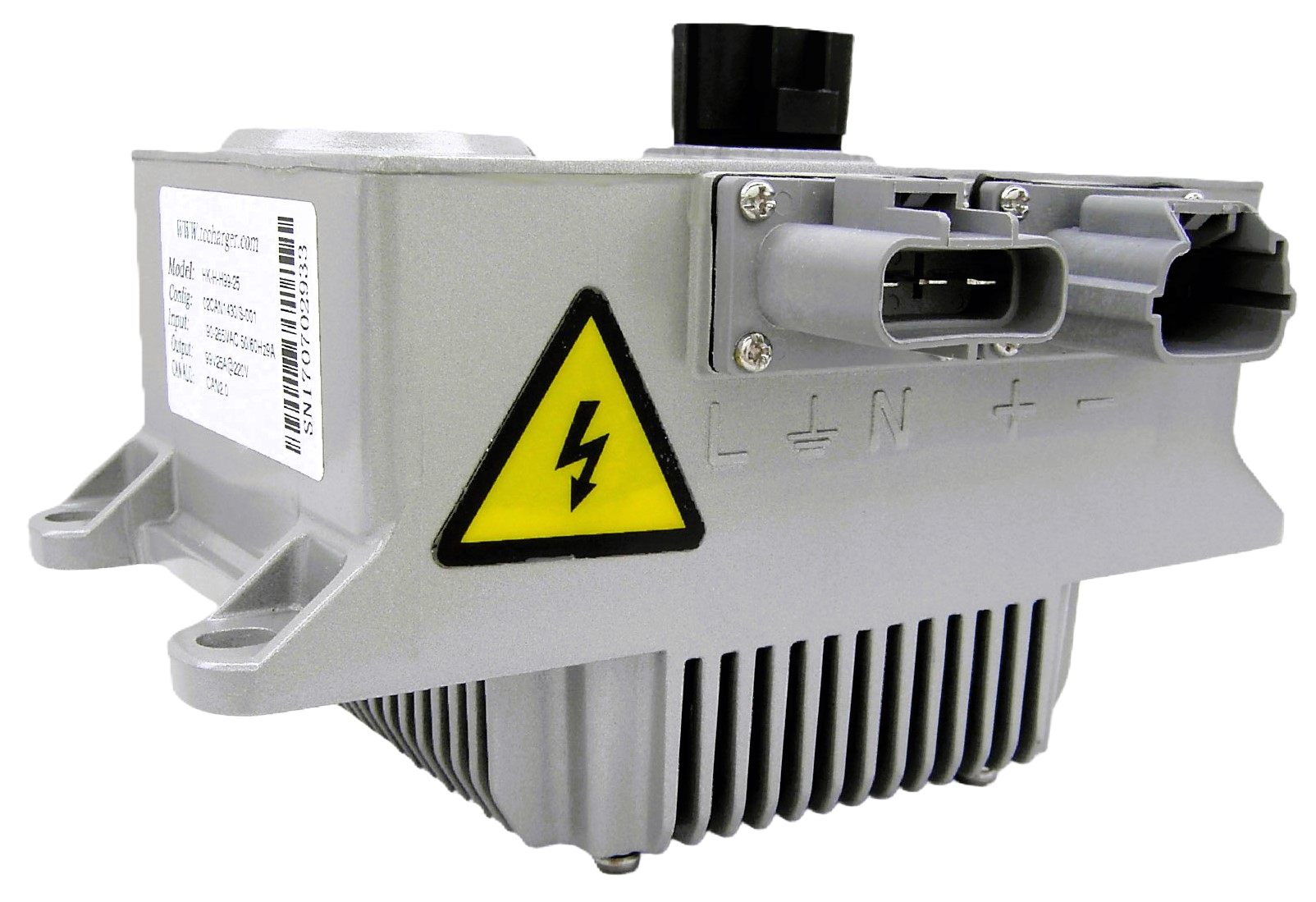

Elcon UHF 1.8 kW Charger w/ CANbus

Regular price $464.00
Unit price  per

  • Elcon UHF 1.8kW Charger Manual

    Description:


    1.8KW UHF chargers are available in the following models. The first number is the maximum voltage and the second number is the maximum current.

    HK-H-H66-25 provides 18-66VDC output

    HK-H-H99-25 provides 25-99VDC output

    HK-H-H132-16 provides 34-132VDC output

    Outline

    The HK-H series 1.8KW charger is designed for electric vehicle battery and battery management system interface. The product not only has high efficiency, small volume, high stability, long life, etc., higher degree of protection, high reliability, and other functional features, it is the ideal power source for electric vehicle charging. Charger has built-in thermal sensing device providing thermal overload protection and automatic recovery. Fully sealed encapsulation process, up to IP67 protection class, you can be sure that it will work in any complex environment with high reliability.

    Product Models

     Hardware Output Voltage Range Max Output Current  Lead Acid Battery Charger Model  Lithium Battery Charger Model
    48V25A  18-68 VDC  25A  HK-H-48-25 HK-H-H66-25
    72V25A 25-99 VDC 25A  HK-H-72-25 HK-H-H99-25
    96V16A 34-132 VDC 16A  HK-H-96-18 HK-H-H132-16


    Features

    1. Up to 95% efficiency
    2. Strong protection
    3. Extended temperature operating temperature range
    4. 100% full load burn-in test
    5. The high degree of protection up to IP67
    6. Automotive-grade seismic rating
    7. While charging the battery intelligent temperature compensation, maximizing battery life
    8. The input voltage range AC85-AC280, for worldwide voltage range

    Reliability

    Index Data Definition
    Explanation
    MTBF 150,000 H Reliability launched by the device failure rate


    Product Work Environment

     No.  Items  Technical Specifications
     1 Operating Temperature  -40℃-+60℃
     2 Storage temperature -40℃-+90℃
     3  Relative humidity 5% -95%
     4 Cooling Air-cooled
     5 Altitude 3000m


    Electrical Characteristics

    Input characteristics

    Current and output voltage of each power input

    Input Voltage  Input Current IN
    Maximum Output Power
    110V  IN≤7A 800W
    220V  IN≤9A 1800W


    Output
    Characteristics

    Test  Ratings
    Tolerance Scope
    Output Voltage Accuracy  1% /
    Output Current Accuracy  3% /
    The output voltage ripple factor  1.5%
    Maximum DC output power 1600W  /
    Maximum Efficiency ≥95% /
    Power Factor 0.99 /



    Protection Features

    a) Output overvoltage protection;

             b) Output overcurrent protection;

             c) Output short circuit protection;

    d) Input under voltage protection

             e) Charger over-temperature protection;

              f) Battery over-temperature protection。

    Features

    1. Up to 95% efficiency

    2. Strong protection

    3. Extended temperature operating temperature range

    4. 100% full load burn-in test

    5. The high degree of protection up to IP67

    6. Automotive-grade seismic rating

    7. While charging the battery intelligent temperature compensation, maximizing battery life

    8. The input voltage range is AC85-AC280, for worldwide voltage range

    Standby power charger standby power consumption of less than 5W

    Starting current charger starting current is less than5A

    Input Frequency (Frequency of input voltage fluctuation range)

    Minimum

    Typical case

    Maximum

    40Hz

    50Hz/60Hz

    70Hz



    Safety features

    Pressure resistance  (Table 8 electrical test)

    Ground Terminals (housing) Dielectric strength and are electrically connected to each other without a circuit between them. It should be able to withstand the test voltage in the table below 9,Test voltage(50~60)HzAC voltage between test terminals should not be corona, ionization, arcing or breakdown。

    Input the housing

    1500V AC

    1min

    Leakage current ≤10mA

    Input to output

    1500V AC

    1min

    Leakage current ≤10mA

    Output of the housing

    500V AC

    1min

    Leakage current ≤10mA



    Insulation resistance

    Charging machine charging circuit and ground insulation resistance (housing) between the ambient temperature (23±2) ℃And a relative humidity 80%~90%when, not less than 20MΩ。

     Contact current

    When a human or animal contacts with one or more devices or device accessible parts, the current flowing through their bodies should be less than GB/T13870.1-2008 The contact current perception threshold requirement, the current value of the charger contact Table 9。

    Contact current category

    Alternating current mA

    DC current mA

    Limit

    ≤0.75

    ≤2


    Grounding resistance of less than 0.1Ω. Required grounding conductor yellow / green and white color line

    Audio Noise (Table 10 Noise)

    Noise

    Noise

    ≤65dB

    distance 1.5m,A weight


    EMC characteristics

    Electromagnetic compatibility charger to meet the GB / T 18487.3-2001 electromagnetic environment in 11.3 test requirements。

    Lightning Level

    Lightning indicators

    standard test

    TBD


    Cooling

    Cooling fan
