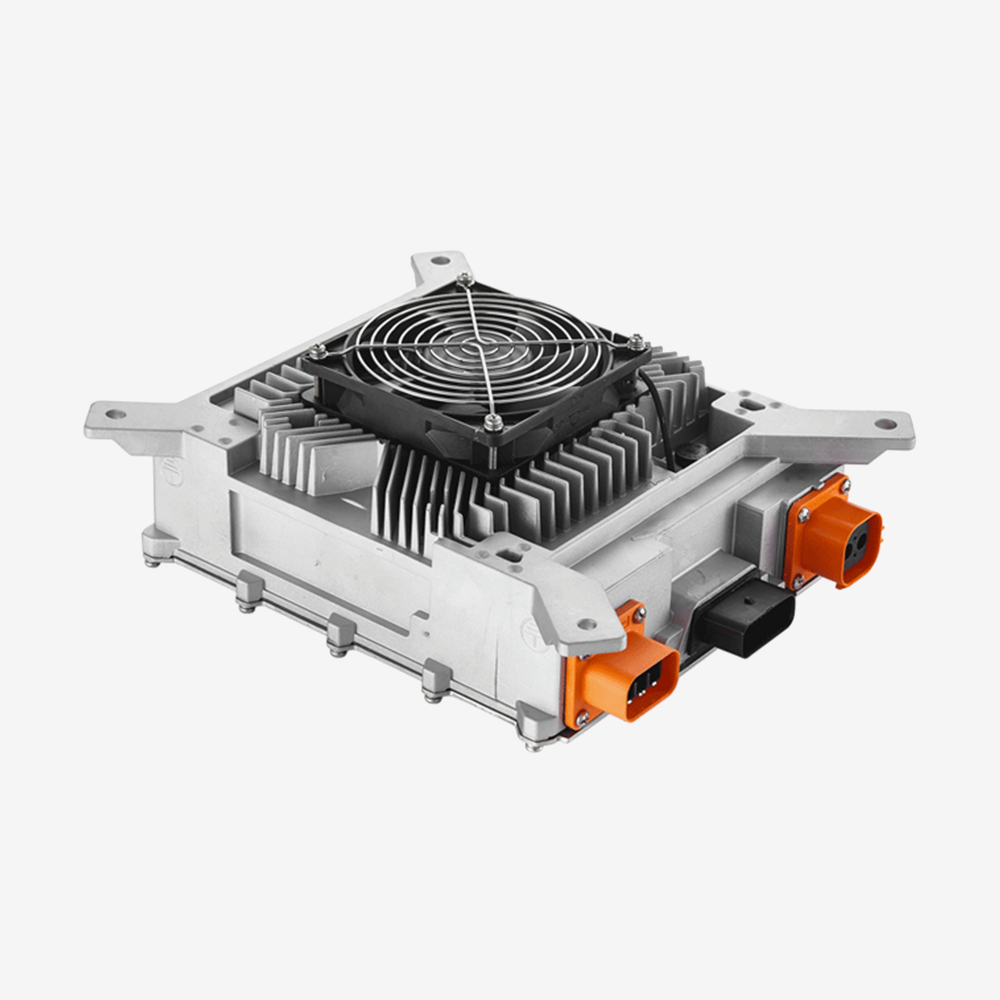

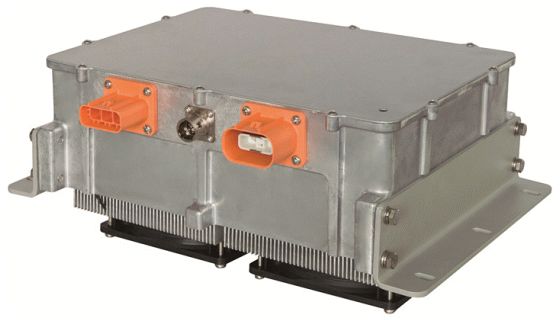

Elcon UHF 6.6 kW Charger w/CANbus

Regular price $1,747.00
Unit price  per

  • Elcon UHF 6.6kW CANbus Charger Manual

    6.6KW UHF chargers are available in the following models.  The first number is the maximum voltage and the second number is the maximum current.

    HK-J-H66-80 provides 18-66VDC output

    HK-J-H99-80 provides 25-99VDC output

    HK-J-H132-64 provides 34-132VDC output

    HK-J-H198-46 provides 50-198VDC output

    HK-J-H440-20 provides 110-440VDC output

    HK-J-H650-12 provides 170-650VDC output

    Overview:

    HK-J series 6.6kW charger was specially designed supplying the electricity for the electric vehicle's power battery, on the basis of the national standards for the charger. This product has the advantages of not only high efficiency, small size, high stability, long lifespan, but also high protection grade, and high reliability and complete protection function, etc. It's definitely an ideal charging power supply for electric vehicles. This charger has a built-in heat-sensing device and can automatically recover through the thermal protection. Fully sealed potting process and up to IP67 protection level ensures that it will not cause any trouble even in a complex environment.

    Main Feature:

    • Fully Sealed, Enforce Air Cooling (Module Optional)
    • Reliable working under -35C to +85C
    • Internal temperature Sensor
    • Shut off inside temperature over 90C
    • IP67 Protection Level
    • Working well in immersion shortly

    Essential Parameter:

     Input Current DC Output Voltage Range  Max Output Current Power Factor  Full Load Efficiency
    48V80A  18-68VDC 80A

    0.99

    93%
    72V80A  50-198VDC  80A

    0.99

    93%
    96V64A  34-132VDC  64A

    0.99

    93%
    144V46A  50-198VDC 46A

    0.99

    93%


    Features:
    Input:

     Items  Data
    AC Input Range  AC 90-265V
    Frequency  45-65Hz
    Input Current  32A
    Power Factor  0.99 Half loading
    Efficiency 93% Full loading
    Standby Consumption 10W


    Main Output:

     Items  Data
    Output Mode  CV/  CC
    Output Voltage  6600W @ 220VAC; 3300W @ 220VAC
    CV Accuracy  +/- 1%
    CC Accuracy +/- 2%
    Ripple Voltage Coefficient 5%


    Low Voltage Output:

     Output Mode CV
    Output Voltage 13.8V/ 27.6V
    CV Accuracy  +/- 1%
    CC Accuracy  +/- 2%
    Ripple Voltage Coefficient 5%


    CAN Communications:

     CAN Communication  Optional
    Baud Rate  125Kbps, 250Kbps, 500Kbps
    Terminal Resistance  NO


    Protection Feature:

     Input Over-Voltage Protection AC285+/-5V
    Input Under Voltage Protection AC85+/-5V
    Output Over-Voltage Protection  Stop the output when exceeds + 1% of the maximum output voltage
    Output Under-Voltage Protection Stop the output when below -5% of the minimum output voltage
    Output Over-Current Protection Stop the output when exceeds + 1% of the maximum output current
    Over-Temperature Protection  Power down from 85°C and shut off at 90C
    Short-circuit Protection Stop Output
    Battery Reverse Connect Protection  Fuse Burned-out
    Ground Protection 100
    CAN communication Protection Automatically stop the output when CAN communication fails
    Power-off Protection YES


    Safety and others:

     Withstand Voltage

    Input to Output: 2000VAC≤10mA

    Input to Ground: 2000VAC≤12mA

    Output to Ground: 2000VAC≤10mA, all 1 min

    Insulation Resistance

    Input, Output, signal terminal to casing≥10mΩ

    Testing Voltage 1000VDC

    Electromagnetic Immunity

    GB/T 18487 3-2001 11.3.1

    Electromagnetic Abusive

    GB/T 18487 3-2001 11.3.2

    Harmonic Current

    GB 17625 1-2003 6.7.1.1

    Inrush Starting Current

    ≤24A

    Current-rise Time

    ≤5S, Overshoot ≤5%

    Close response Time

    100% 10%≤50mS, 100% 0%≤200mS

    Anti-Vibration

    10-25Hz Amplitude 1.2mm, 25-500Hz 30ms2, 8hrs per direction

    Noise

    ≤60dB(A)

    MTBF

    150000H

    Work Environment

    Relative Temp 5%-95% No condensation

    Working Temperature

    -35°C - +85°C

    Storage Temperature

    -55°C - +100°C
