Lithium Block™ Busbar
Lithium Block™ Busbar

Vendor:EVolve Battery Systems

Lithium Block™ Busbar

Lithium Block Busbar
Lithium Block Busbar: 2-Hole
In stock, ready to ship
$5.25
Shipping calculated at checkout.

Lithium Block™ Busbar

Electroless nickel-plated aluminum busbars for series and parallel interconnection of Lithium Block™ modules. Available in 2-hole (series) and 4-hole (parallel) configurations — includes M6 hardware and Belleville washers for secure, repeatable connections.

  • EN Plated Aluminum
  • 2-Hole & 4-Hole
  • M6 Hardware Included
  • Made in USA

Choose your configuration

2-Hole Busbar

Standard inter-module series connection. Links two adjacent Lithium Block™ modules (positive terminal → negative terminal) in a single-row stack. One busbar per module-to-module junction.

  • Most common configuration
  • Used with the Bracket System rows
  • Compatible with Busbar Covers

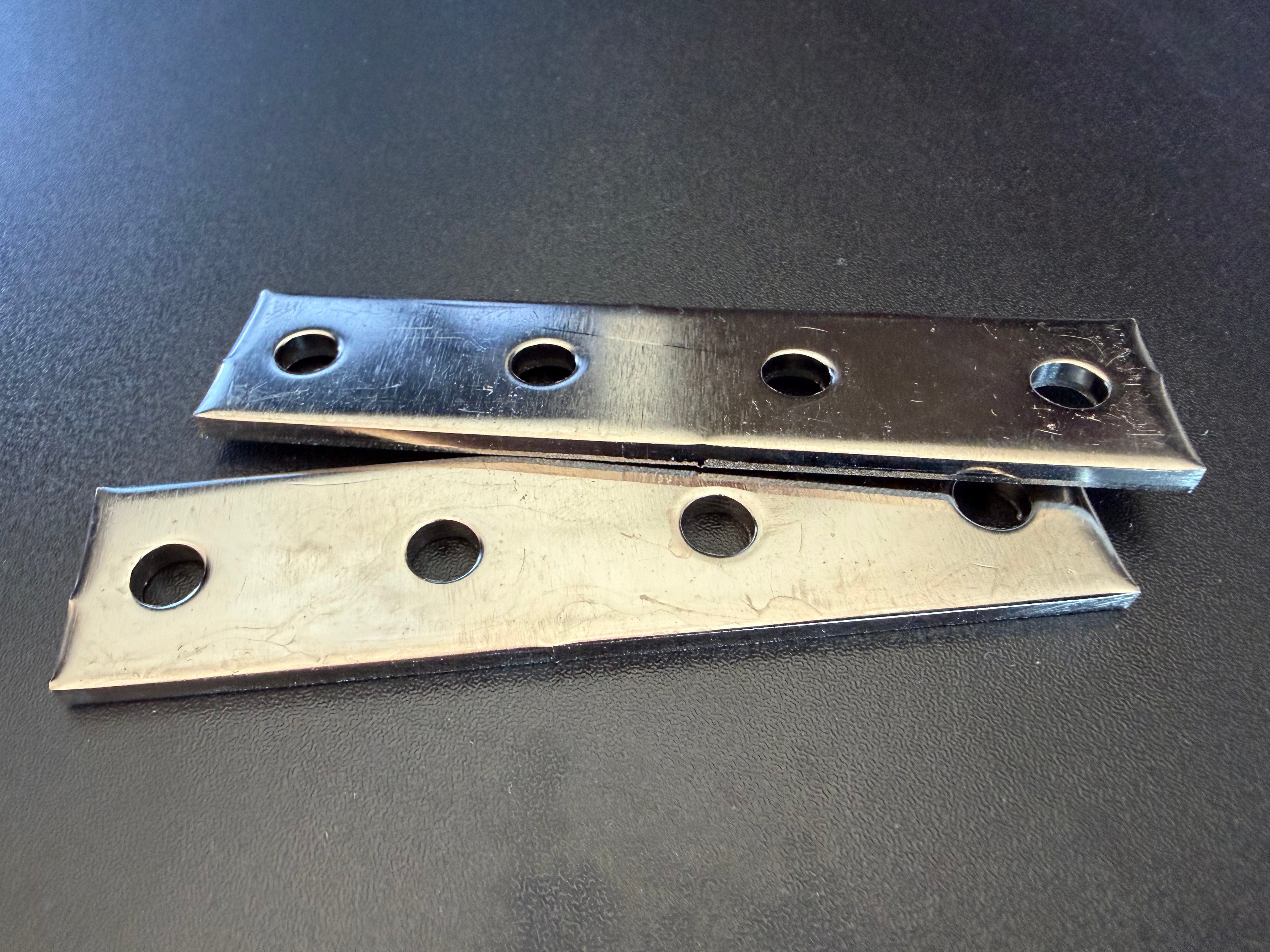

4-Hole Busbar

Parallel connection busbar designed to join four Lithium Block™ modules in parallel. Four M6 bolt positions tie together the same-polarity terminals of four modules to build higher-capacity parallel groups before series stringing.

  • Connects 4 modules in parallel
  • Higher capacity parallel groups
  • Compatible with Busbar Covers

Why electroless nickel-plated aluminum?

Bare aluminum forms an oxide layer that increases contact resistance over time — a problem for high-current battery interconnects. The electroless nickel (EN) plating on each Lithium Block™ busbar solves this:

  • Corrosion resistance — EN creates a uniform, pore-free barrier against oxidation, even in humid or marine environments.
  • Low, stable contact resistance — nickel surface maintains consistent conductivity across M6 bolt joints over the life of the pack.
  • Lightweight vs. copper — aluminum substrate keeps busbar mass low without sacrificing current-carrying capacity at Lithium Block™ operating currents.
  • Belleville washers maintain preload — included spring washers compensate for thermal cycling and vibration to prevent joint loosening.

Specifications

Substrate

Aluminum

Plating

Electroless Nickel (EN)

Hardware

M6 bolts & Belleville washers
Included with each busbar

Variants

2-Hole — series (module-to-module)
4-Hole — parallel (4 modules)

Compatibility

Lithium Block™ GEN 2 & GEN 1 modules
All parallel configs: 5P–10P

Built In

EVolve Battery Systems
Boulder, Colorado, USA 🇺🇸

What's included

  • (1) EN-plated aluminum busbar — 2-hole or 4-hole per selected variant.
  • M6 mounting hardware — bolts sized for Lithium Block™ busbar inserts.
  • Belleville washers — spring washers to maintain bolt preload through thermal cycling and vibration.
💡 Tip: The Lithium Block™ Bracket System includes 2-hole busbars and hardware for complete rows. If you're ordering the Bracket System, you only need standalone busbars for custom routing or additional series junctions.

Pairs well with

Module Lithium Block™ GEN 2 Module Cover Lithium Block™ Busbar Cover Bracket Lithium Block™ Mounting System
⚠️ Don't forget your Busbar Covers. Every busbar connection should be covered for touch-safe operation. Order one Busbar Cover per busbar in your series string.

FAQs

When do I use the 2-hole vs. 4-hole busbar?

The 2-hole busbar is for series connections — it links two adjacent modules (positive terminal → negative terminal) in a row. The 4-hole busbar is for parallel connections — it ties together the same-polarity terminals of four Lithium Block™ modules to build a higher-capacity parallel group before series stringing.

Why electroless nickel instead of tin or bare aluminum?

Electroless nickel provides superior corrosion resistance and lower, more stable contact resistance than bare aluminum or tin plating. The uniform, autocatalytic deposition covers all surfaces evenly — including inside bolt holes — for consistent electrical performance across the full joint.

Do I need busbars if I'm buying the Bracket System?

The Bracket System includes 2-hole busbars for complete rows. You only need to order standalone busbars if you require additional series junctions, 4-hole variants, or custom routing beyond the standard row layout.

What torque spec should I use?

Follow the torque specification in the Lithium Block™ Manual for M6 busbar connections. The Belleville washers are sized to maintain preload within that spec range through thermal cycling.

Are these compatible with both GEN 1 and GEN 2 modules?

Yes. The busbar bolt pattern and insert geometry is shared across GEN 1 and GEN 2 Lithium Block™ modules in all parallel configurations (5P–10P).
