Lithium Block Busbar Cover Black
Lithium Block™ Busbar Covers
Lithium Block™ Busbar Covers

Vendor:EVolve Battery Systems

Lithium Block™ Busbar Covers

$3.75
Shipping calculated at checkout.

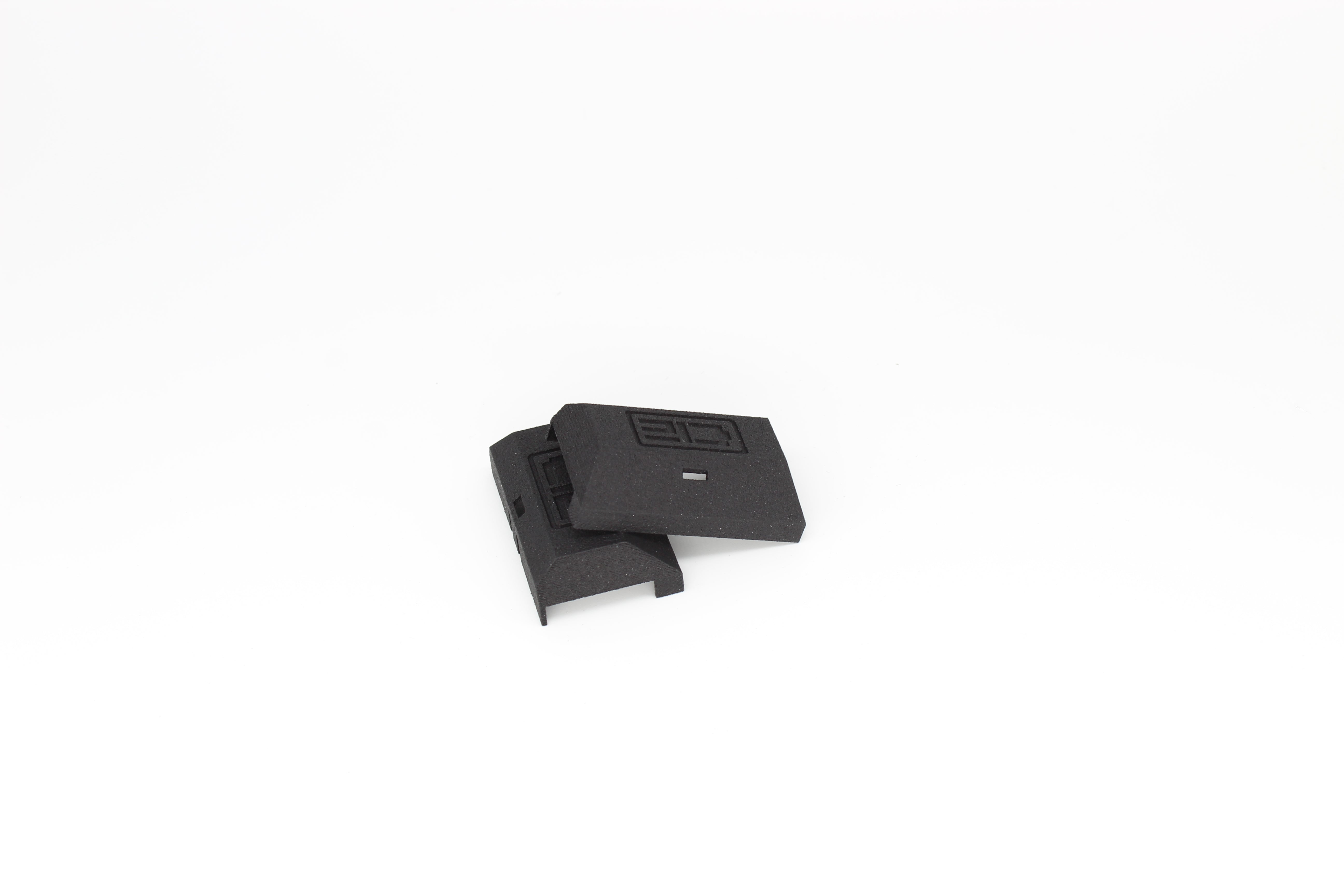

Lithium Block™ Busbar Cover

Snap-lock insulating cover for touch-safe busbar connections between Lithium Block™ modules. 3D printed from fire-retardant, glass-filled ABS — compatible with all 5P–10P configurations.

  • UL94-V0 Rated
  • Snap-Lock
  • No Tools Required
  • Made in USA

Why every busbar needs a cover

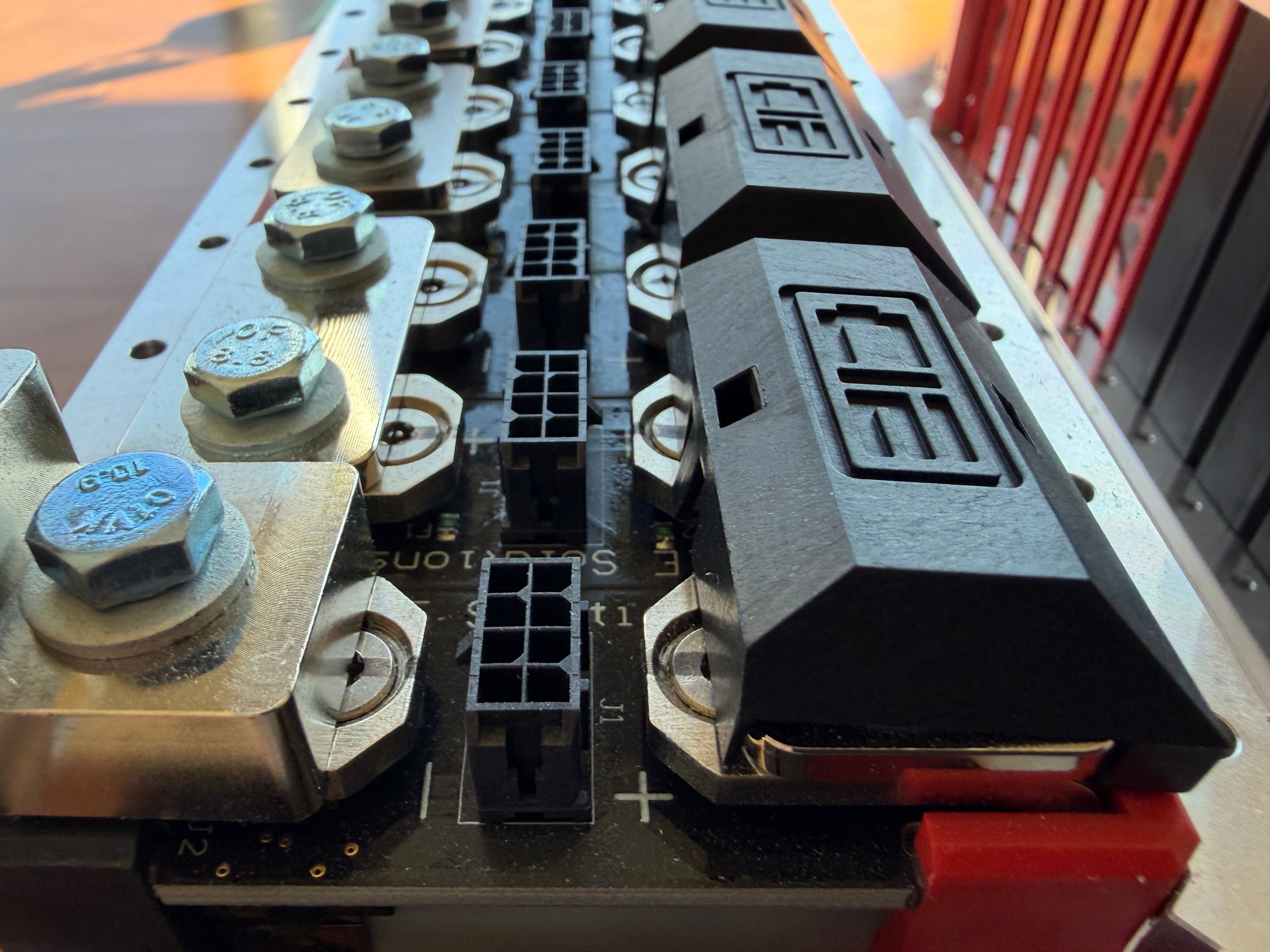

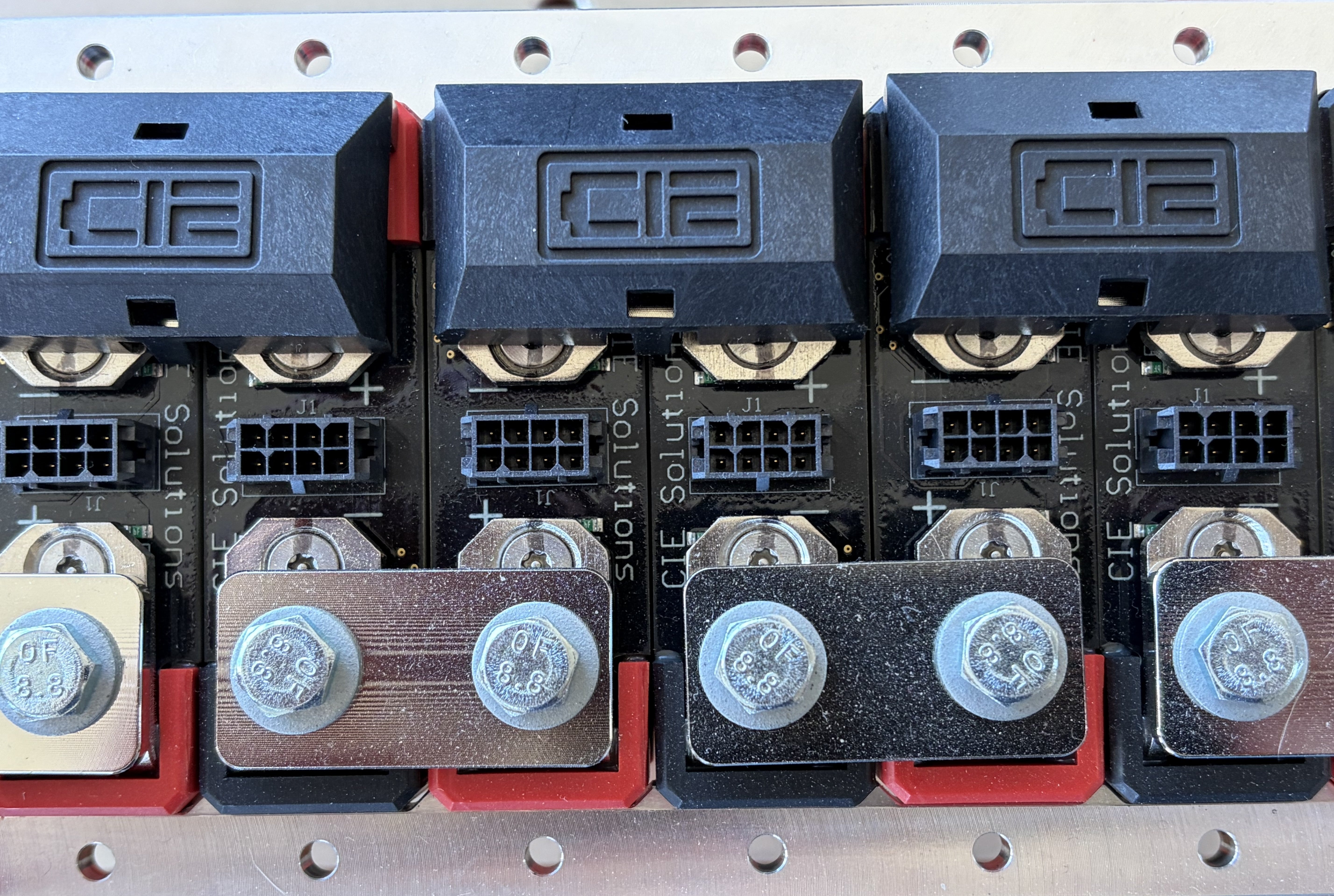

Exposed busbars between series-connected Lithium Block™ modules create live conductor contact risk during assembly, service, and operation. The Busbar Cover eliminates that risk with a single snap-on part — no fasteners, no adhesive, no extra BOM lines.

  • Touch-safe operation — fully insulates the busbar connection surface between adjacent modules.
  • Fire-retardant construction — glass-filled ABS rated to UL94-V0, engineered to resist ignition and self-extinguish.
  • Snap-lock geometry — clips directly onto installed Busbars with interconnecting retention across the full span.
  • Universal compatibility — fits all Lithium Block™ GEN 1 & Lithium Block™ GEN 2 parallel configurations (5P–10P).

Specifications

Material

Fire-Retardant Glass-Filled ABS
UL94-V0

Manufacturing

Injection Molded
EVolve Battery Systems - Boulder, CO

Compatibility

Lithium Block™ Busbar
All parallel configs: 5P–10P

Installation

Snap-lock retention
No fasteners or tools required

Pairs well with

Module Lithium Block™ GEN 1 & 2 Module Busbar Lithium Block™ Busbars Bracket Lithium Block™ Mounting System
⚠️ Ordering note: Order one busbar cover per single series/parallel connection. Every exposed busbar connection should be covered for safe, touch-proof operation. Building a full pack? Don't forget the Busbars and Mounting System.

FAQs

Does the busbar cover fit both GEN 1 and GEN 2 modules?

The busbar cover is designed for the Lithium Block™ Busbar geometry shared across module generations. Check the product images to confirm fitment with your specific build.  These are universally compatible with both GEN 1 and GEN 2 modules.

How many covers do I need?

One cover per busbar. If you have 12 modules connected in series with 11 busbars between them, you need 11 covers.

Can the covers be removed and reinstalled?

Yes. The snap-lock design allows the covers to be removed for service access and snapped back into place — no consumable fasteners or adhesive.

What does UL94-V0 mean?

UL94-V0 is a flammability rating indicating the material will self-extinguish within 10 seconds of a flame being removed, with no flaming drips. It's the highest V-rating in the UL94 vertical burn classification.
