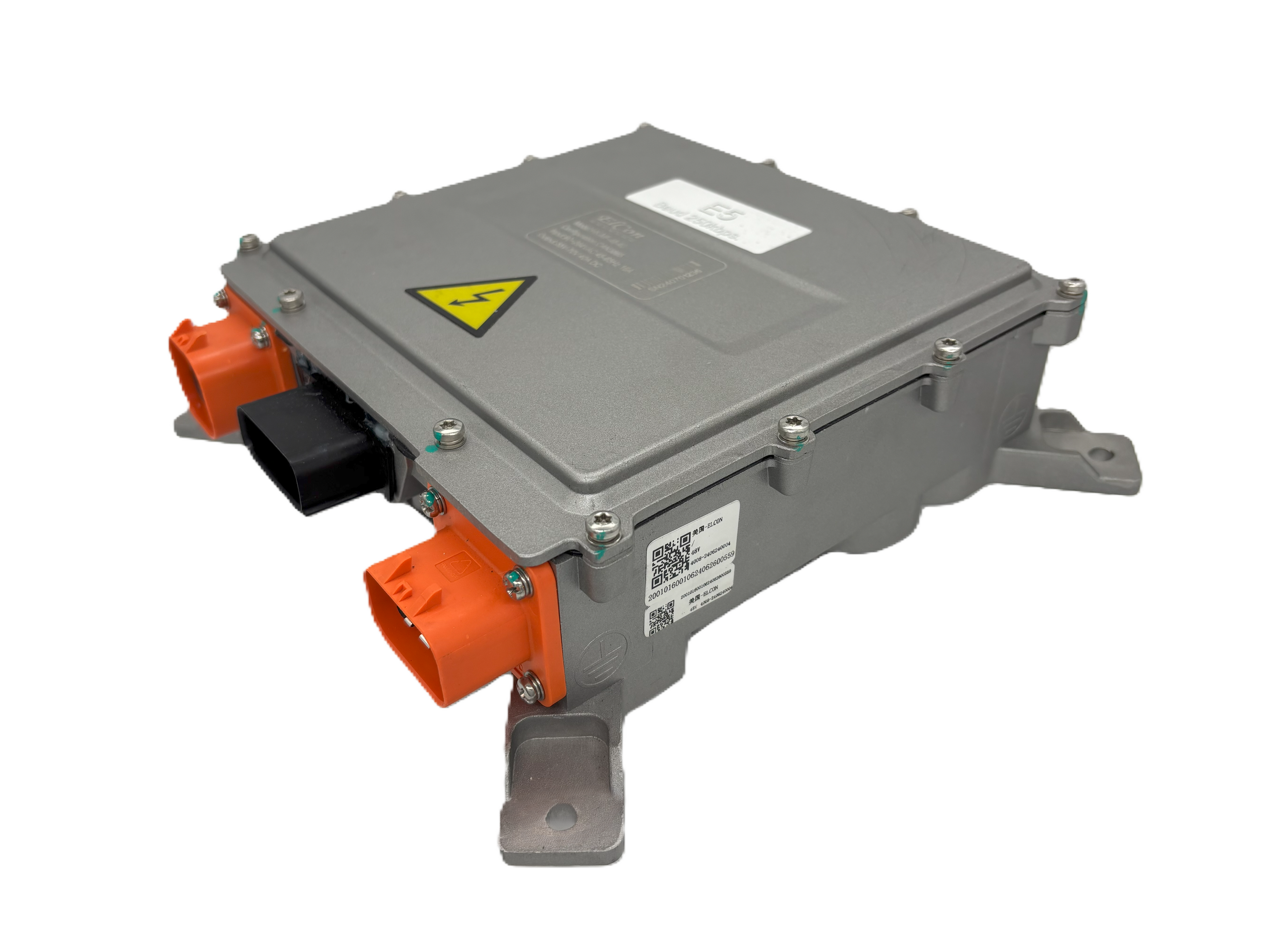

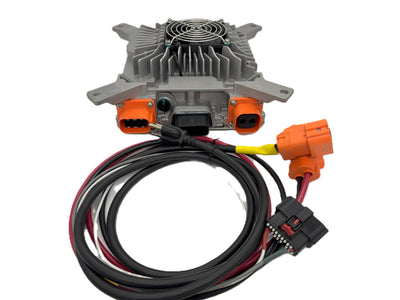

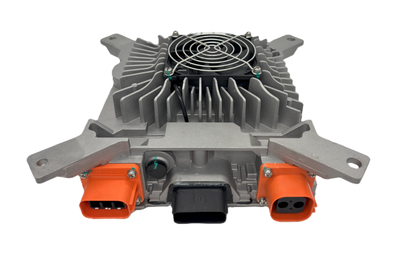

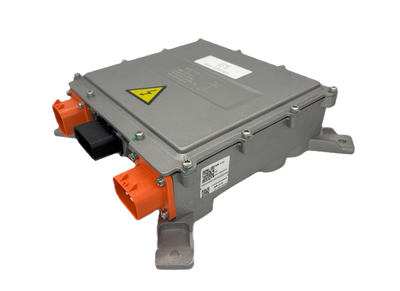

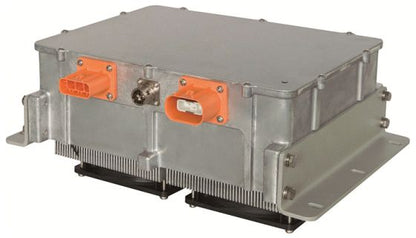

Elcon UHF 3.3 kW Charger w/ CANbus

$870.00

  • HK-J-H66-40 Manual
    HK-J-H99-40 Manual
    HK-J-H132-32 Manual
    HK-J-H198-23 Manual
    HK-J-H440-10 Manual
    HK-J-H650-6 Manual

    Description

    3.3KW UHF chargers are available in the following models.  The first number is the maximum voltage and the second number is the maximum current.

    HK-J-H66-40 provides 18-66VDC output

    HK-J-H99-40 provides 25-99VDC output

    HK-J-H132-32 provides 34-132VDC output

    HK-J-H198-23 provides 50-198VDC output

    HK-J-H440-10 provides 110-440VDC output

    HK-J-H650-06 provides 170-650VDC output

    The HK-J series 3.3KW charger is designed for electric vehicle battery and battery management system interface. The product not only has high efficiency, small size, high stability, long life and other advantages, but also has a high degree of protection, highly reliable, full-featured protection and other features. The ideal power source for charging electric vehicles. Built-in thermal sensing device gives thermal overload protection that is automatically reset when cooled. Fully sealed encapsulation process, up to IP67 protection class, you can employ in any difficult environment without causing failure.

    Main features
    Full casting process, air-cooled or water-cooled, can work reliably under conditions -40- + 60 degrees.

    Weight
    8.9 lbs (3.9kg) without heatsink or fan.

    Specifications

    Models

    HK-J-H 99-40, 132-32, 198-23, 440-10

    I

    N

    P

    U

    T

    Input Voltage

    AC 85~265V

    Frequency

    45-65Hz

    Input Current

    16A

    Power Factor

    ≥0.99 at over half power

    Efficiency

    ≥94%  at full power

    Idle Power

    ≤5W

    O

    U

    T

    P

    U

    T

    Output

    CV / CC

    Output Ranges

    25-99V, 33-132V, 50-198V, 110-440V

    Output current Limits

    Maximum 40A, 32A, 23A, 10A

    Output Power

    3300W @220vac or 1600W@110VAC

    Voltage Accuracy

    ±1%

    Current Accuracy

    ±2%

    Ripple voltage

    5%



    A

    U

    X.



    O

    U

    T

    P

    U

    T



    12V Power Supply

    Output Voltage

    12.5V

    Current Rating

    5A

    Current Accuracy

    ±2%

    Max. Current

    5.5A±0.5A

    Output  Power

    ≥62.5W

    Ripple Voltage

    1%



    P

    R

    O

    T

    E

    C

    T

    I

    O

    N



    Input Overvoltage

    AC270±5V

    Input Under-voltage

    AC80±5V

    Output Overvoltage

    1% over max voltage limit stops output

    Output Under-voltage

    5% below minimum voltage stops output

    Output Overcurrent

    1% over max. output current stops output

    Over Temp. Protection

    85deg C starts reduced power, over 90deg stops output

    Short Circuit  Protection

    Output stops

    Reverse battery protection

    Blown Fuse

    Ground Protection

    ≤0.1milliohms

    CAN Com. Protection

    Communication failure stops output



    C

    O

    M

    CAN Communications

    CAN IDs E5, E7, E8 and E9

    Baud Rate  options

    125Kbps, 250Kbpsm, 500Kbps

    Terminating resistor

    Not included



    S

    A

    F

    E

    T

    Y

    Galvanic Isolation

    Input to output: 2000VAC≤10mA input to ground: 2000VAC≤10mA
    Output to ground: 2000VAC≤10mA, are 1min

    Insulation Rating

    Input to output, the signal end of the housing ≥10M Europe, the test voltage 1000VDC

    Electromagnetic Immunity

    Meet GB / T 18487.3-2001 11.3.1 Article

    Electromagnetic noise

    Meet GB / T 18487.3-2001 11.3.2 Article

    Harmonic Current

    Meet GB 17625.1-2003 6.7.1.1 Article

    Inrush Current

    ≤6A

    Current Rise Time

    ≤5S, overshoot ≤5%

    Stop  response time

    100% to 10% ≤50mS, 100% to 0% ≤200mS

    Protection Class

    IP67

    Vibration Resistance

    10-25Hz amplitude of 1.2mm, 25-500Hz 30m / s2, 8 hours a direction

    Noise

    ≤60dB

    MTBF

    150000H

    Working Environment

    Relative humidity 5% -95% non-condensing

    Operating Temperature

    -40 ~ 60℃

    Storage temperature

    －55℃~ ＋85℃

    Over-temperature protection

    Stops when over 90deg C, resumes operating when cooled.
